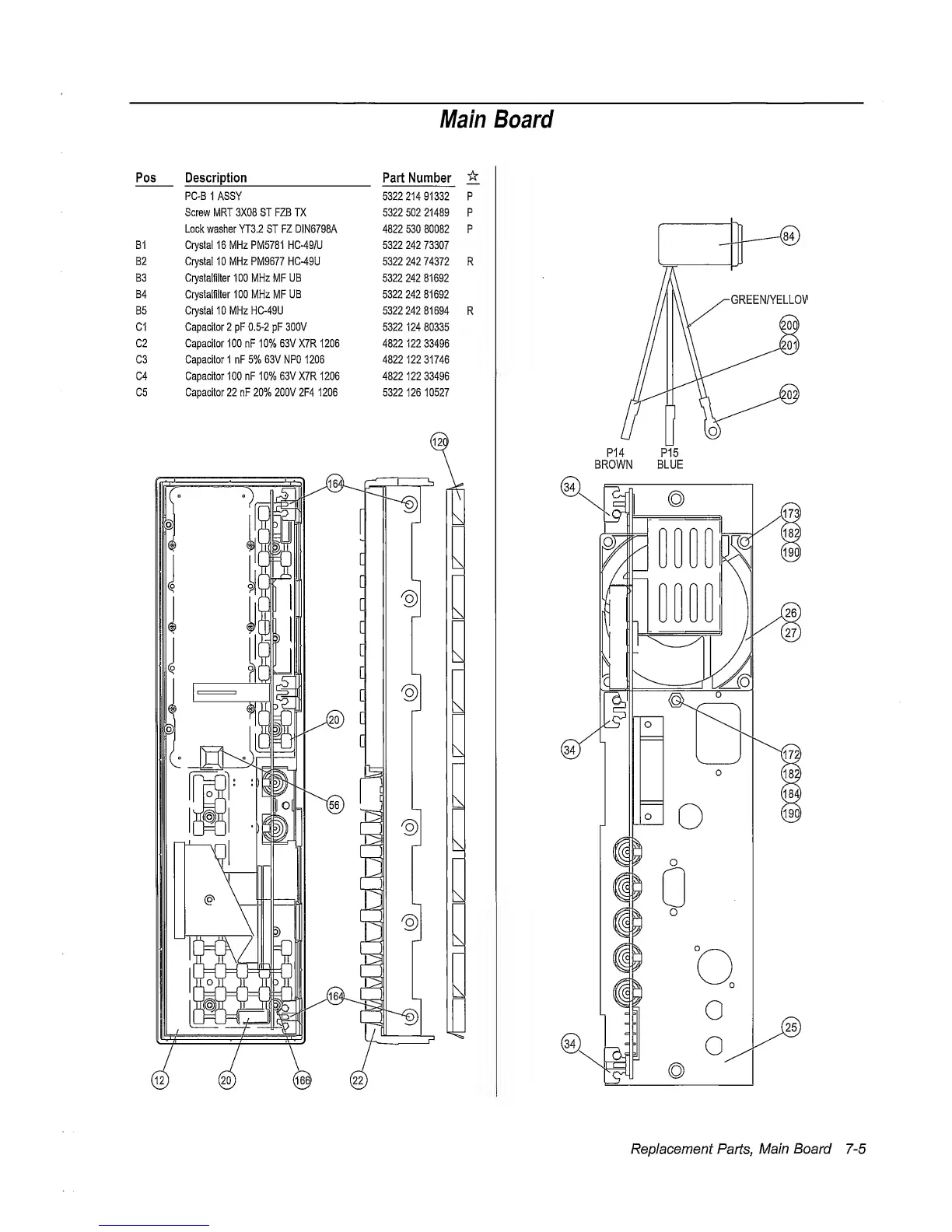

Mam Board
Pos
Description
Part Number
PC-B
1
ASSY
5322 214 91332
Screw MRT3X08 ST FZBTX 5322 502 21489
Lock
washer YT3.2 ST FZ
DIN6798A
4822 530 80082
B1 Crystal 16 MHz PM5781 HC-49/U 5322
242 73307
B2
Crystal 10
MHz
PM9677
HC-49U
5322 242 74372
B3
Crystalfilter 100 MHz
MF
UB
5322 242 81692
B4
Crystalfilter 100 MHz
MF
UB
5322 242 81692
B5 CrystaMOMHz HC-49U 5322 242
81694
C1
Capacitor
2
pF
0.5-2
pF 300V 5322 124 80335
C2 Capacitor
100
nF 10%
63V
X7R
1206
4822 122 33496
C3 Capacitor 1 nF
5%
63V NPO 1206 4822 122
31746
C4
Capacitor
100 nF
10%
63V X7R 1206 4822 122 33496
C5 Capacitor 22 nF
20%
200V 2F4 1206 5322
126 10527
GREEN/YELLOV
P14 P15
BROWN
BLUE
Replacement
Parts,
Main
Board
