Fluke VisiFault Visual Fault Locator User Manual

FT25/35 Instruction Sheet 8/16/2004
English Page
3 of 6
Panel Size: 4-1/8" x 7"
Continuity check/
tracing fibers
Microbend or
broken fiber
Bad splice
Sharp
bend
Broken fiber
in connector
V
ISU
A
L F
A
U
LT
LO
C
A
T
O
R
V
IS
I
F
A
U
LT
C
LA
S
S
II LA
S
E
R
F
LA
S
H
1
3
2
4
awx01f.eps

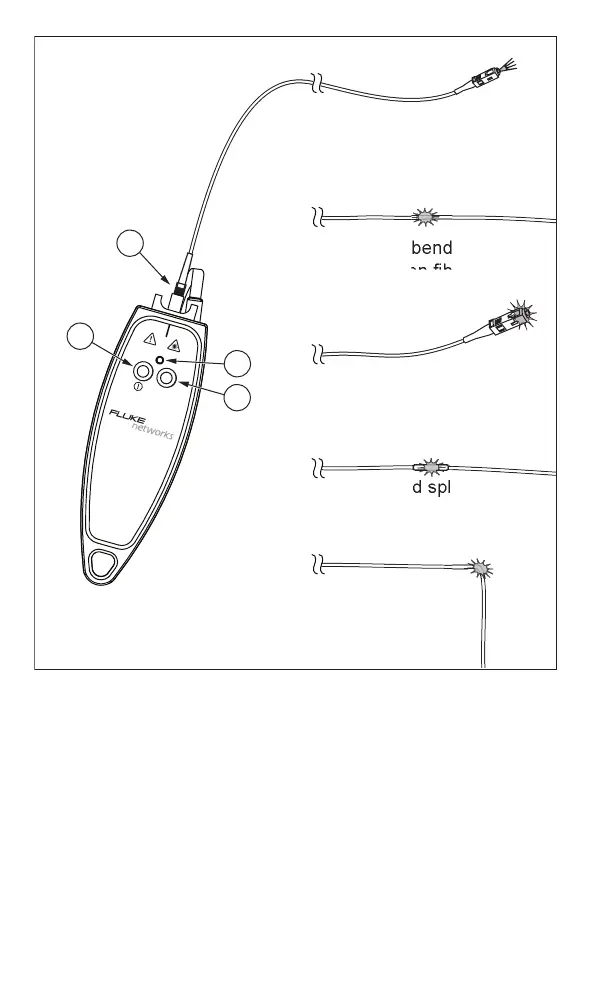

Figure 1. Using the Visual Fault Locator

Fluke VisiFault Visual Fault Locator Specifications

General

Brand	Fluke
Model	VisiFault Visual Fault Locator
Category	Test Equipment
Language	English
