Remove the screw on the handle of the back lid
and open the lid to access the laser tube.

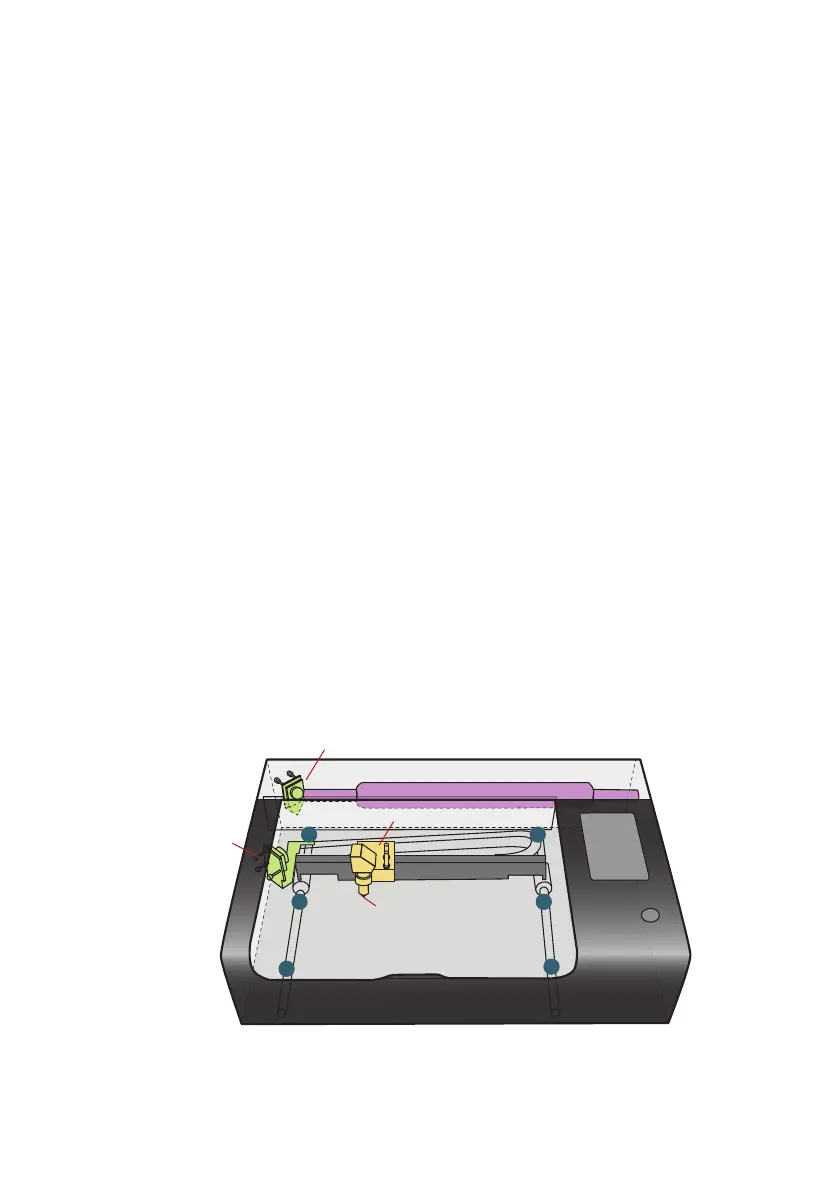

There are three sets of reflecting mirrors and one set
of focusing lens in Beambox.
The first reflecting mirror is located on the left side of
the laser tube when facing the front of the machine.
The second reflecting mirror is located on the carriage
of the guiding rod on the left side when facing the
front of the machine.
The third reflecting mirror is located on the rail of the
X-axis.
The focusing lens are located inside the lens holder
beneath the third mirror.
First Reflecting Mirror
Second Reflecting
Mirror
Third Reflecting Mirror
Focusing Lens
Top-left
Mid-left
Bottom-left
Top-right
Mid-right
Bottom-right
