66

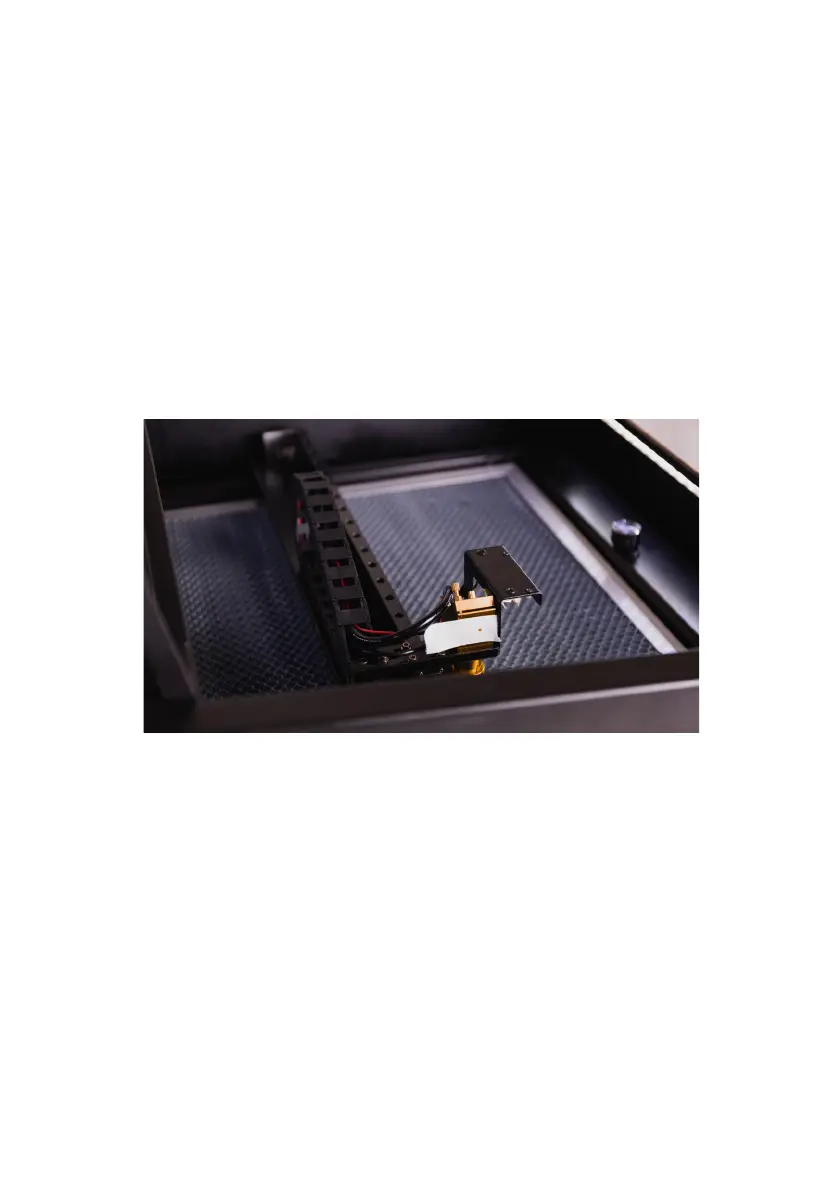

Move the laser head to the mid-left spot
manually. Close the door and press "Laser Pulse".
Open the door and check the location of the
dot. This dot shot from the middle-left corner is the
reference point when adjusting the mirror. The shot
made on other locations should be adjusted to move
toward the reference point.
Move the laser head to the middle-right spot
manually. Close the door and press "Laser Pulse".
Open the door and check if the second dot is
overlapping with the first one on the same position. If
not, adjust the screws behind the second mirror.
