Flux Beambox Pro User Manual

68
󱦹

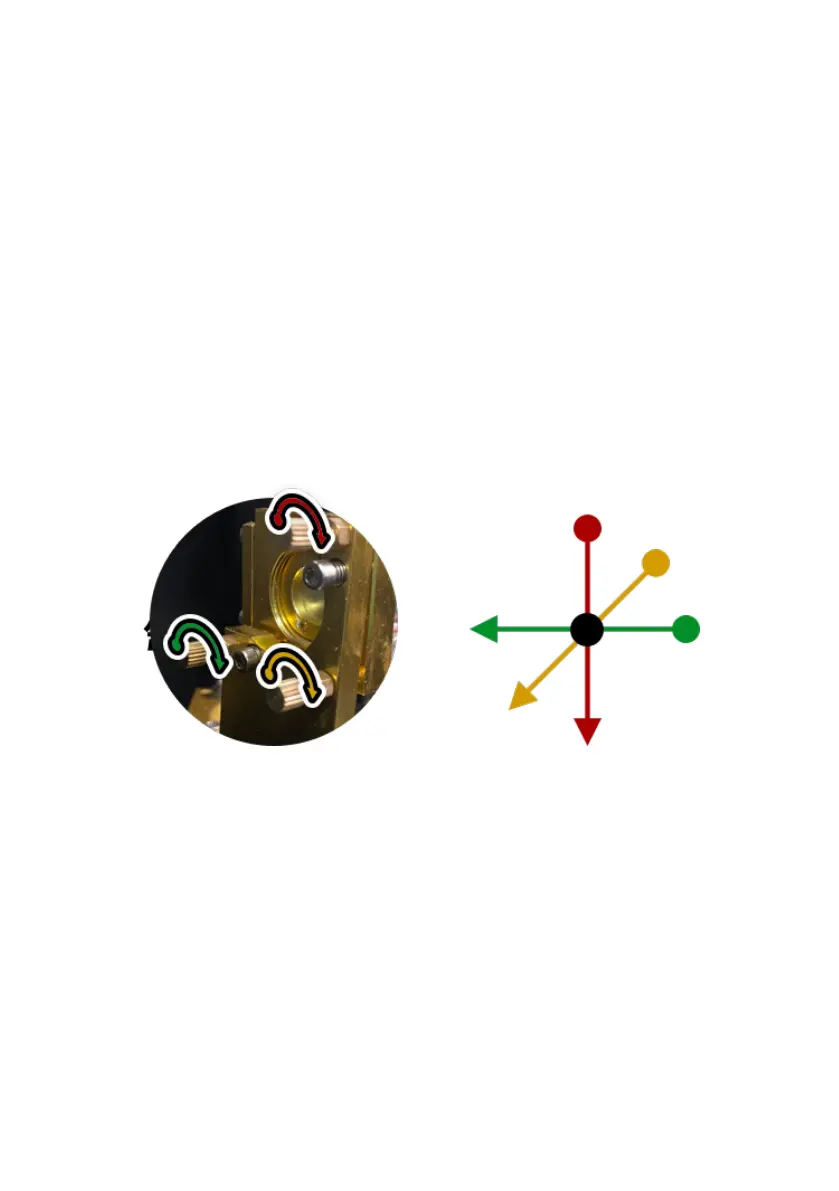

The screws behind the second mirror control the
mirror angle which is shown in the picture below.
Release the nut on the screw, rotate the screw for the
desired direction and test the shot position until the
two shots can overlap. Tighten the nut slightly back to
its position when the adjustment is done.
󱦻
Put on a new tape and run the test again.
Second Mirror Dot Direction
