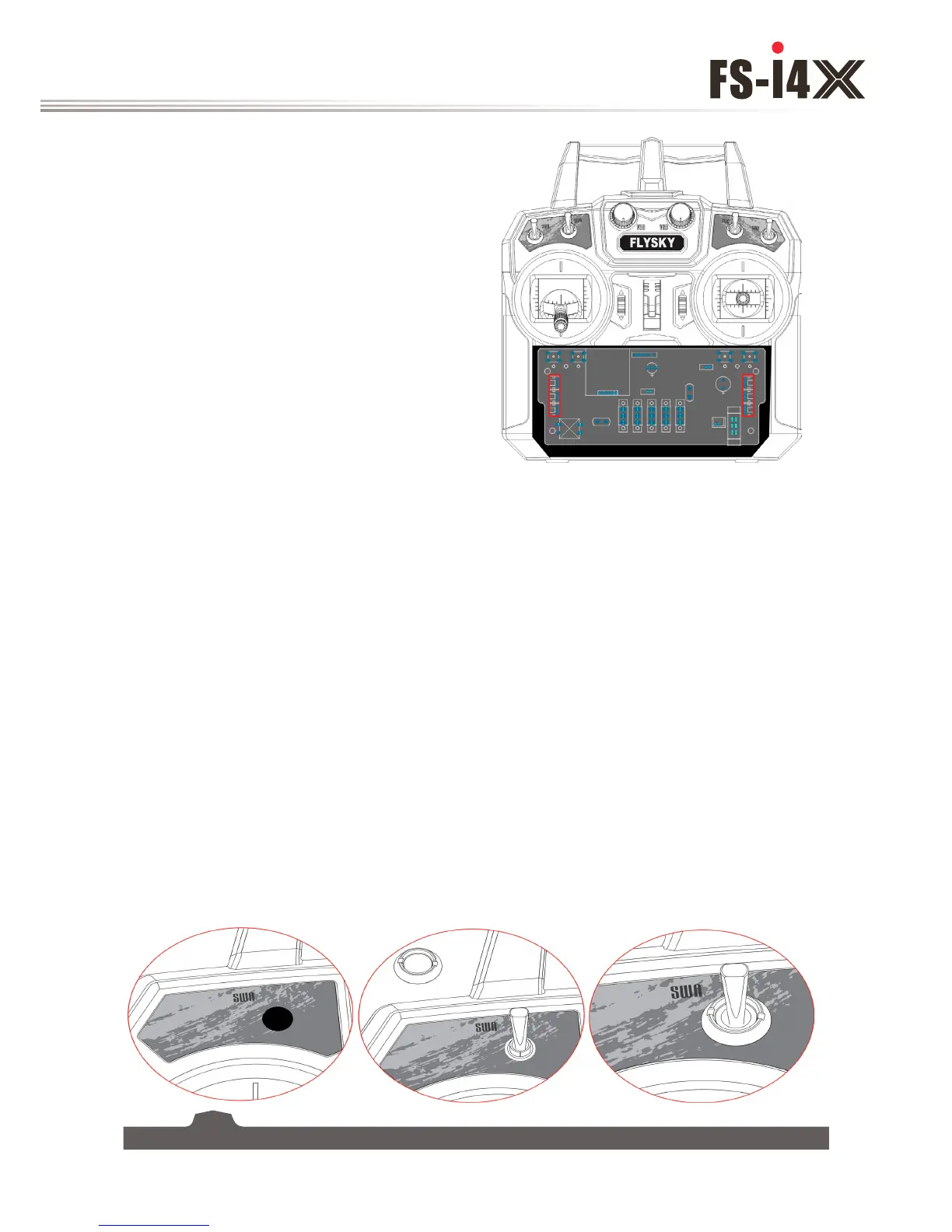

• 8. The connectors for channels 5 - 10 are
marked in red on the diagram . On the
circuit board each channel is labled, making
it easy to find the correct channel. Follow
the cables leading from each connector to
identify which switch or knob goes to each
channel.
• 9. Carefully remove the desired connectors
from the board.
Note: Do not pull on the wires themselves, doing so
may damage the connector or wire.
• 10. Replace the desired switch/knob connectors into the corrsponding channel slot.
• 11. Put the circuit board back in place and replace the screws.
Note: Make sure that you don't over tighten the screws, this could lead to damage of the system or the
screws.
• 12. Put the back cover back in place, and squeeze the handle until the two pieces click together.
• 13. Replace the cover screws.
• 14. Replace the power button cover.
To change a toggle:
• 1. Take the receiver apart following the above instructions.
• 2. Remove the toggles connector from the circuit board.
• 3. Unscrew the plate holding the toggle in place on the front of the transmitter.
