14
4630, 4640
X = 330 mm, minimum
4650, 4660
X = 500 mm, minimum
4670, 4680
X = 650 mm, minimum

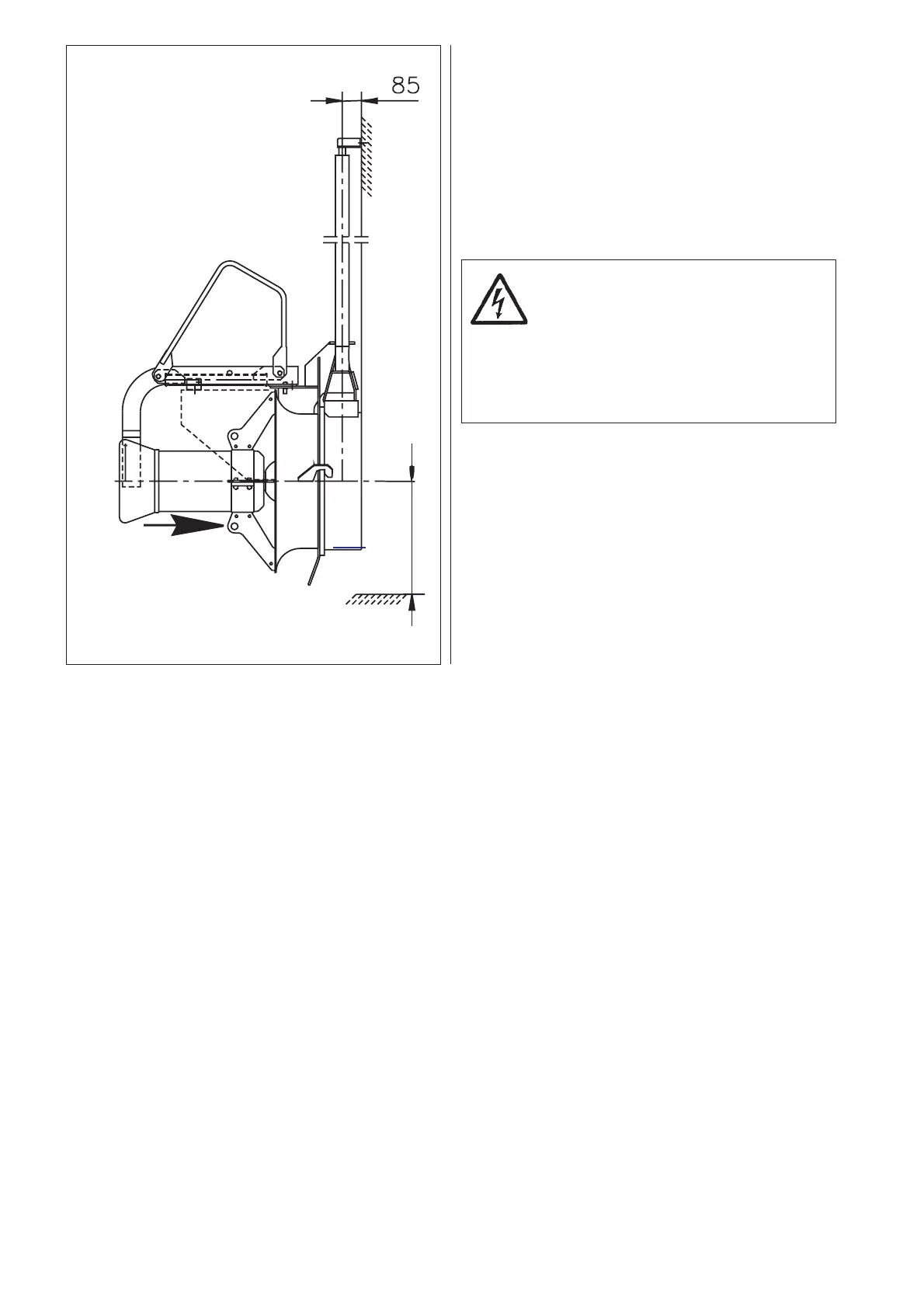

Fit a hook on the lifting handle. Lift the pump so that it
slips on to the guide bars.
Lower the pump so that the inlet cone hooks into the
ring on the discharge connection.
Run the cables through tube so that they do not have
any sharp bends and are not pinched.
NOTE! The end of the cable must not be submerged.
Leads have to be above flood level, as water may
penetrate through the cable into the junction box or
the motor.
In all installations, make sure that
the motor cable cannot be drawn
into the propeller.
The cables are fragile, beware that
no sharp bends occure throughout
(during) installation procedure
especially by entrance flange.
X
Liquid flow direction
40254
