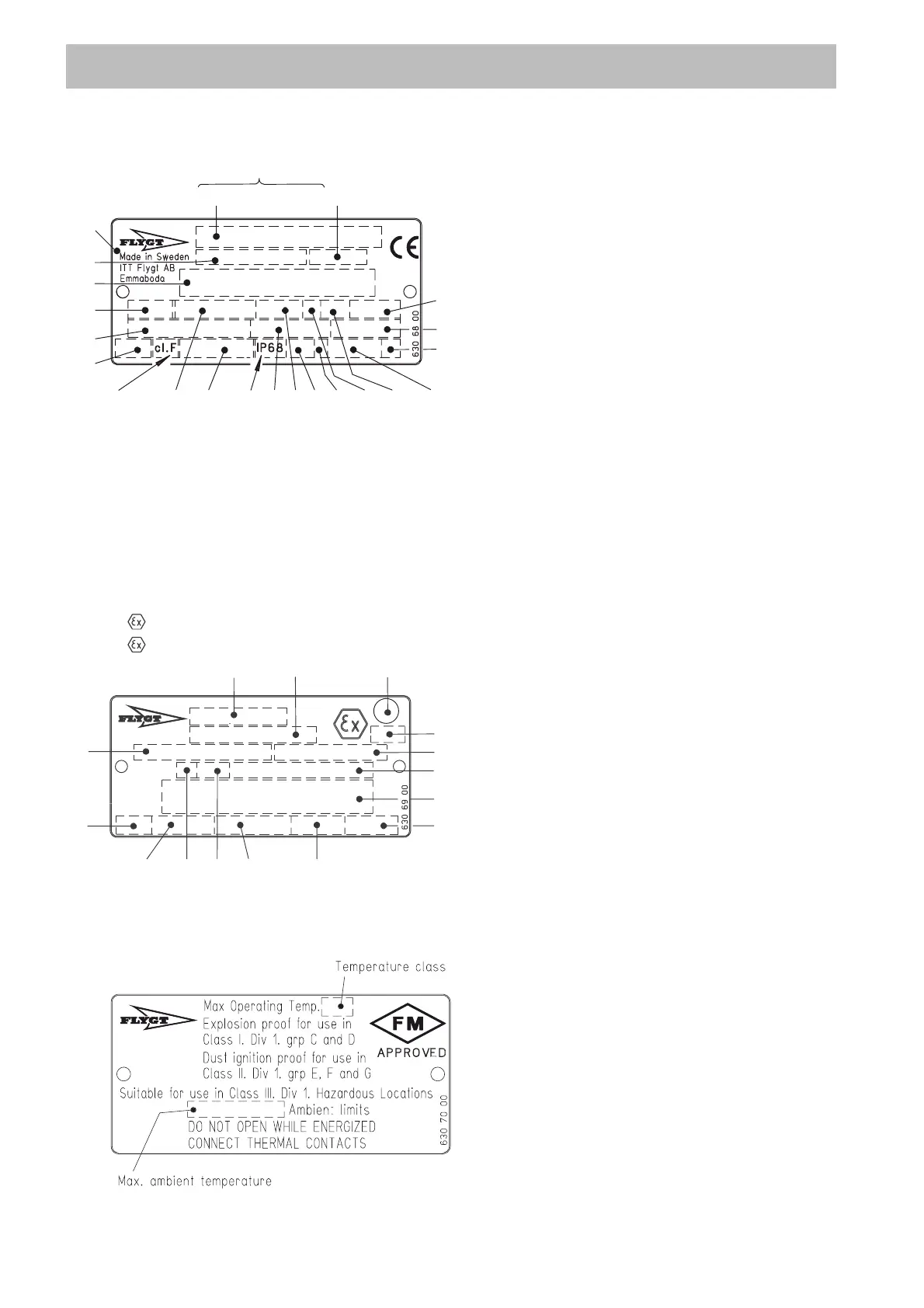

DATA PLATE INTERPRETATION
GENERAL DATA PLATE
A Serial number
B Product code + Number
C Curve code
D Country of origin
E Product number
F Additional information
G Phase; Type of current; Frequency
H Rated voltage
I Thermal protection
J Thermal class
K Rated shaft power
L International standard
M Degree of protection
N Rated current
O Rated speed
P Max. submergence
Q Direction of rotation: L=left, R=right
R Duty class
S Duty factor
T Product weight
U Locked rotor code letter
V Power factor
X Max. ambient temperature
A Approval
B Approval authority + Approval Number
C Approval for Class I,
D Approved drive unit
E Stall time
F Starting current/Rated current
G Duty class
H Duty factor
I Input power
J Rated speed
K Controller
L Additional information
M Max. ambient temperature
N Serial Number
O ATEX marking
D
A
N
K
L
M
CB
F
E
G
I
J
H
O
M
L
N
V
U
T
R
S
Q
P
O
I
J
K
H
G
F
E
D
B
C
X
A
APPROVAL PLATES
Always together with the general data plate.
EN: European Norm,
ATEX Directive
EN 50014, EN 50018, EN 1127-1,
ll 2 G EEx dllB T4
I M2 EEx dl (only 4650 and 4660)
FM: Factory Mutual,
Class l Div 1 Grp C and D
Class ll Div 1 Grp E, F and G
