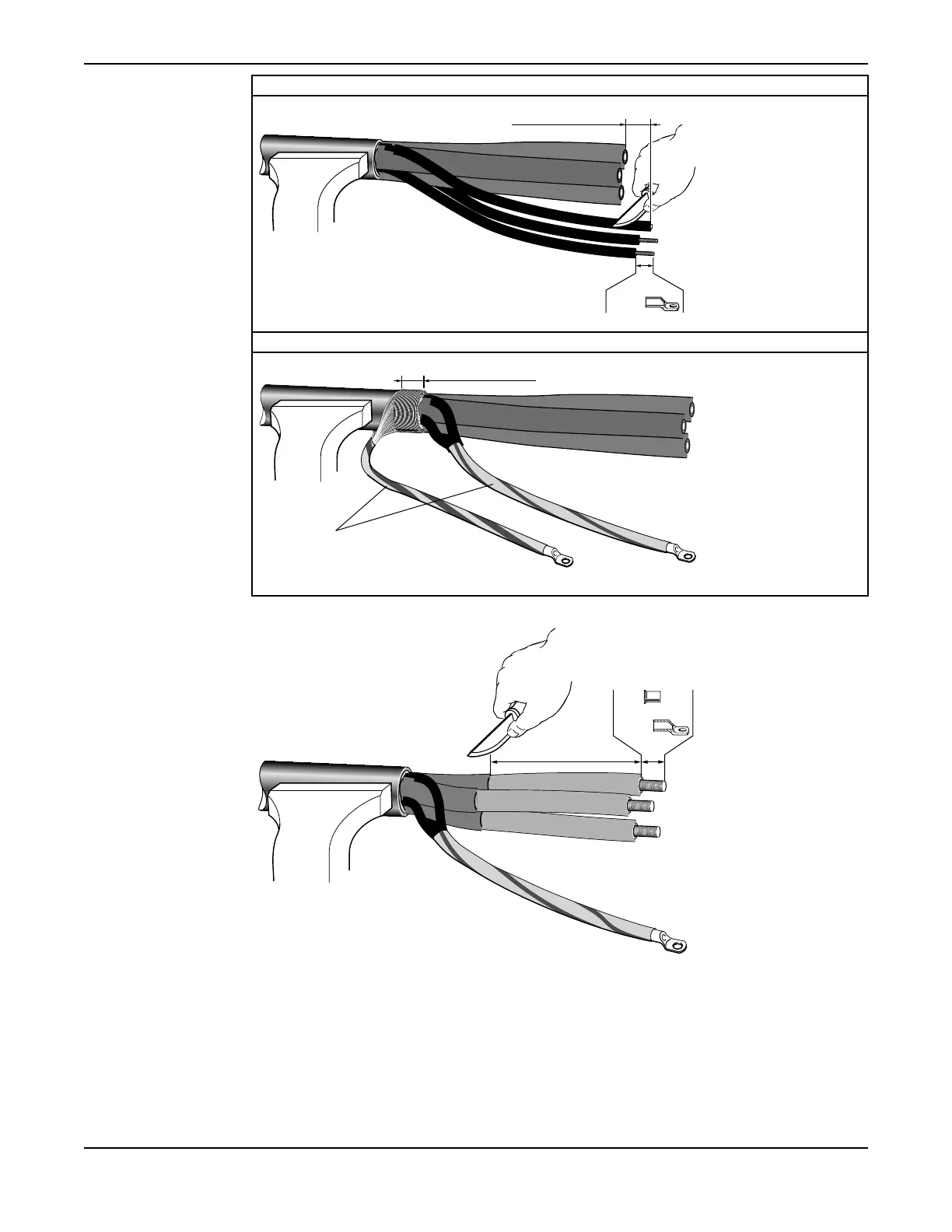

Cable without screen:
90 mm (3.5 in.)
5 mm +
(0.2 in.)
F000176
Screened cable:
1. Yellow/green insulating hose
3. Peel off the conductive layer.
200 mm (7.9 in.)
5 mm +
(0.2 in.)
F000178
4. Clean the power leads with chemically pure petrol.
