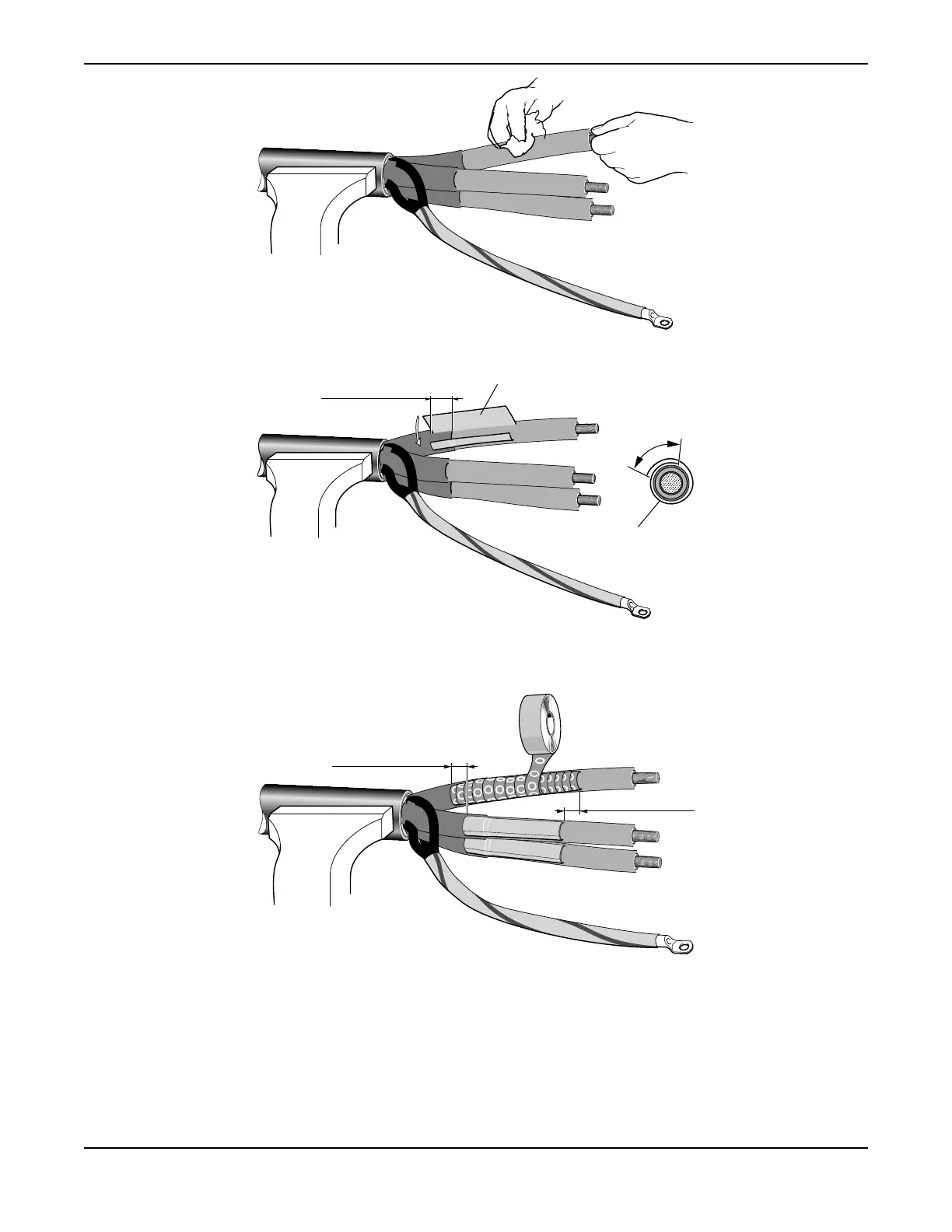

5. Attach the FSD (stress-grading pad) to the leads.
20 mm (0.8 in.)
30 mm (1.2 in.)
1
1
1. FSD, stress-grading pad
6. Apply four turns of IV (insulating self-bonding) tape with half overlap.
Stretch the tape until the markings are circular.
20 mm (0.8 in.)
20 mm (0.8 in.)
7. Fasten the IV tape ends with electrical tape.
Installation
