FLYGT C3356 - Replace the Impeller Wear Ring

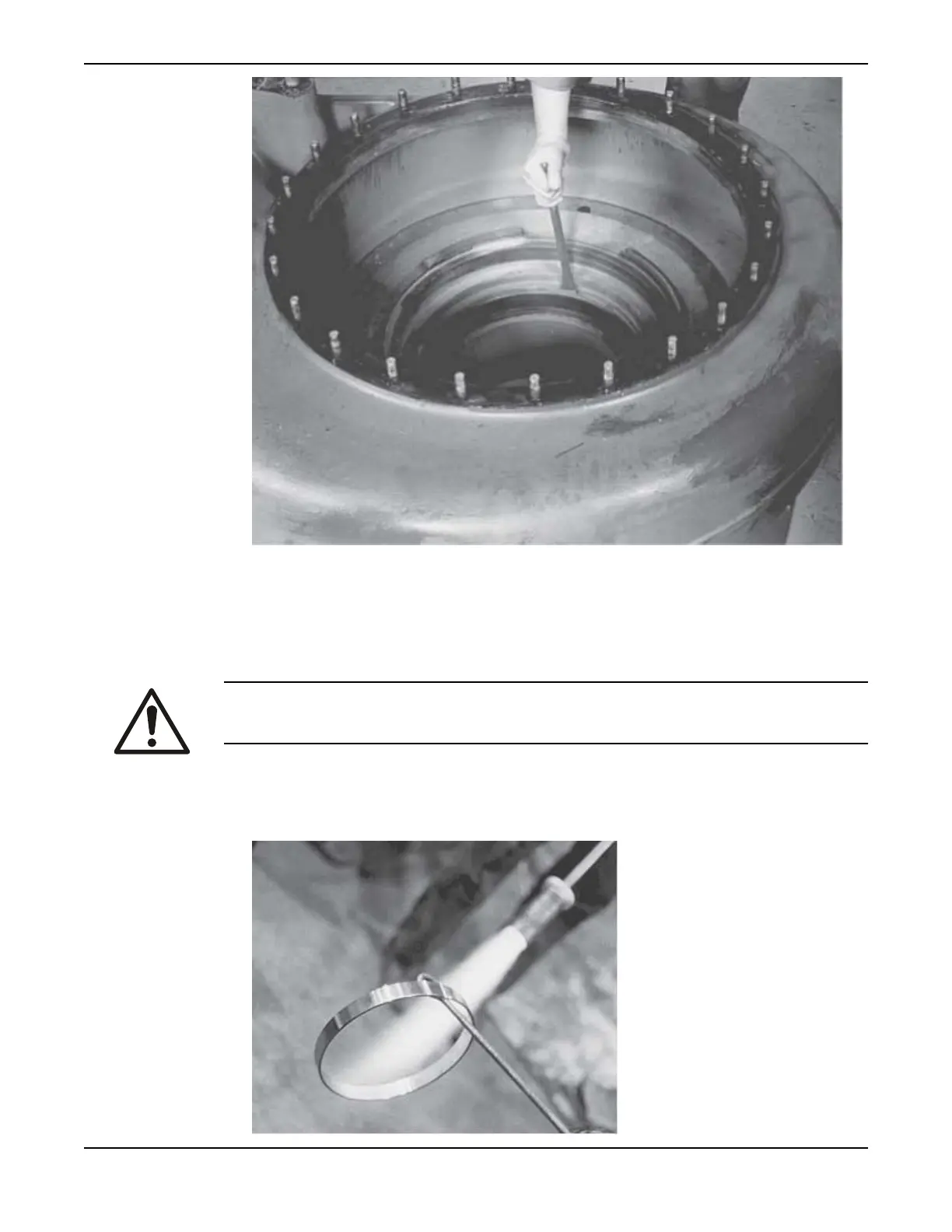

4. Drive in the new wear ring.
To prevent deformation, use a maul and a wooden block.
Replace the impeller wear ring
1. Disconnect and lift off the drive unit from the pump housing.
2. Lay the drive unit in a horizontal position.
WARNING:
Make sure that the pump cannot roll or fall over and injure people or damage property.
3. Knock off the wear ring from the impeller.
If necessary, use a grinder to make grooves in the wear ring.
4. Heat the new wear ring and press it onto the impeller.
Maintenance
C3300/6x5, C/R3231, C3240, C3306, C3312, C3351, C3356, C3400, C3501, C3531, C3602, C3800 Installation,
Operation and Maintenance Manual
91
