Flymo EasiLife 200 - Product Overview and Components

1.2 Product overview
1
5
4
3
9
21
10
22
23
27
25
24
19
6
8
7
2
18
15
14
17
16
20
13
11
12
26

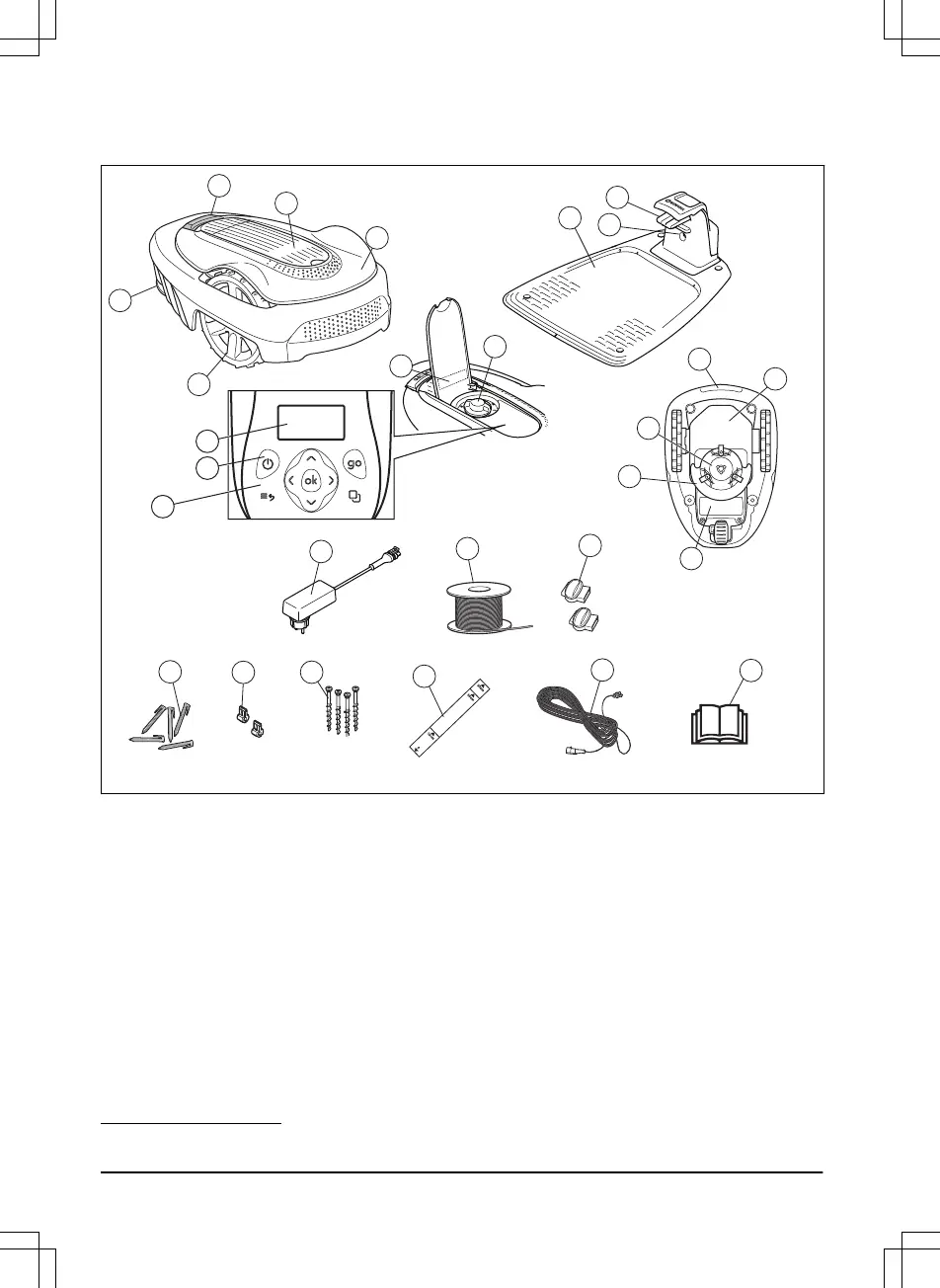

The numbers in the figure represent:
1. Body
2. Hatch to display, height adjustment and
keypad
3. Stop button
4. Rear wheel
5. Front wheels
6. Charging station
7. Contact plates
8. LED for operation check of the charging
station, boundary wire and guide wire
9. Cutting height adjustment
10. Rating plate
11. Display
12. ON/OFF button
13. Keypad
14. Cutting system
15. Blade disc
16. Handle
17. Chassis box with electronics, battery and
motors
18. Battery cover
19. Power supply
1
20. Loop wire for boundary loop and guide wire
21. Couplers for loop wire
22. Stakes
1
The appearance may differ depending on market.
