5 Advanced operations

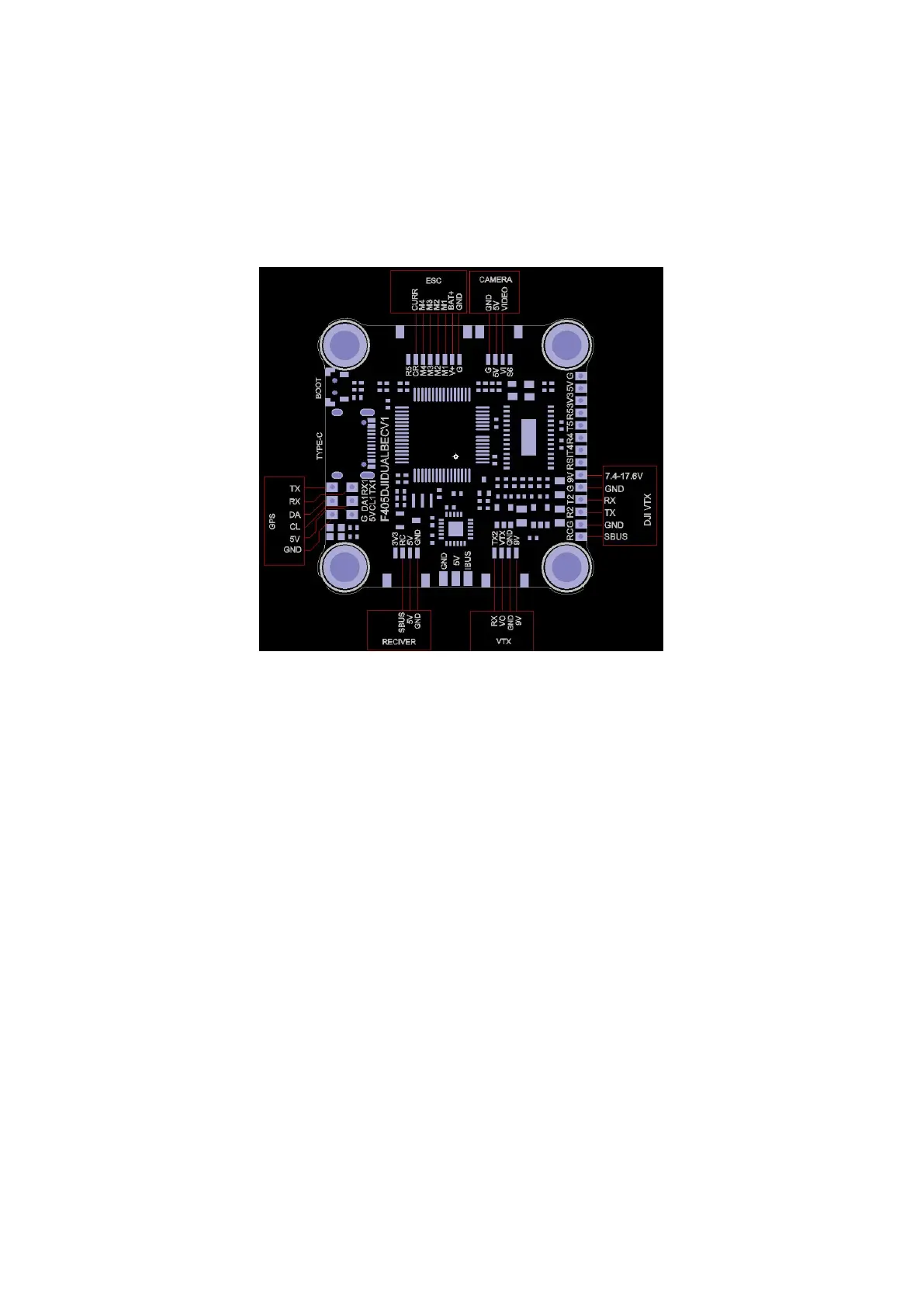

5.1 Flight controller wiring diagram
This wiring diagram is only provided to players with rich experience,
proficient in circuit knowledge and welding skills.
You can add or change your Equipment according to this wiring diagram,
but we do not recommend it.
5.2 Equipment wiring diagram
This product only uses the flight control and PDB shown in the figure
below. Other equipment are used for demonstration. When you receive the
drone，all the required equipment has been installed.
