8. If you haven’t yet done so, replace the receiver back
into the fuselage. (If assembling the Rx-R edition, mount the
receiver in the fuselage with the included double-sided hook
& loop material.)

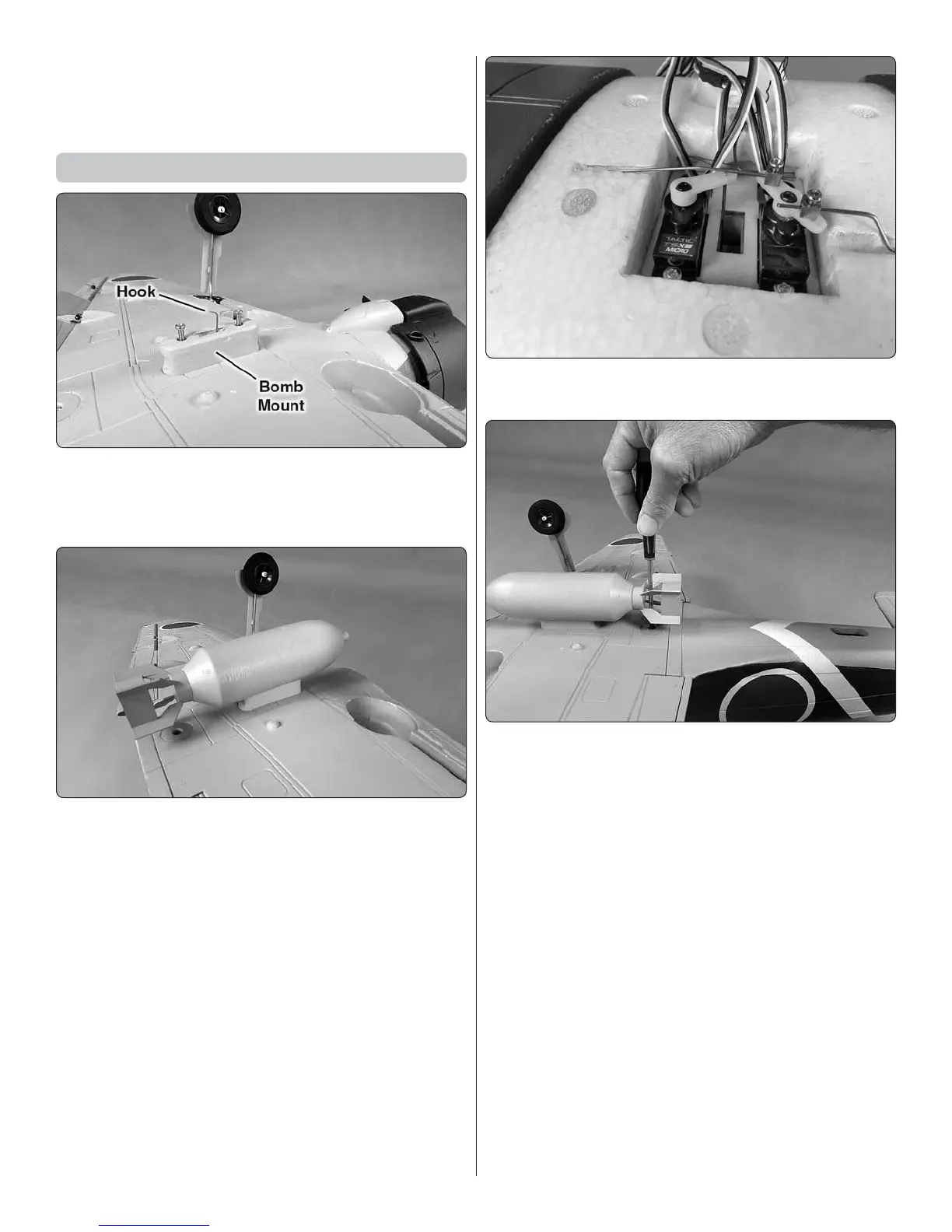

Mount the Releasable Bomb
❏
1. Mount the bomb mount with two M3 x 20 screws and
the wire hook facing aft, while simultaneously inserting the
top of the wire release hook into the outer hole of the bomb
release servo arm (as shown in the image to the right).
Note: To release the bomb remotely, a 7-channel transmitter
and receiver will be required. Or, the fl ap servo may be
disconnected from the receiver, making a vacant channel
available for the bomb release – of course, then the fl aps will
be disabled. Or, the fl ap and bomb servos may be connected
with a Y-harness (not included).
❏
2. Connect the servo to an available channel in your receiver
and use this channel to release the bomb.
❏
3. Disconnect the wing servo wires from the receiver, mount
the receiver in the fuselage, and then fasten the wing to the
fuselage with the M4 screw—it will be a little easier to install
and tighten the wing bolt without the bomb in the way, but if
the bomb is mechanically locked into place it’s easy enough
to access the wing bolt down between the fi ns of the bomb.
