Vertical stabilizer installation
6
EN
Model assembly

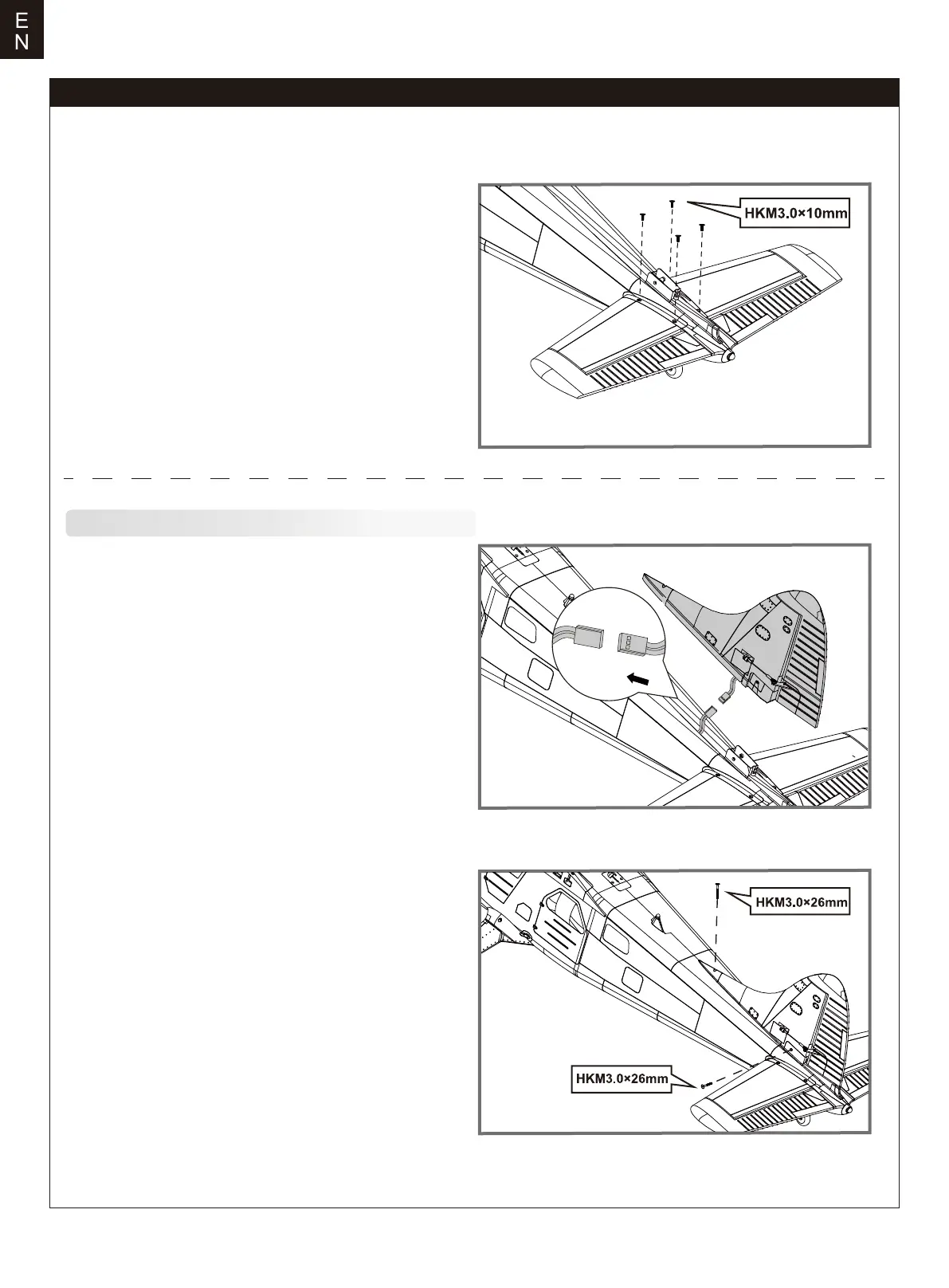

3. Install the 4 included screws to secure the stabilizer halves.
1. Connect the rudder and elevator servo connectors to the servo
extensions in the fuselage.
2. Slide the vertical tail assembly into slot in the fuselage.
CAUTION:DO NOT crush or damage the wiring when attaching
the vertical tail assembly to the fuselage.
3. Secure the assembly to the fuselage using 2 screws as shown.
CAUTION: Ensure that the screw has been securely tightened,
as the vertical stabilizer is subject to high aerodynamic stress.
When needed, disassemble in reverse order.
