FMS US01B.M8 - 3 Product Information; System Description; Dimensions

Installation manual US01B.M8 / US04B.M8
17.02.2017 5
3 Product information
3.1 System description
The ultrasonic sensors can detect a very wide range of web materials including
transparent films. The sensors are not suitable for sound permeable materials (e.g. net-
like or open weave textiles). They are factory set and don’t need any adjustments or
calibration. The main advantage of these sensors is the save detection of transparent
films of all sizes. The sensor is almost insensitive to changes of material planarity or
dust thanks to an optimized sensor and micro-processor controlled ultra-sound
transmission.
3.2 Dimensions

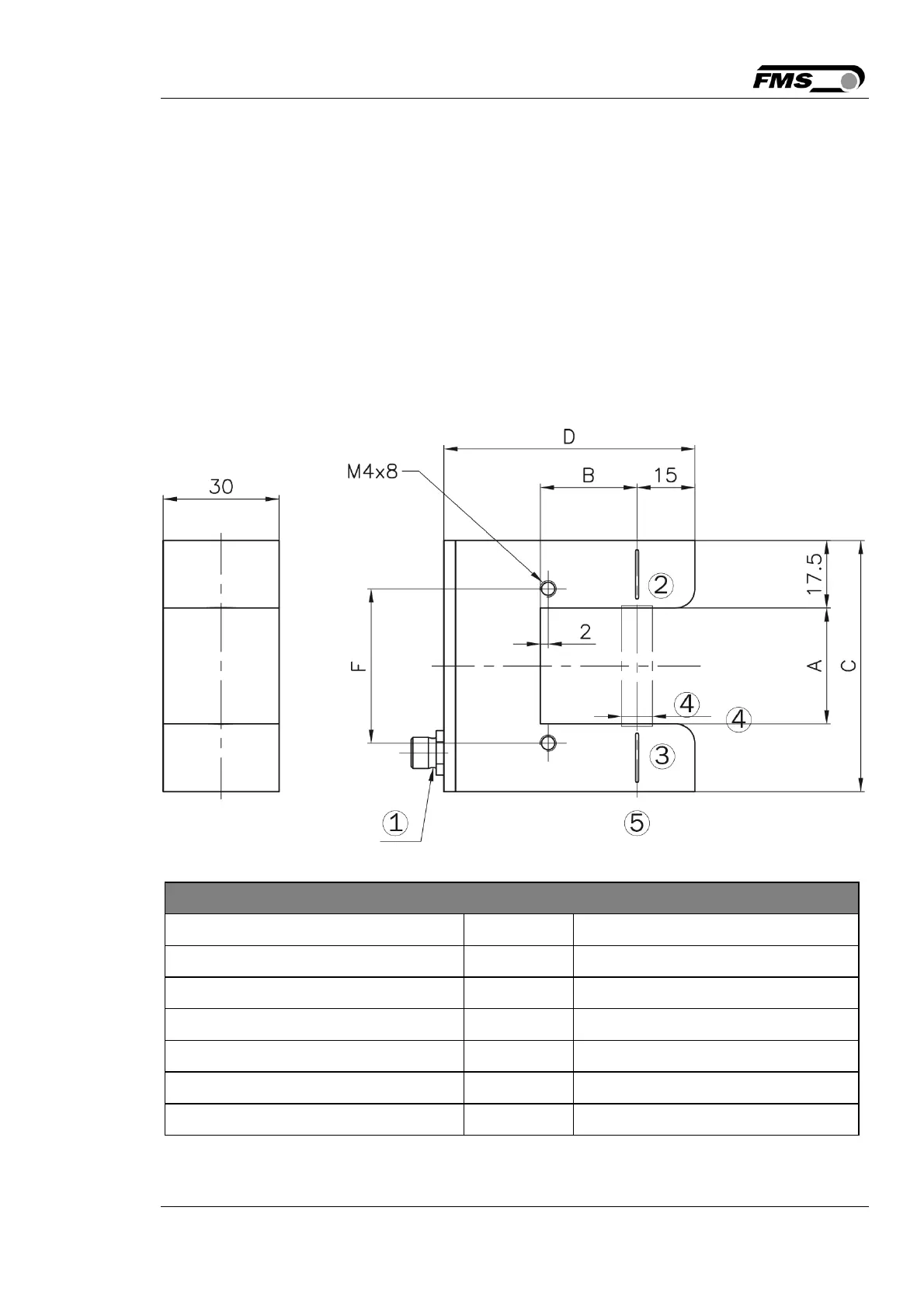

Figure 1: Dimensions US01_04B.ai
Dimensions mm (in.)
US01B.M8 US04B.M8
(A) Fork width 30 (1.18) 90 (3.54)
(B) Fork depth 25 (0.89) 80 (3.15)
(C) Sensor hight 65 (2.56) 125 (4.92)
(D) Sensor length 65 (2.56) 120 (4.92)
(F) Bore distance 40 (1.57) 100 (4.92)
(4) Detection range 8 (0.31) 8 (0.31)
Table 1: Dimensions
