FMS US01B.M8 - Alignment of the Sensor

Installation manual US01B.M8 / US04B.M8
17.02.2017 9
5.2 Alignment of the sensor

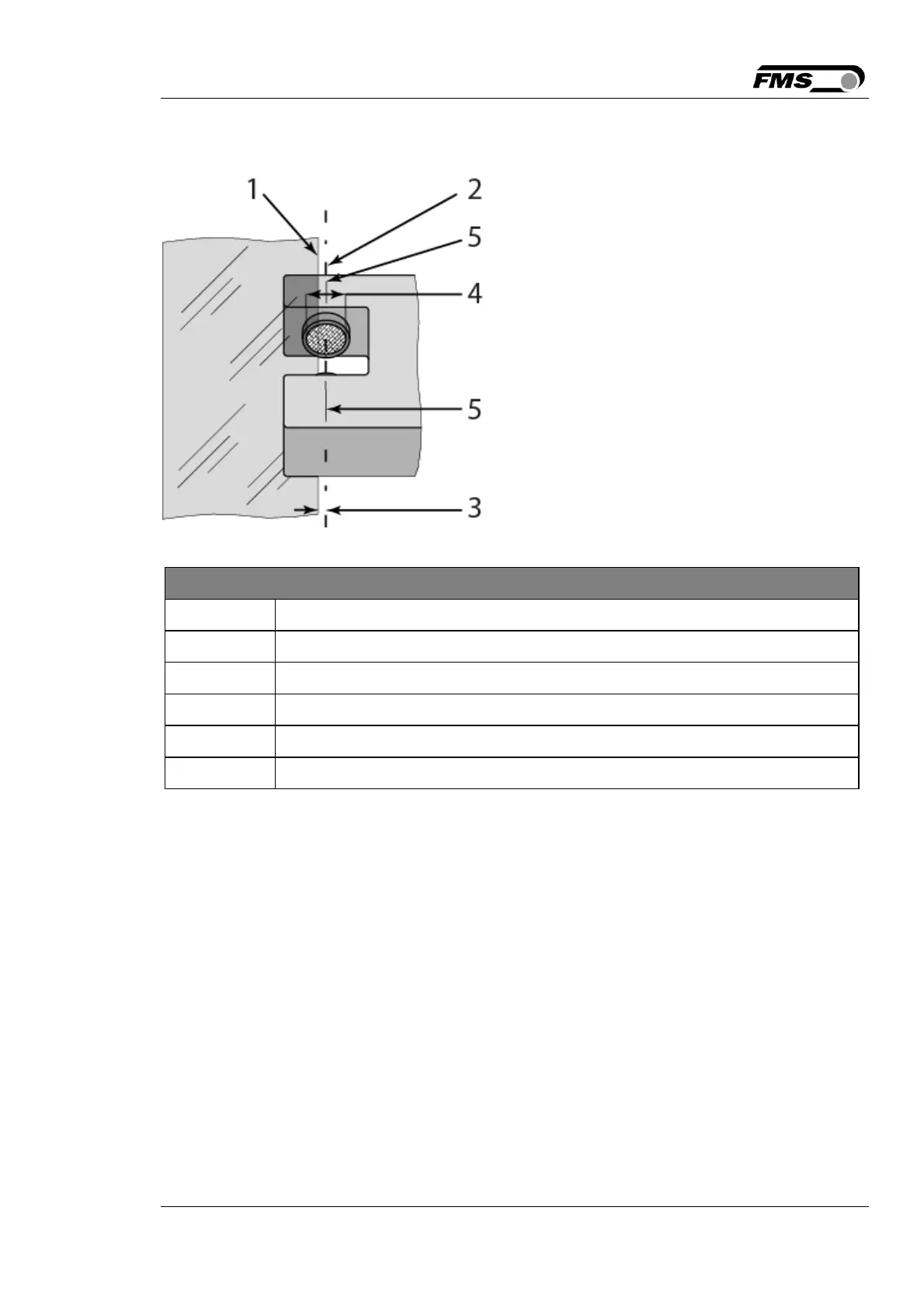

Figure 4: alignment of the sensor
Terms sensor alignment
Position Description
1 Web edge
2 Sensor axis
3 Deviation of web edge to sensor axis
4 Detection range of the sensor
5 Marking for mid of detection area
Table 4: Sensor alignment
- Loosen the fixing nut on the bracket and adjust the sensor.
- The positioning marks provide a quick and precise alignment of the sensor to the
reference edge.
- Fix the sensor in the new position.
- The sensor will be properly positioned, if the web edge goes through the sensor axis
covering half of the ultrasonic transmitter or receiver (ref. to Fig. 4).
