Model assembly
EN
HKM
3.0*26

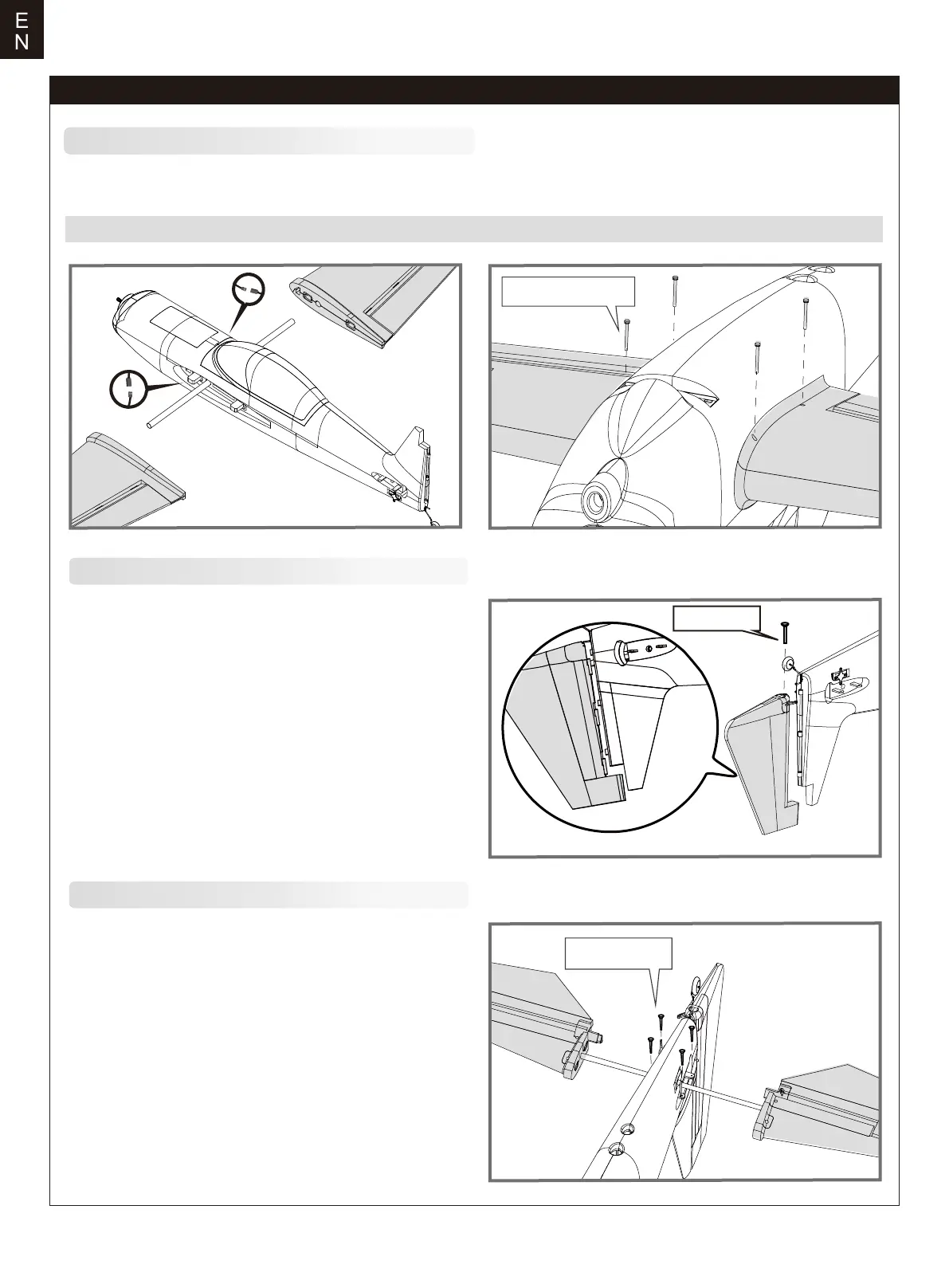

Main Wing Installation
2. Secure the wings on the fuselage using the included
screws as shown.
1. Slide the tube into the fuselage then install both wings over
the wing tube and into the wing slot of the fuselage.
Notice: The connectors on both side should be attached precisely and firmly.
Vertical Stabilizer Installation
HKM3.0*20
Horizontal Stabilizer Installation
HKM3.0*16
1. Install the vertical tail to the fuselage slot and secure
it with the included screw as shown.
1. Slide the horizontal tail tube into the hole in the rear of
the fuselage.
2. Install the two pieces (left and right) horizontal tail as
shown. Ensure the control horn faces down.
3. Secure the two horizontal tail pieces in place using
the included screws.
