Channel-2
-
Elev
Spare 6
1
5
4
3
2
Gear
Rudder
Throttle
Elevator
Aileron
Channel-1
-
Aile
Channel-3
-
Thro
Channel-4
-
Rudd
Channel-5
-
Gear
Channel-6
-
Spar
6
EN

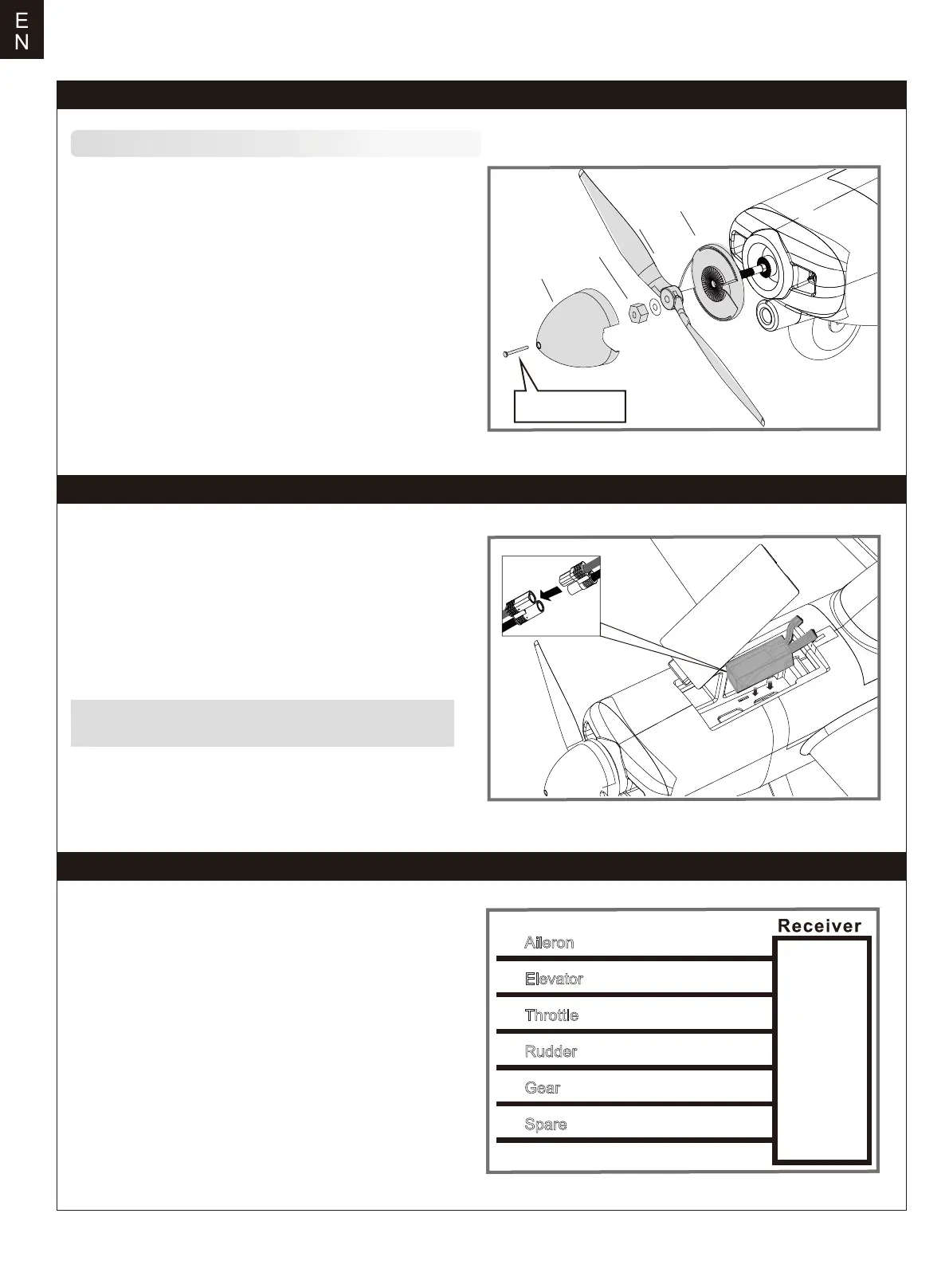

Propeller Installation
Model assembly
d
b
c
HKM3.0*40
1. Assemble the spinner and propeller as shown below.
1. Pull back on the release button and remove the battery
cover.
2. Apply the hook tape to the cable end of the battery.
3. Install the fully charged battery in the battery compartment
with the power supply cable toward the rear end of the plane.
Battery installation
Receiver wiring diagram
Attach aileron servo to the aileron channel of your receiver.
Elevator harness goes to elevator channel of your receiver.
Steering servo goes to the rudder channel. Attach the ESC
connector to the throttle channel of the receiver. The LED to
any spare channel. Tuck the wire leads into recessed cavity
at the rear end of the battery.
Note: you may need to relocate the battery position to
achieve the correct CG for your model.
