3
Contents of Kit
A: Fuselage
B: Main Wing Set
C: Horizontal Stabilizer
D: Vertical Stabilizer
Introduction
• Powerful 4258-KV550 motor, Predator 70A ESC
• High-strength,high-efficiency wooden propeller
• Carbon fiber tubes for strength
• Hollow-wing for weight control
• Screw-together construction
Wingspan: 1400mm(55.1in)
Overall length: 1490mm(58.66in)
Flying weight: ~ 2600g (91.7oz)
Motor size: Brushless 4258-KV550
Wing load: 62.9 g/dm²(0.14oz/in²)
Wing area: 40.2 dm²(623.1 sp.in)
ESC: 70A
Servo: 30g Servo x 4
Specifications

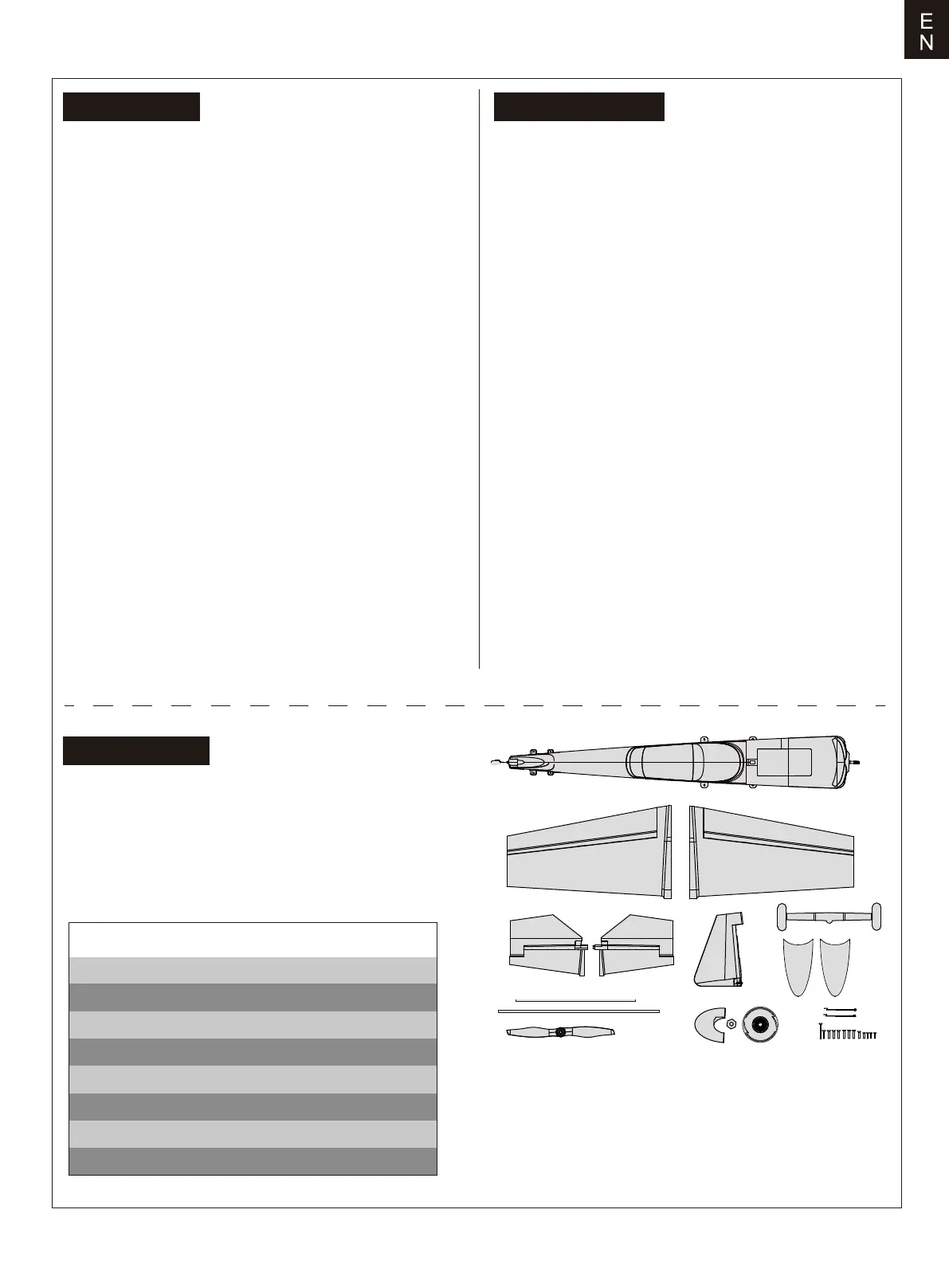

Before assembly, please inspect the contents of the kit. The
photo below details the contents of the kit with labels.
If any parts are missing or defective, please identify the
name or part number (refer to the spare parts list near the
end of the manual) then contact your local shop or email us:
support@fmsmodel.com
G:Tubes
H:Propeller
I: Spinner Set
The MSW Votec 322 is a Swiss two-seat low-wing monoplane
based on the Rihn DR-107 One Design and is designed for
amateur construction by MSW Aviation of Wohlen.
The brand new aerobatic model from FMS, the Votec 322 is
here! The aircraft adopts a streamlined fuselage design and
scaled Hamilton color scheme. Built with a hollow wing design,
carbon fiber tubes, pre-installed precision ball links and rods,
the Votec 322, delivers an enhanced 3D performance. The
high torque 30G servos ensure large control surface throw for
more aerobatic maneuver.
Wing tip side force generators can dramatically improve yaw
authority and keep the aircraft "locked-in" during aerobatic
maneuvers, especially in knife-edge orientation.
The Votec 322 also features a wooden propeller, for high
strength and efficiency, a first for the FMS line. Experience an
unparalleled 3D flight performance with the new Votec 322
from FMS!
Key Features:
Table of Contents
03
03
····················································· 04
···················································
················································
·······································
································
························
··········································
07
···················································
···················
·
·······
············································
08
············································
08
···················································
09
06
08
08
07
Introduction
Kit contents
Model assembly
Battery installation
Connectors diagram
Get your model ready to fly
Important ESC and model information
The transmitter and model setup
Check the control throws
Clevis installation
Control horn and servo arm settings
Center of gravity(CG)
Before flying the model
Flying your model
Troubleshooting
Spare parts list content
06
·····················································
············································
10
10
09
07
···························································
···························································
• Pre-installed, newly designed ball link style control horns for
more throw
• No gluing
• High torque coreless 30G digital metal gear servos
A.
C.
H.
J.
E.
F.
I.
G.
D.
B.
E: Landing Gear Set
F: Vortex Generator
J: Linkage Rods and Screws
(7-HKM 3.0*26 ) (4-HKM 3.0*16 )
(1-HKM 3.0*20 ) (1-HKM 3.0*40 )
