FOAMICO SATELLITE SYSTEM PSU 0127 - Pipe System - Rinse Circuit (Part Number: 1001883 -1001886)

17 PSU 0127- 7003313-16-19-20 15-04-2019
Pipe system – rinse circuit. Part number: 1001883 -1001886.

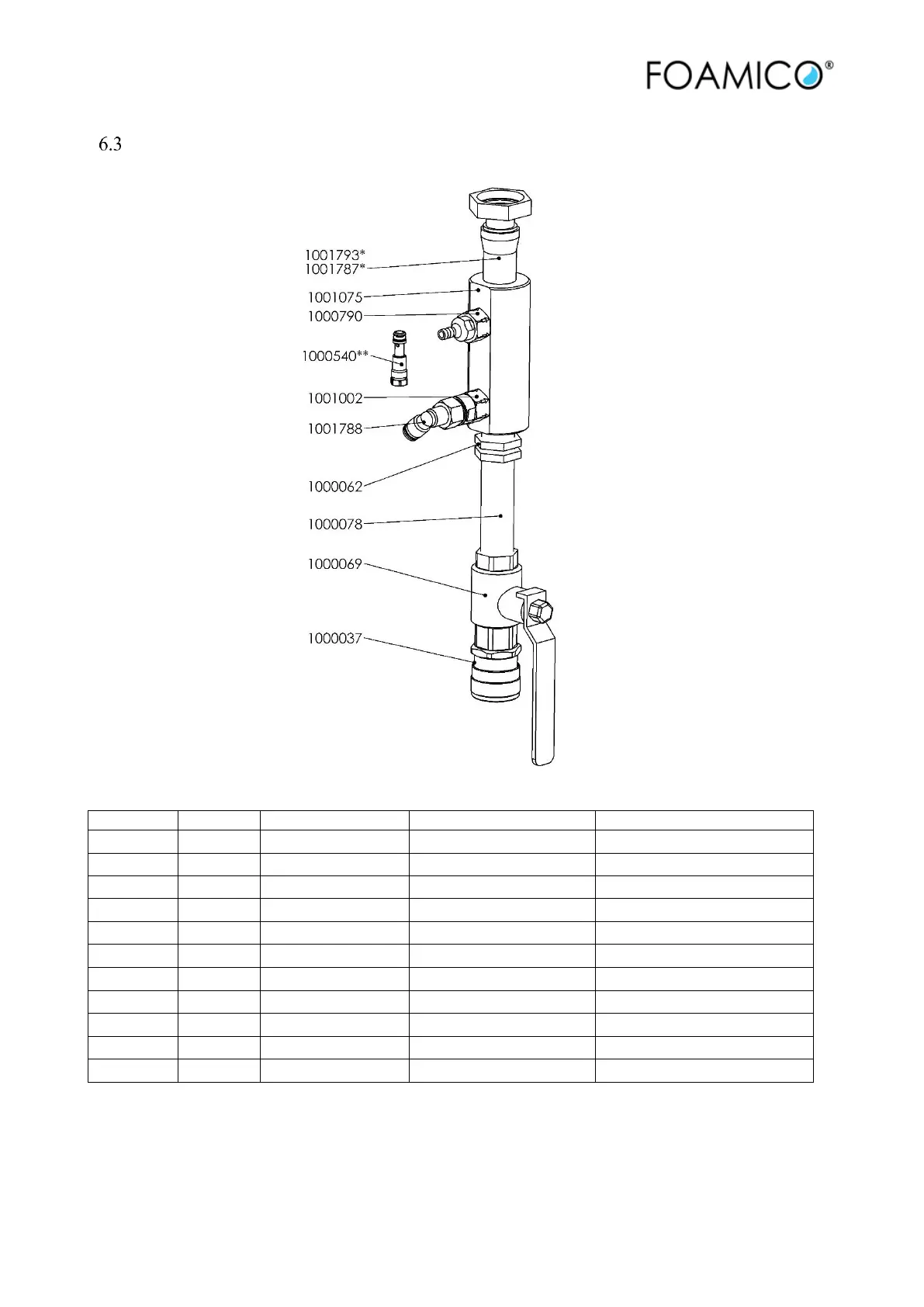

Figure 6.3 Spare parts – pipe system – rinsing circuit
QTY.
NO:
Description
Description1
Beschreibung
1
1001793*
Check valve
Water
Rücksclagventil
1
1001787*
Check valve
Detergent
Rücksclagventil
1
1000078
Nipple
1/2" out of cabinet
Nippel speziell
1
1000069
Ball valve
1/2" RG female female
Kugelhahn
1
1000037
Quick connect coupling
1/2"RG male
Schnellverschlusskupplung 1/2" AG
2
1000062
Nut
1/2"RG
Mutter
1
1001075
Injector house
Version Automatic
Injektor Haus für Automatik
1
1001002
Check valve
1/4" x 1/4" male - male EPDM
Rückschlagventil Luft
1
1001788
Elbow
90 Degrees Ø6 - 1/4" Female
Winkel
1
1000540**
Ø1,8 Injector for
3 Injector system
Ø1,8 Injektor für
1
1000790
Check valve
1/4" male x ø6 hose Hi Flour
Rückschlagventil Chemie
Table 6.3 Spare parts – pipe system – rinsing circuit
*1001793 for machines (7003312-15-18)
*1001787 for machines (7003311-14-17)
** 1000540 for machines (7003312-15-18)
