This appliance is fitted with a safety cut-off which will operate if the fire overheats (e.g. due to blocked air vents). For safety reasons, the fire
will NOT automatically reset.
To reset the appliance, disconnect the appliance from the mains supply for at least 15 minutes. Reconnect to the mains supply and switch on
the appliance.
ALWAYS DISCONNECT THE APPLIANCE FROM THE MAINS SUPPLY OUTLET
SOCKET BEFORE UNDERTAKING ANY CLEANING OR MAINTENANCE!
Warning: Before any maintenance and/or cleaning the exterior of the fireplace, disconnect the unit form the power supply and leave until cooled
off.
For general cleaning use a soft clean duster - never use harsh abrasive or cleaners.
The glass viewing screen should be cleaned carefully with a soft cloth. DO NOT use proprietary glass cleaners.
• Remote control battery replacement: this remote control uses 2x1.5V AAA battery. Make
sure the batteries are installed correctly in the remote control.
• This product does not use a standard bulb for its flame effect. The appliance uses an electronically controlled LED system to create the flame
effect therefore no parts need to be replaced. There are no user-serviceable parts on this appliance. Under no circumstances should the appli-
ance be serviced by any one other than a qualified electrician.

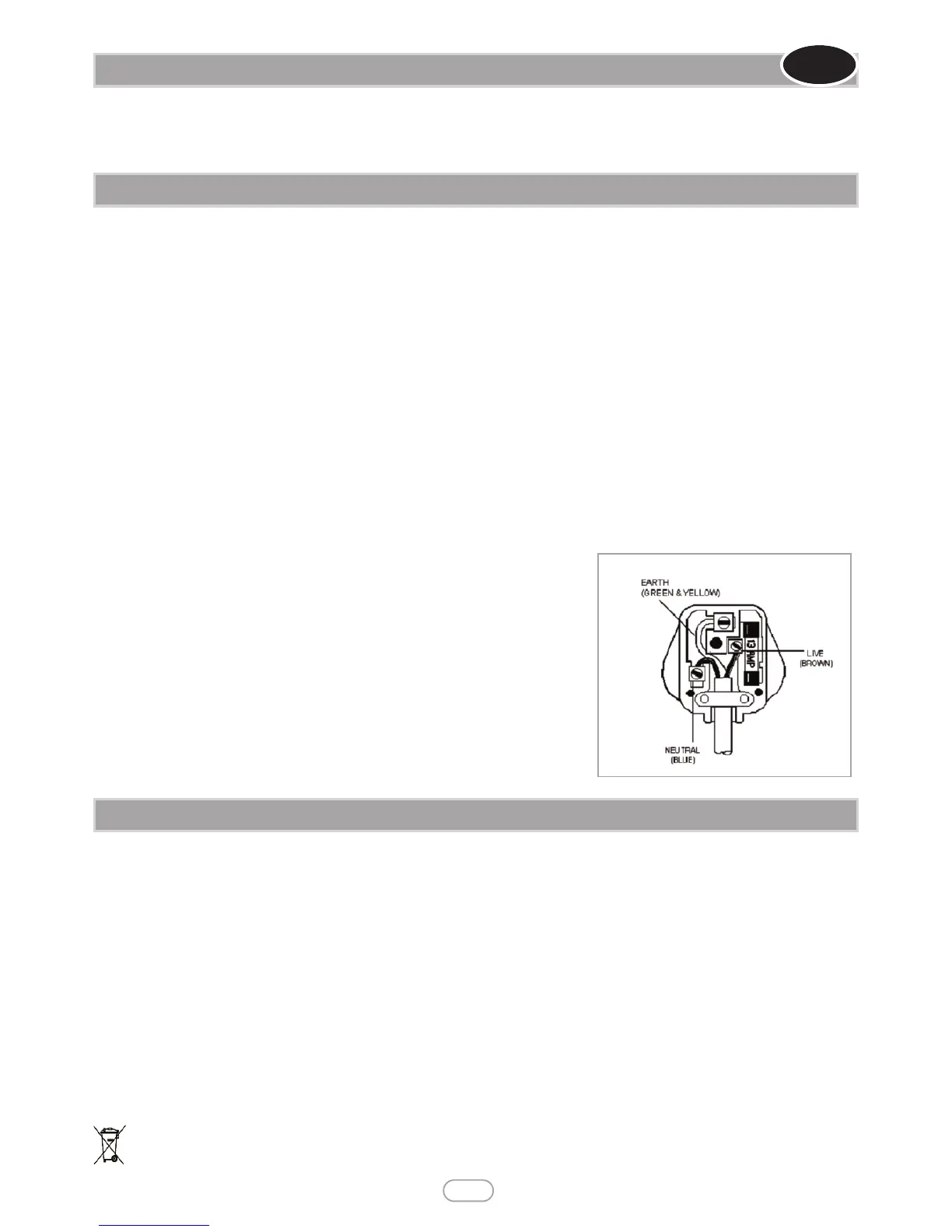

Electrical Connections - Plug Wiring Instruction
If the plug has to be changed, please follow the wiring instructions shown below.
The wires in the mains lead are coloured in accordance with the following code:
BROWN : LIVE (L)
BLUE : NEUTRAL (N)
GREEN/YELLOW : EARTH (E)
If the colours of the wires in the mains lead of this appliance do not correspond with the
coloured markings identifying the terminals in your
plug, then wire the plug as follows:
• The BLUE wire is the NEUTRAL and must be connected to the terminal which is marked
with the letter N or coloured BLACK.
• The BROWN wire is the LIVE and must be connected to the terminal that is marked with
the letter L or coloured RED.
• The wire which is coloured GREEN/YELLOW must be connected to the terminal which is
marked E or the earth symbol or coloured GREEN or GREEN/YELLOW.
• Always ensure that the cord grip is positioned and securely fastened.
WARNING: THIS APPLIANCE MUST BE EARTHED.
If a 13A (BS1363) fused plug is used it must be fitted with a BS1362 13A fuse.
If in doubt consult a qualified electrician.
Refer to Section 3.0 Appliance Data for lamp and fuse specification. Excluding lamps and fuses, use only genuine manufacturers spare parts avail-
able from your supplier.
11.0 SAFETY CUT-OUT SYSTEM
GB IE
5
' 2013 Focal Point Fires plc.
12.0 CLEANING AND MAINTENANCE
Figure 5
13.0 SPARES
As our policy is one of continuous improvement and development, we therefore hope that you will understand we must retain the right to amend details and/or specifica-
tions without prior notice.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.
F861106
