1414
iu@i.ilfl..,,

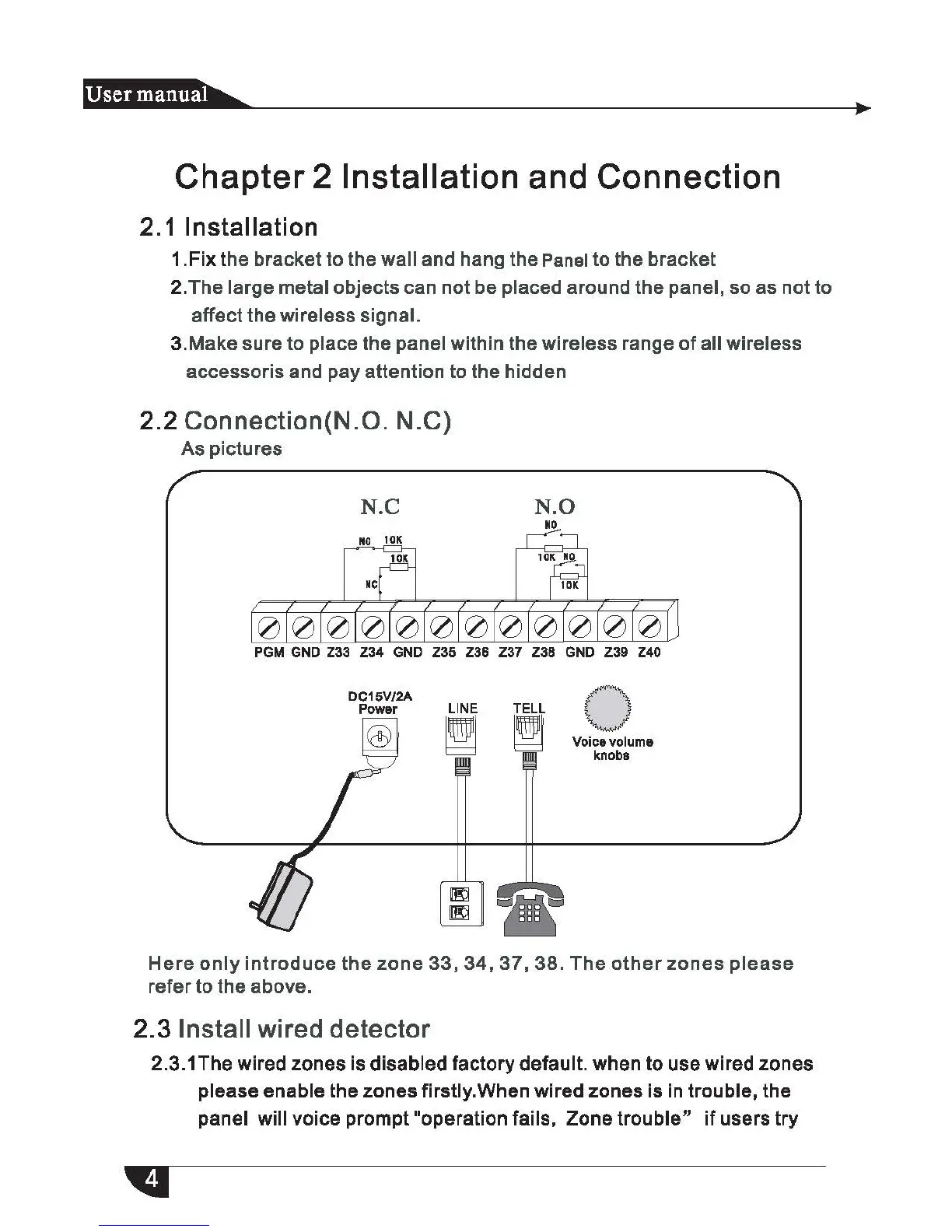

Chapter
2 Installation and Connection
2.1
Installation
1.Fix the bracket to
the
wall
and hang the
Panel
to
the
bracket
2.
The
large
metal objects can not be placed around
the
panel,
so
as not
to
affect the wireless signal.
3.Make sure
to
place
the
panel within
the
wireless range
of
all wireless
accessoris and
pay
attention to
the
hidden
2.2 Connection(N.O. N.C)
As
pictures
N.C
N.O
ND
PGM GND Z33
Z34
GND Z35 Z36
Z37
Z38 GND
Z39
Z40
DC15V/2A
Power
LINE
~
TELL
!
0
Voice
volume
knobs
Here
only
introduce
the
zone
33,
34,
37,
38.
The
other
zones
please
refer
to
the above.
2.3 Install wired detector
2.3.1 The wired
zones
is disabled factory default.
when
to
use
wired zones
please enable
the
zones
firstly.When wired zones is in trouble,
the
panel will voice prompt "operation fails, Zone
trouble"
if
users try
