444 9160 / 444 9180 / 442 9020
E 219 GB - Issue 1
22

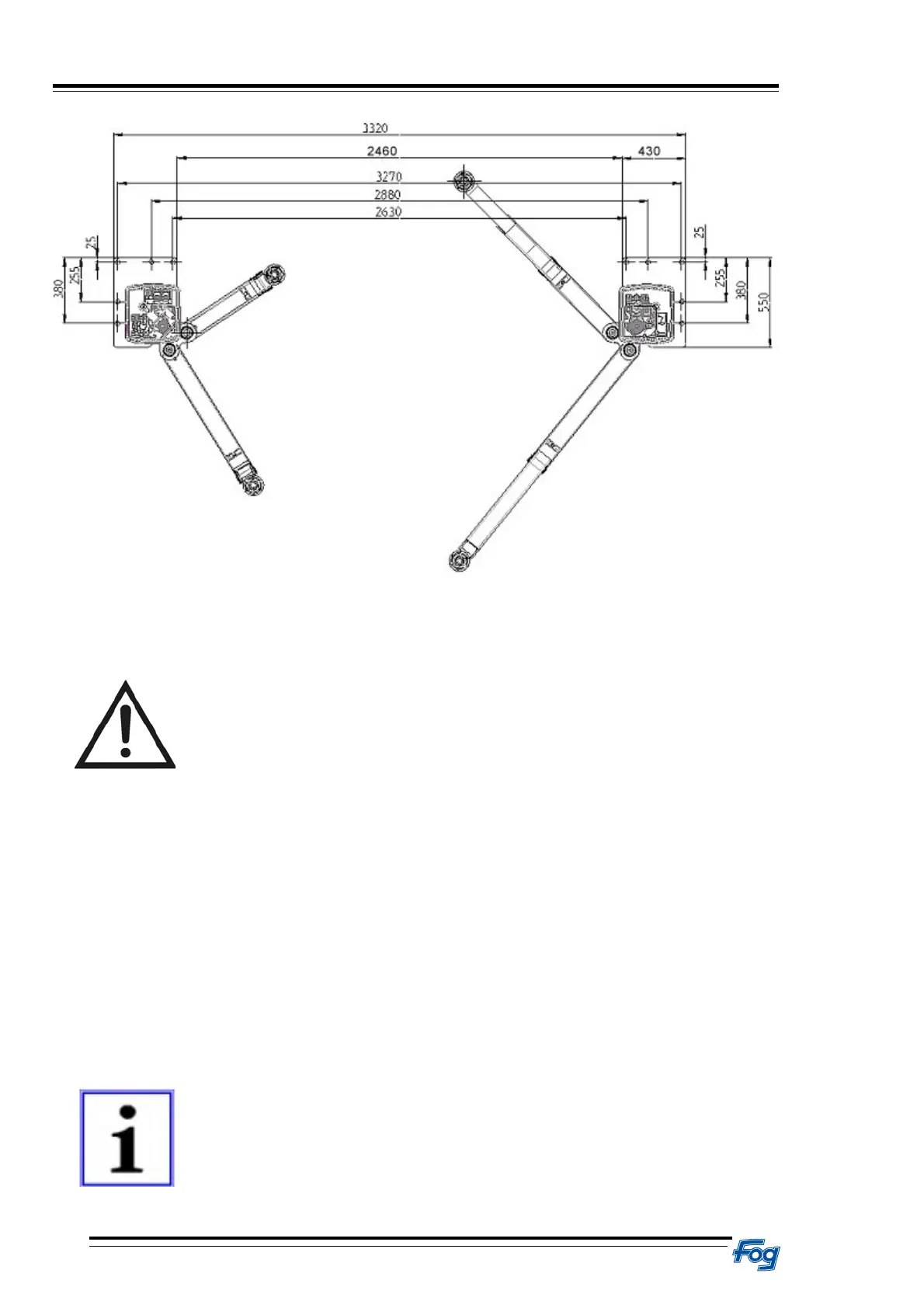

Power supply:
Electrical connections:
A lift operated by electrical power must have a fixed device at an easily accessible
place, so that the lift can be safeguarded against unauthorised used when it is no
longer in legitimate use (lockable switch to power supply).
Danger
Drive: 2x2,4 kW (without 230 V sockets) for 444 9160 / 444 9180
2x3 kW (without 230 V sockets) for 442 9020
Power supply: 3 Ph, N, PE - 230/400 V 50 Hz
Cable: 5x2,5
2
mm
Fuses (customer): 3x20 A slow for 444 9160 / 444 9180
3x25 A slow for 442 9020
Air plug:
A permanent connection for air supply which can be turned off must be installed in a place which is easily
accessible from the lift.
Information
The supply cables can be lead directly to the column head of the control
column or through a power channel in the foundation directly under the base
plate of the control column.
