3.6 Measuring the Antenna Heights

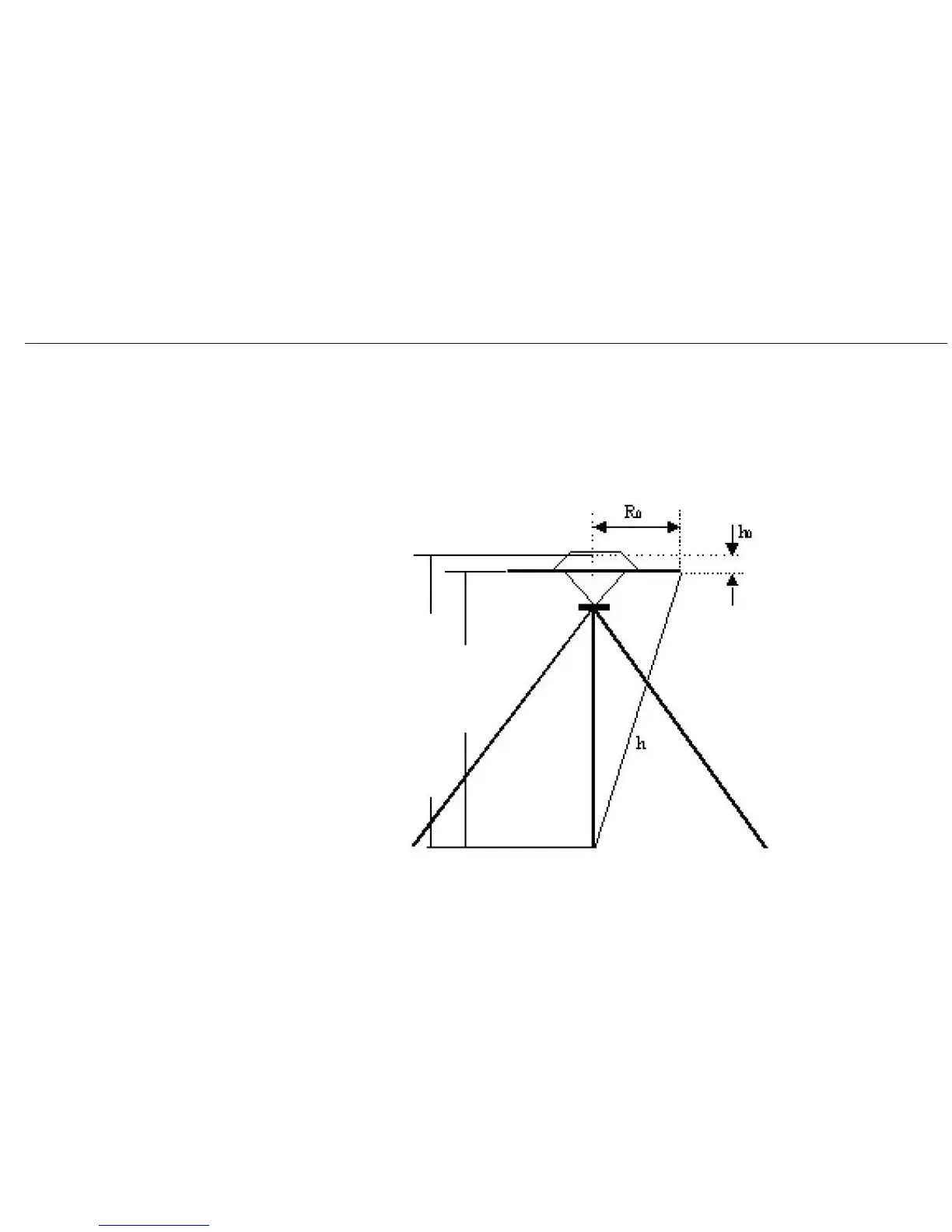

3.6.1 Measuring the Antenna Heights for a Tripod Setup
Ways: Pay attention to the buckle of black rubber fixing around the receiver, use your
tapeline from the buckle to the point where your base is setting up, thus the reading
on tapeline is the height of base.
Height
of
DPCA
vertical
(slant)
Height of DPCA=Vertical+h0
A20 User Manual
13
Measuring the
antenna heights,
a quick overview
