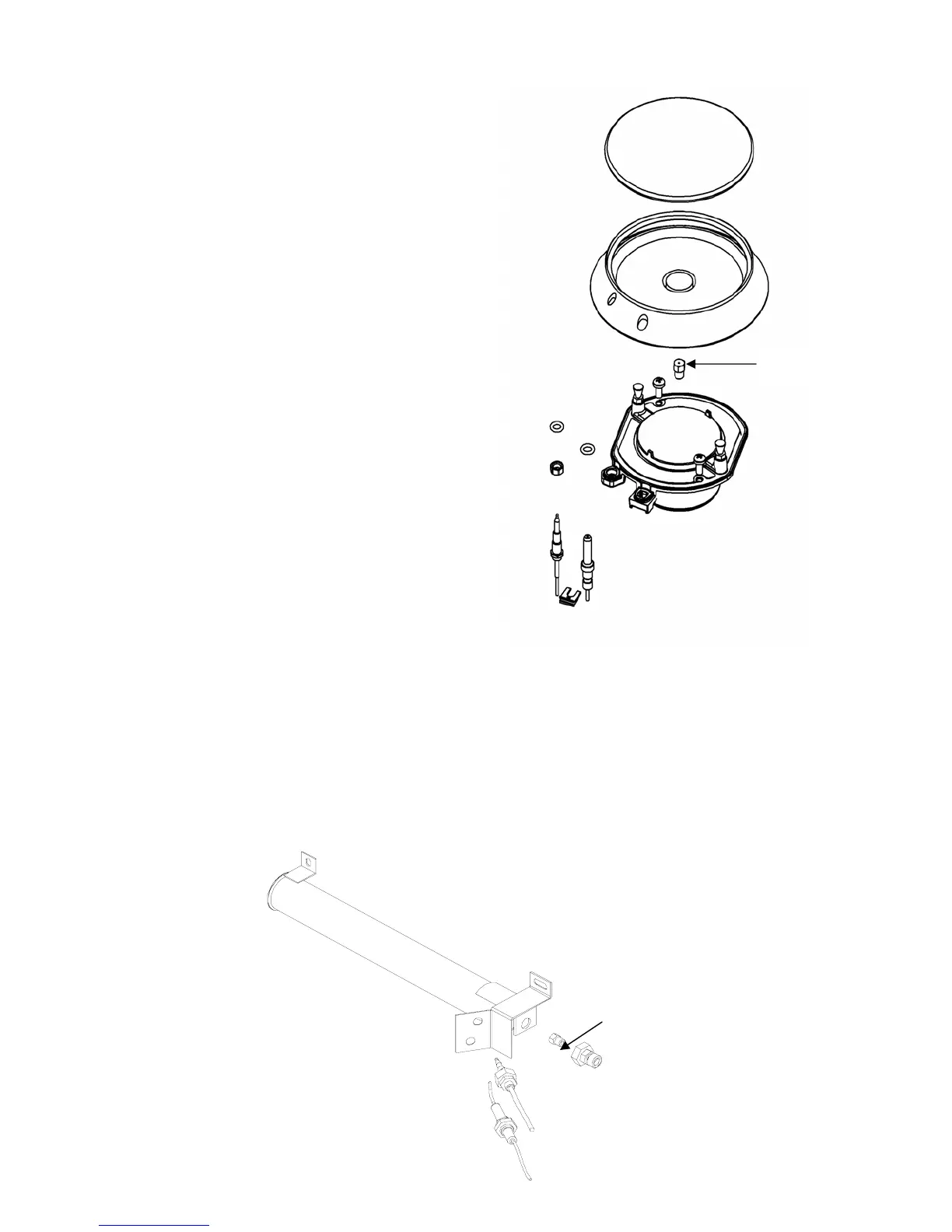

Removal of the top burner orifices:
• Twist the burner cap counter-clockwise
and lift up.
• Remove the flame spreader.
• Using an 7mm socket unscrew
and remove the brass orifice.
• Re-assemble the burner before use
insuring the burner cap is attached.
Removal of the oven orifice:
• Unscrew the oven burner bracket from the back of the stove.
• Rotate the burner 180 degrees to gain access to the orifice.
• Remove the orifice from the orifice holder with a 7mm wrench.
• Re-assemble the burner before use.
