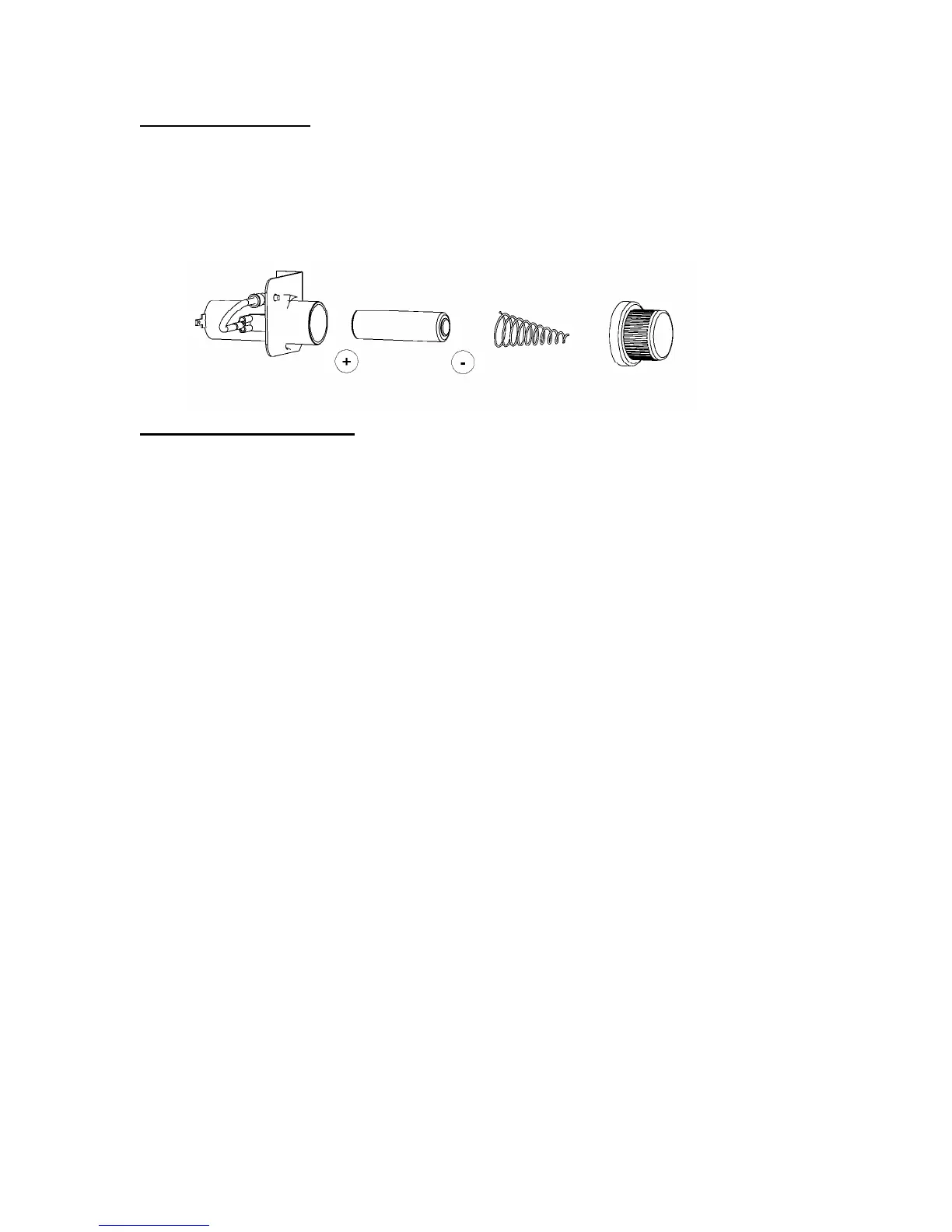

Changing the battery
The electronic ignition system is powered from a AA 1.5 Volt Battery. The Battery
holder is located at the back of the stove, under the door.
To change the battery, unscrew the black cap. Remember to respect the polarity.
Replacing a Thermocouple
Tools Required: Phillips Head screwdriver
8mm open wrench
Top Burners
1. Remove the top Grill
2. Remove the top tray
• Remove all the burner caps
• Remove the flame spreaders
• Un-screw the burner cup from the top tray by removing the (2) screws on each
burner cup.
• Remove the front control panel by removing the (3) screws on the front of the
top tray.
• Detach the top tray from the body by un-screwing the (3) screws on both the
right and left side.
3. Disconnect the thermocouple from the valve by sliding the spade connector off
the back of the valve. (This connection is under a black plastic cap)
4. Using an 8mm wrench, remove the brass thermocouple nut. The thermocouple
head will come out from the bottom.
Oven and Broiler
1. Remove the top tray and control panel as described above.
2. Using an 8mm wrench unscrew the thermocouple nut from the back of the
thermostatic valve.
3. Unscrew the thermocouple head from the bracket on the oven burner or broiler.
