ForceDoor BASE 35 - Page 13

11

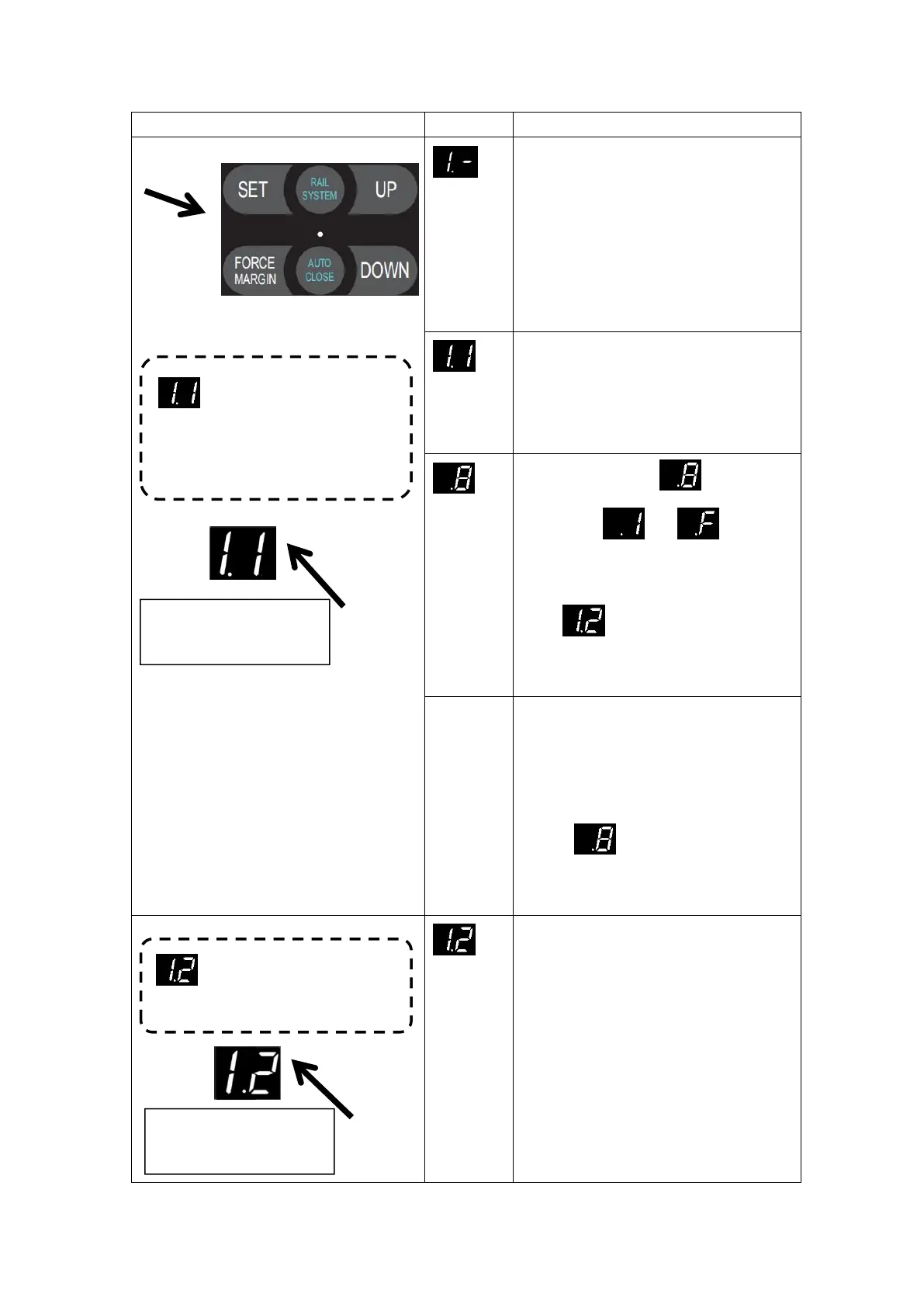

Fine adjustment of the open
limit position
mode.
Reversal Distance Ignorance Setting
(Fine adjustment of the pre-close
limit position- for DW）
 Press and hold SET button for
about 6 seconds to enter main
menu until “0.-” appears on the
display then release the button.
 Press UP till “1.-” appears on the
display.
 Press SET and “1.0” appears on
the display,
 Press UP till “1.1” appears on the
display.
 Press SET to enter the Reversal
Distance Ignorance Setting
The digital flashes ，Adjust the
stalls from to by button
UP or DOWN，Press SET to confirm the
function option, automatically exit to the
menu to continue setting the next
function menu, or press the RETURN
button to exit the function setting.
Remark:
According to the door rail system and the
size of the cable drum, the adjustment
range of each setting is between 20 mm
-50 mm (Based on the different cable
drum installed).
Default is about 35mm.
The calculation format is like this:
[8] * 2* 2.2mm
 Press and hold SET button for
about 6 seconds to enter main
menu until “0.-” appears on the
display then release the button.
 Press UP till “1.-” appears on the
display.
 Press SET then “1.0” appears on
the display.
 Press UP till “1.2” appears on the
display,
[Press UP from (1.0)]
[Press UP from (1.1)]
