ForceDoor BASE 35 - Page 27

25
means ： 10 minutes ；
default：Represents 3 minutes
The relay is closed during door drive
operation.
When the door drive running, the relay
flashes at a frequency of 1HZ (externally
extended warning light function)
Relay no action
Remark:
default.
The customer can set the function according
to the specific application and choose the
appropriate function with the Normal-Open
(NO) and Normal-Close (NC) function of the
relay.

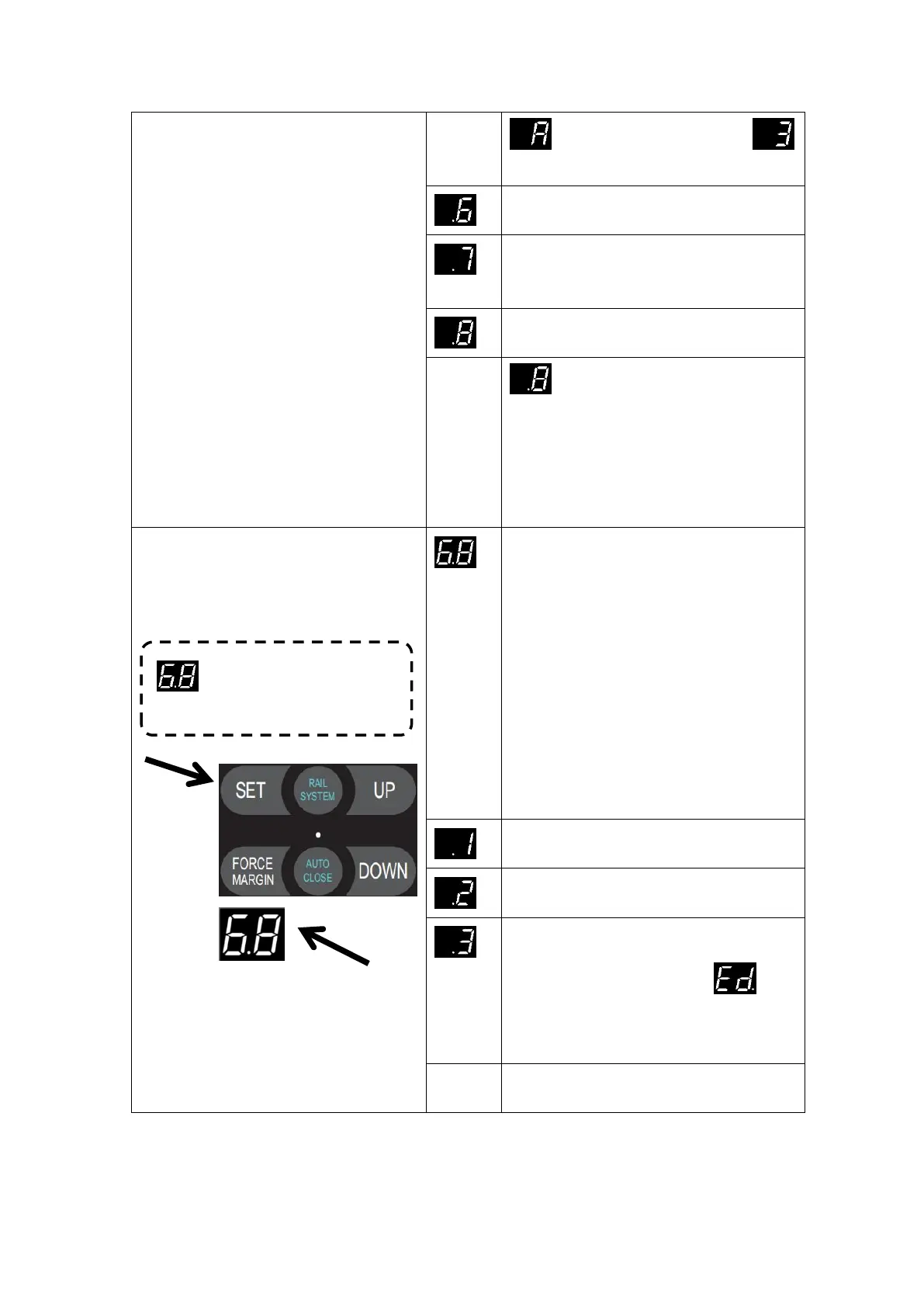

 Press and hold SET button for about
6 seconds to enter main menu until
“0.-” appears on the display then
release the button.
 Press UP till “6.-” appears on the
display.
 Press SET then appears “6.0” on the
display
 Press UP till “6.8” appears on the
display.
 Press SET enter into Safety device
port function selection
Electrical safety edge
（Use 8.2K resistor without self-test）.
Optical safety edge
（Three-wire infrared photo eyes.）
Air pressure switch (DW)
Note: Use 8.2K resistor for the DW
self-test. Fault display code
appears when the DW self learn was failed,
refer to the fault report page for a solution
accordingly.
Remark:
8.2K resistor is used to short-circuit the
safety port by default.
Safety device port function selection
