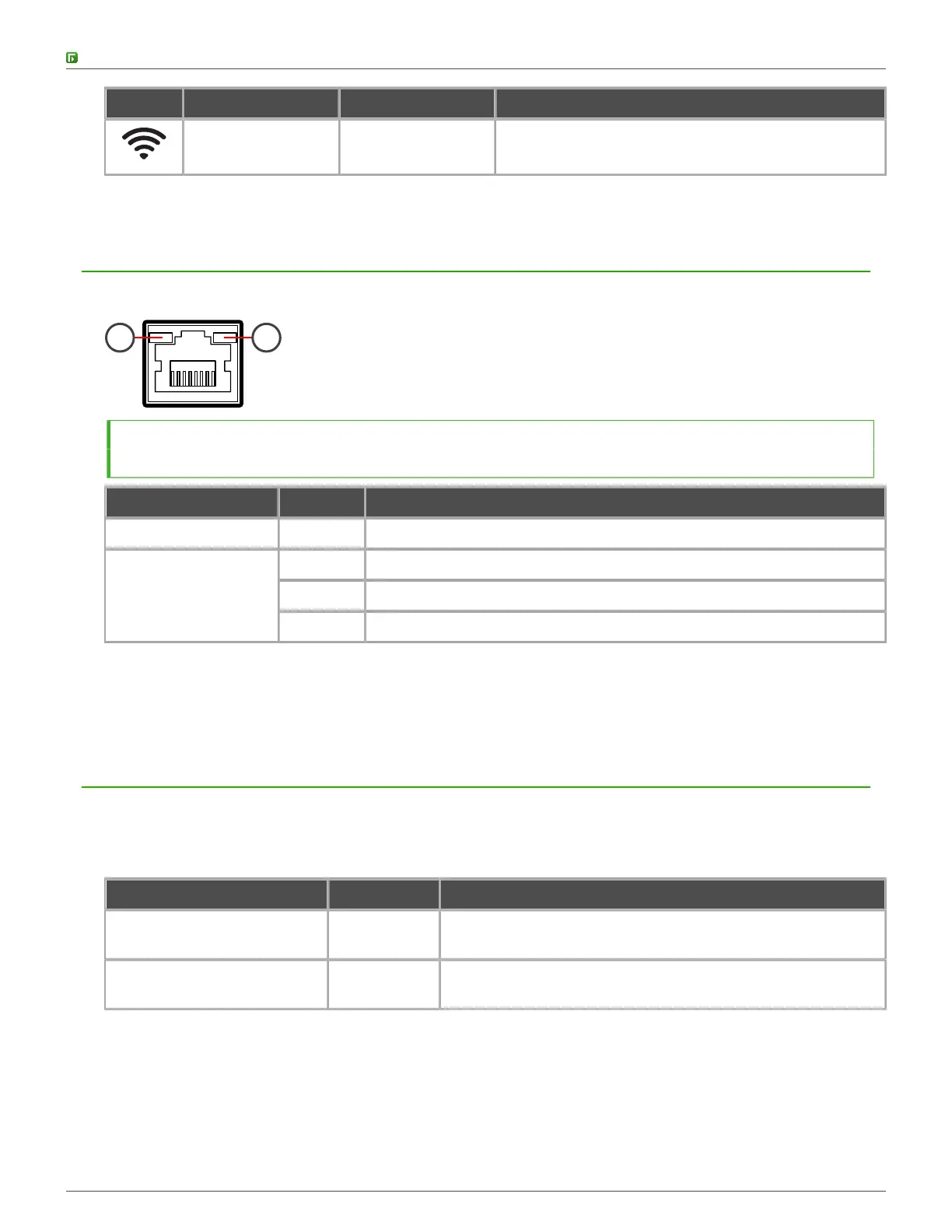

Forcepoint Next Generation Firewall Hardware Guide | Models 330, 331, 335, 335W
Icon Indicator Color Description
Wireless status
(Model 335W only)
Green The wireless interface is configured as a wireless
access point and is active.
Ethernet port indicators
Ethernet port indicators show the status and speed of the network ports.
1 2
1 Activity/link indicator
2 Link speed indicator
Indicator Color Description
Activity/link indicator Green Link OK. Flashes on activity.
Unlit 10 Mbps link.
Amber 100 Mbps link.
Link speed indicator
Green 1 Gbps link.
Ethernet port names for appliances with
interface modules
Ethernet port names are based on the slot and port numbers.
The first number in the name represents the slot on the appliance. The second number represents the port on the
slot. For example, eth2_0 is located on port 0 of slot 2.
Component Slot number Port numbers
Fixed Ethernet ports 0 eth0_0, eth0_1, eth0_2, eth0_3, eth0_4, eth0_5, eth0_6, and
eth0_7 from left to right.
Interface module ports 1–2 from left
to right
The port numbers start from 0 and increase from left to right.
For example, the port farthest to the left in slot 1 is eth1_0.
6
