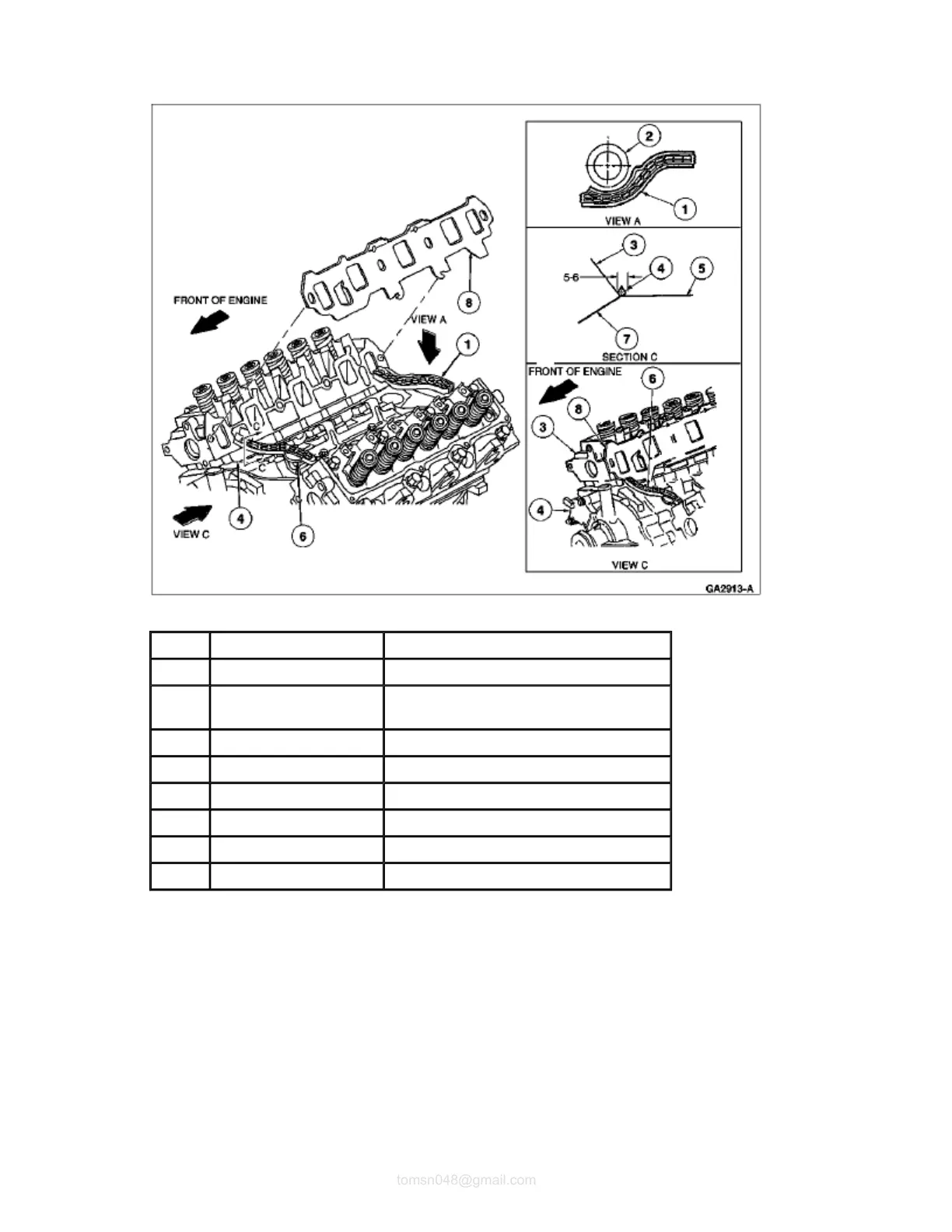

5. Install front and rear intake manifold seals as shown in the illustration. Secure with retaining features.
6. Lower intake manifold into position aligning manifold bolt holes to those in the cylinder head. Use
care to prevent disturbing the rubber sealer which can cause sealing voids. Install bolts 1, 2, 3 and 4
and hand-snug. Install remaining bolts and tighten in a two-step process. Tighten in numerical
sequence to 15 Nm (11 lb-ft), then again to 26-32 Nm (19-24 lb-ft).
Intake Manifold Bolt Torquing Sequence
Item Part Number Description
1 9A424 Seal, Intake Manifold, Rear
2 — Distributor Hole
(Part of Cylinder Block)
3 6049 Cylinder Head
4 ESE-M4G195-B Sealer (4 places)
5 6010 Cylinder Blocks
6 9A424 Seal, Intake Manifold, Front
7 6051 Head Gasket
8 9439 Intake Manifold Gasket
