WHEELS AND
TYRES SECTION E
The lable below lists notch settings
for different track positions.
Track Position
inches (centimetres)
52. 56
(132-1.
142-2)
60(152-4)
64(162-6)
68(172-7)
72,
80"
(182-9,
203-2*1
76(193-0)
Reverse wheels.

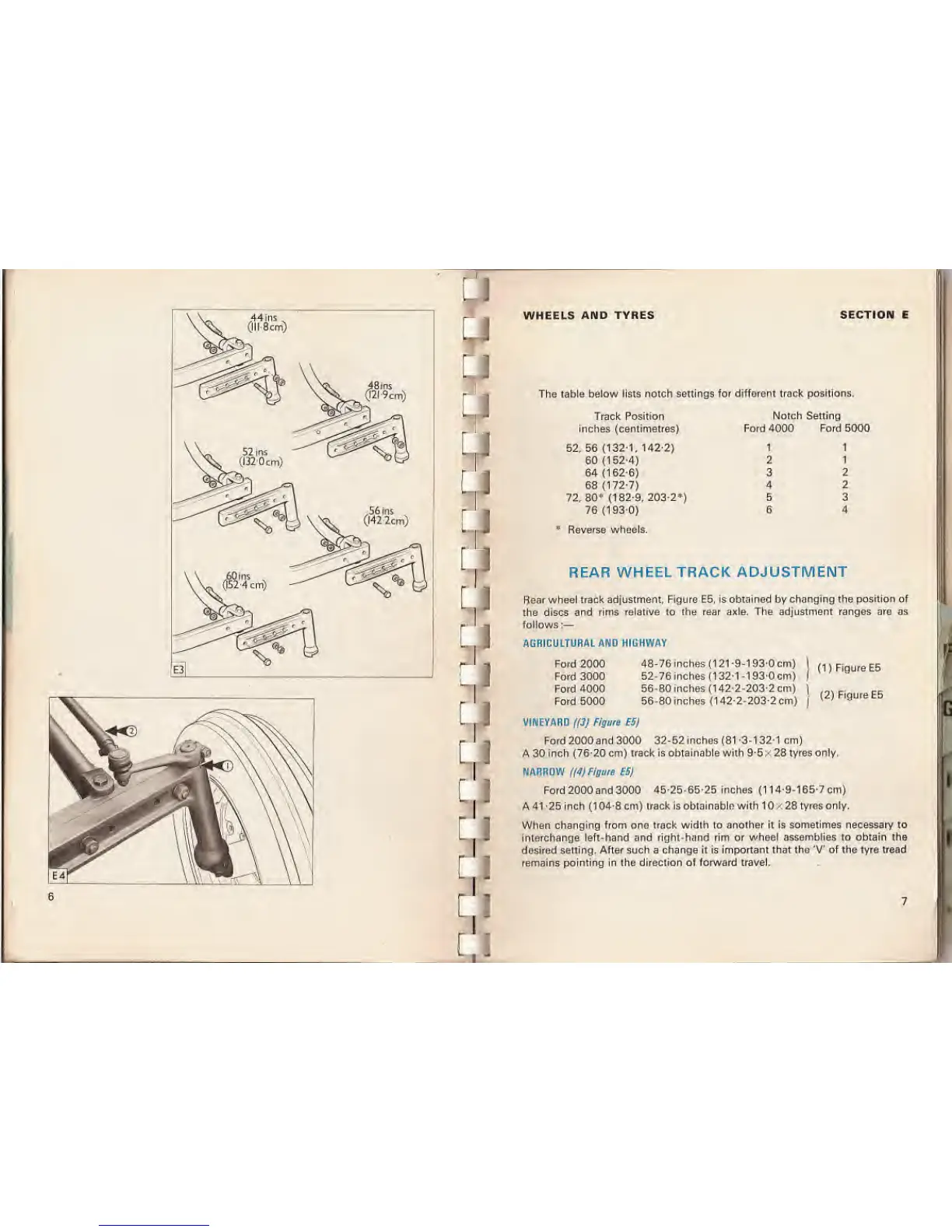

REAR WHEEL TRACK ADJUSTMENT
Rear wheel track adjustment. Figure E5, is
obtained
by
changing the position of
the discs and
rims relative to the rear axle. The adjustment ranges
are
as
fallows
:
—
Notch Setting
Ford 4000 Ford 5000
1 1
2 1
3
2
4
2
5 3
6 4
AGRICULTURAL AND HIGHWAY
Ford 2000
48-76 inches
(1
21
-9-1
930 cm)
Ford 3000
52-76
inches (1
32-1 -1 93-0 cm)
Ford 4000
56-80 inches (142-2-203-2 cm)
Ford 5000
56-80 inches (142-2-203-2 cm)
(1)
Figure E5
(2)
Figure
E5
VINEYARD
f(3)
Figure E5)
Ford 2000 and 3000
32-52 inches
(81
-3-132-1
cm)
A 30 inch
(76-20
cm) track is obtainable with 9-5x 28
tyres only.
NARROW
((4)
Figure E5)
Ford 2000 and
3000
45-25-65-25
inches
(114-9-165-7
cm)
A
41
-25
inch
(104-8
cm) track is obtainable
with
10x28
tyres only.
When changing from one track width to another it is sometimes necessary to
interchange left-hand
and right-hand rim or wheel assemblies to obtain the
desired setting. After such a change it is
important that the 'V of the tyre tread
remains pointing in the direction of forward travel.
