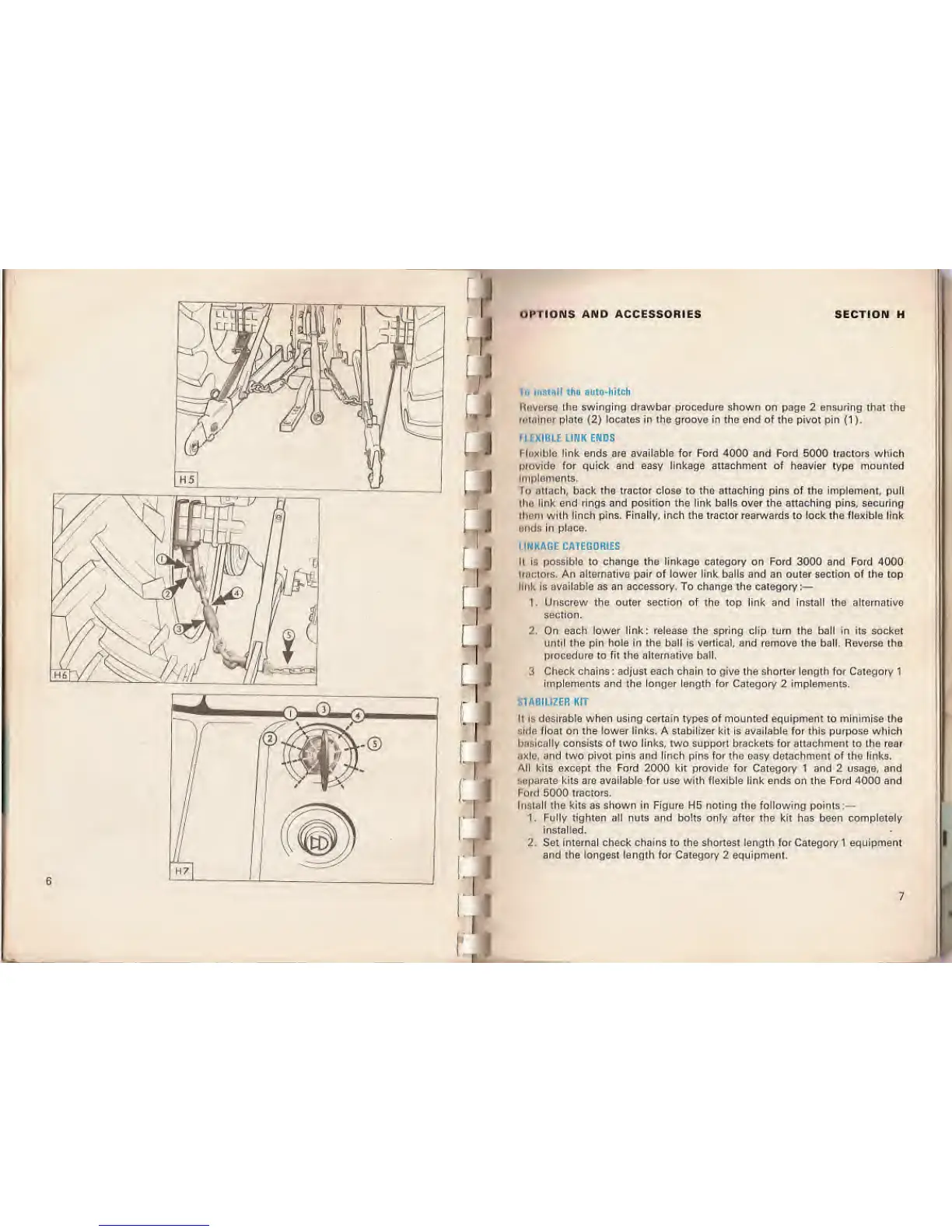

OPTIONS AND ACCESSORIES SECTION H
i
Stall
the auto-hitch
Reverse Ihe swinging drawbar procedure shown on page 2 ensuring that the
retainer
plate (2)
locates in the groove in the end
of
the
pivot pin
(1
).
FLEXIBLE LINK ENDS
Flexible
link
ends are
available for
Ford
4000
and Ford 5000 traclors which
provide for
quick
and easy linkage attachment of heavier type mounted
Implements.
To attach,
back the tractor close to the attaching pins of the implement,
pull
the link end rings and
position
the link balls over the attaching pins, securing
them
with (inch
pins.
Finally, inch the tractor rearwards to lock the flexible link
onds in place.
LINKAGE CATEGORIES
II is
possible to change the linkage category
on
Ford
3000 and Ford 4000
tractors. An alternative
pair of lower link balls
and an outer section of the (op
link is available as an accessory. To change the category:
—
1
.
Unscrew the outer section of
the top
link
and
install the alternative
section.
2. On each lower link: release the spring clip turn the ball in its socket
until the pin hole in the ball is vertical, and remove the ball. Reverse the
procedure to fit the alternative ball.
3 Check chains : adjust each chain to give the shorter length for Category 1
implements and the longer length for Category 2 implements.
STABILIZER
KIT
It is desirable when using
certain
types of mounted equipment to minimise the
side float on the
lower
links. A stabilizer kit is available for this purpose which
basically consists of two links, two support brackets for attachment to the rear
axle, and two pivot pins and linch pins for the
easy
detachment of
tho
links.
All kits except the Ford 2000 kit provide for
Category 1 and 2 usage, and
separate kits are available for use with flexible link ends on the Ford 4000 and
Ford 5000
tractors.
Install the kits as shown in Figure H5 noting the following points
:
—
1.
Fully tighten all nuts and bolts only
after the
kit
has been
completely
installed.
2. Set internal check chains to the shortest length for Category 1 equipment
and the longest length for
Category
2 equipment.
