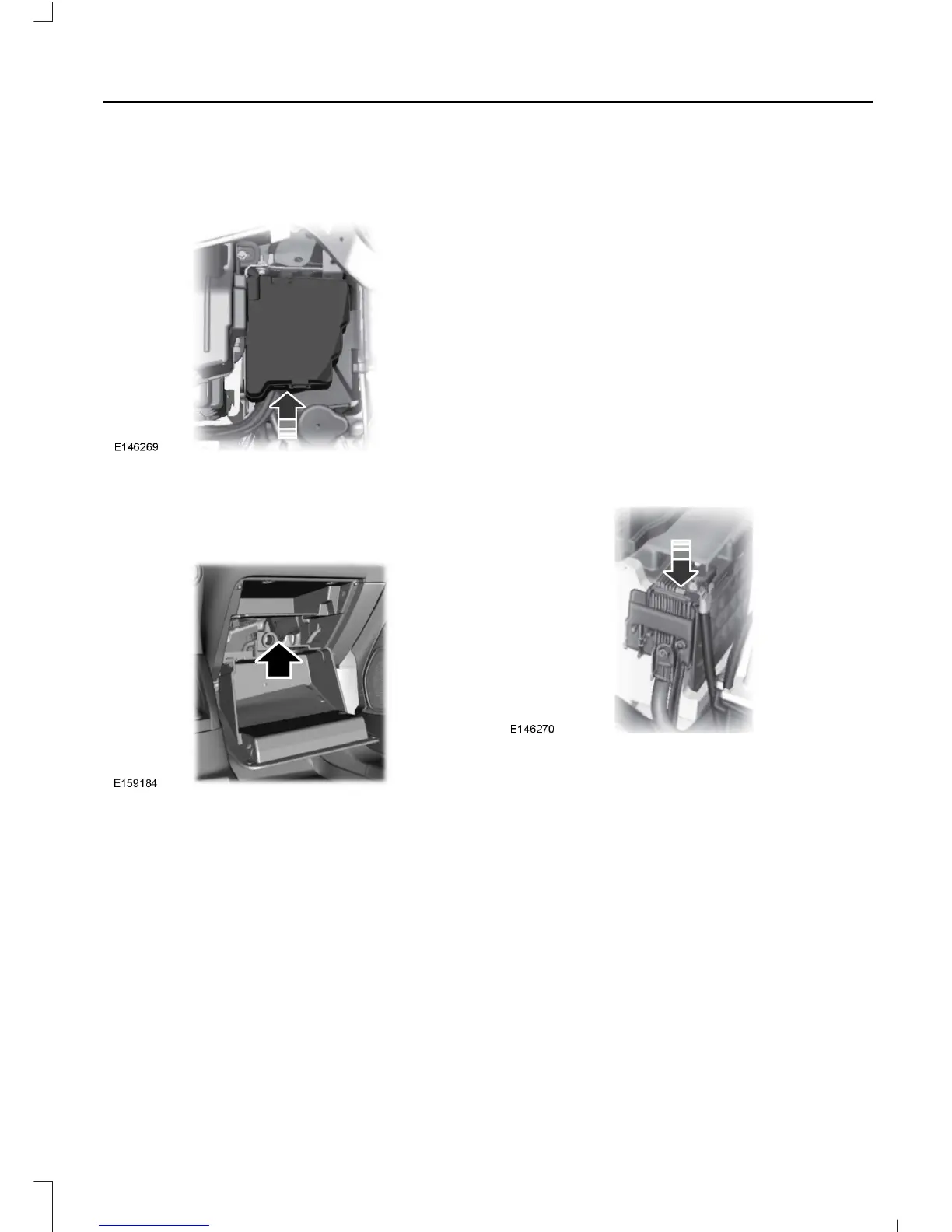

FUSE BOX LOCATIONS
Engine Compartment Fuse Box
This fuse box is located in the engine
compartment.
Passenger Compartment Fuse Box
This fuse box is located behind the glove
box. To access the fuse box, do the
following:
1. Open the glove box and empty the
contents.
2. Remove the four screws and then
remove the shelf in the glove box.
3. Remove the side cover.
4. Remove the glove box assembly.
Note: Any improper modification to the
electrical system can compromise the
safety of the vehicle, implying risk of fire or
engine damage. For any clarifications or
questions, contact a Ford Distributor.
Battery Fuse Box
This fuse box in attached to the battery
positive terminal.
121
Ecosport (CBW) Vehicles Built From: 01-12-2014 Vehicles Built Up To: 29-03-2015, CG3590en enGBR, Edition date: 08/2014, First Printing
