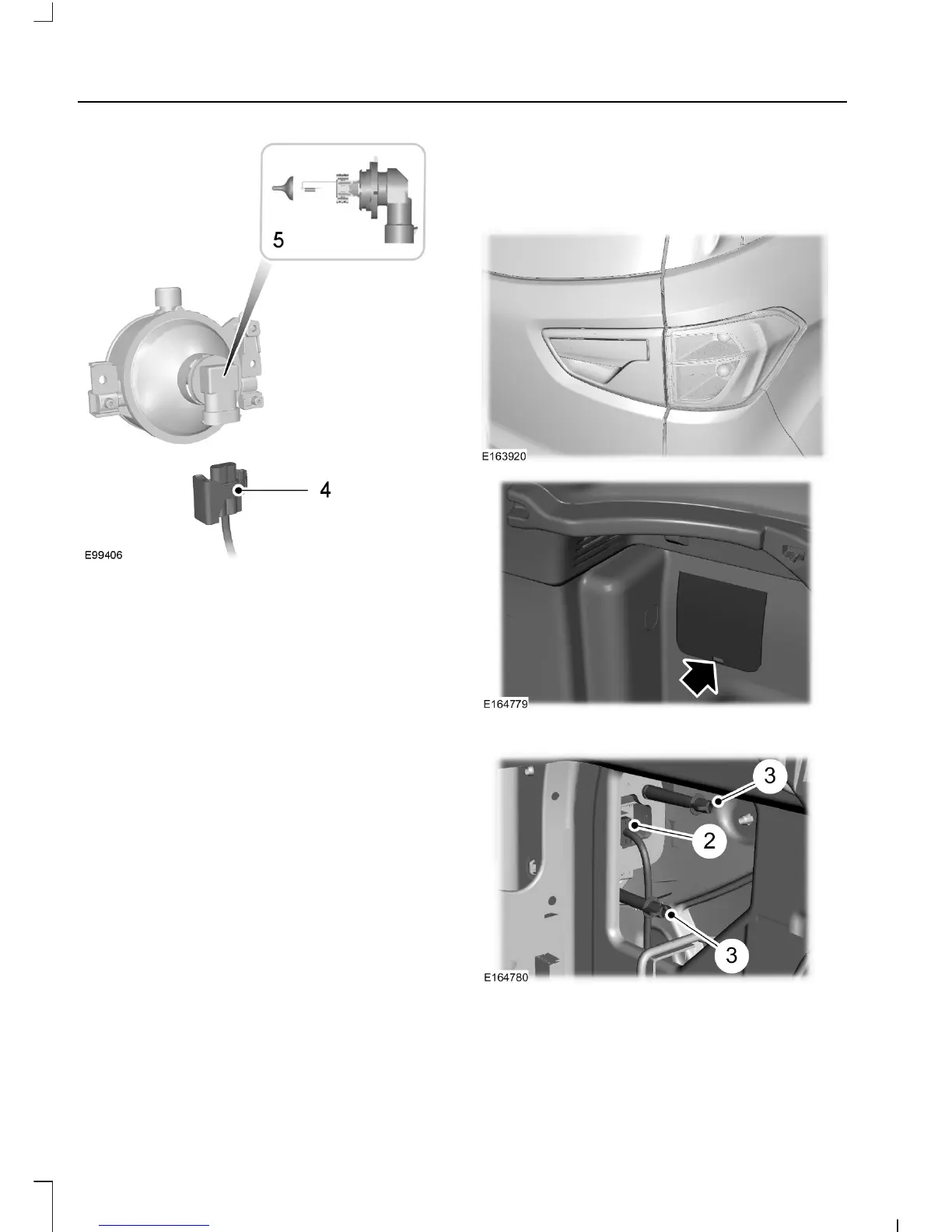

Note: .
1. Disconnect the electrical connector.
2. Turn the bulb holder anti-clockwise.
3. Remove the fog lamp bulb and holder
assembly.
4. Connect the electrical connector.
5. Install a new fog lamp assembly.
Rear Lamps
Direction Indicator, Tail and Brake
Lamp
1. Remove the trim panel.
2. Disconnect the electrical connector.
3. Remove the wing nuts.
4. Remove the lamp.
144
Ecosport (CBW) Vehicles Built From: 01-12-2014 Vehicles Built Up To: 29-03-2015, CG3590en enGBR, Edition date: 08/2014, First Printing
Maintenance
