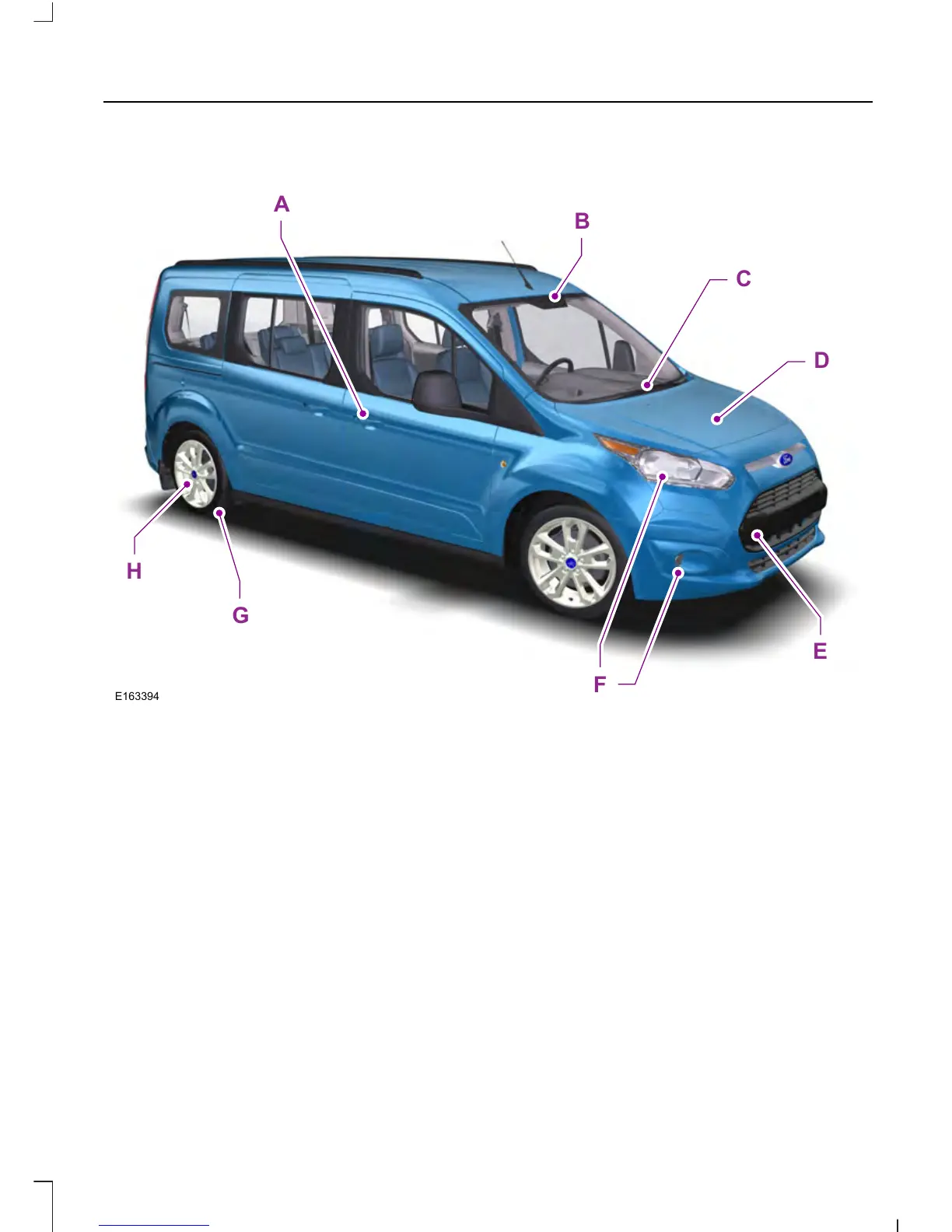

FRONT EXTERIOR OVERVIEW

E163394

See Locking and Unlocking (page 54).A

See Steering (page 140).B

See Changing the Wiper Blades (page 194).C

See Maintenance (page 185).D

See Towing Points (page 157).E

See Changing a Bulb (page 197).F

Tire pressures. See Technical Specifications (page 244).G

See Changing a Road Wheel (page 239).H

Transit Connect (CHC) Canada/United States of America, enUSA, First Printing
