Ford 2015 TRANSIT CONNECT User Manual

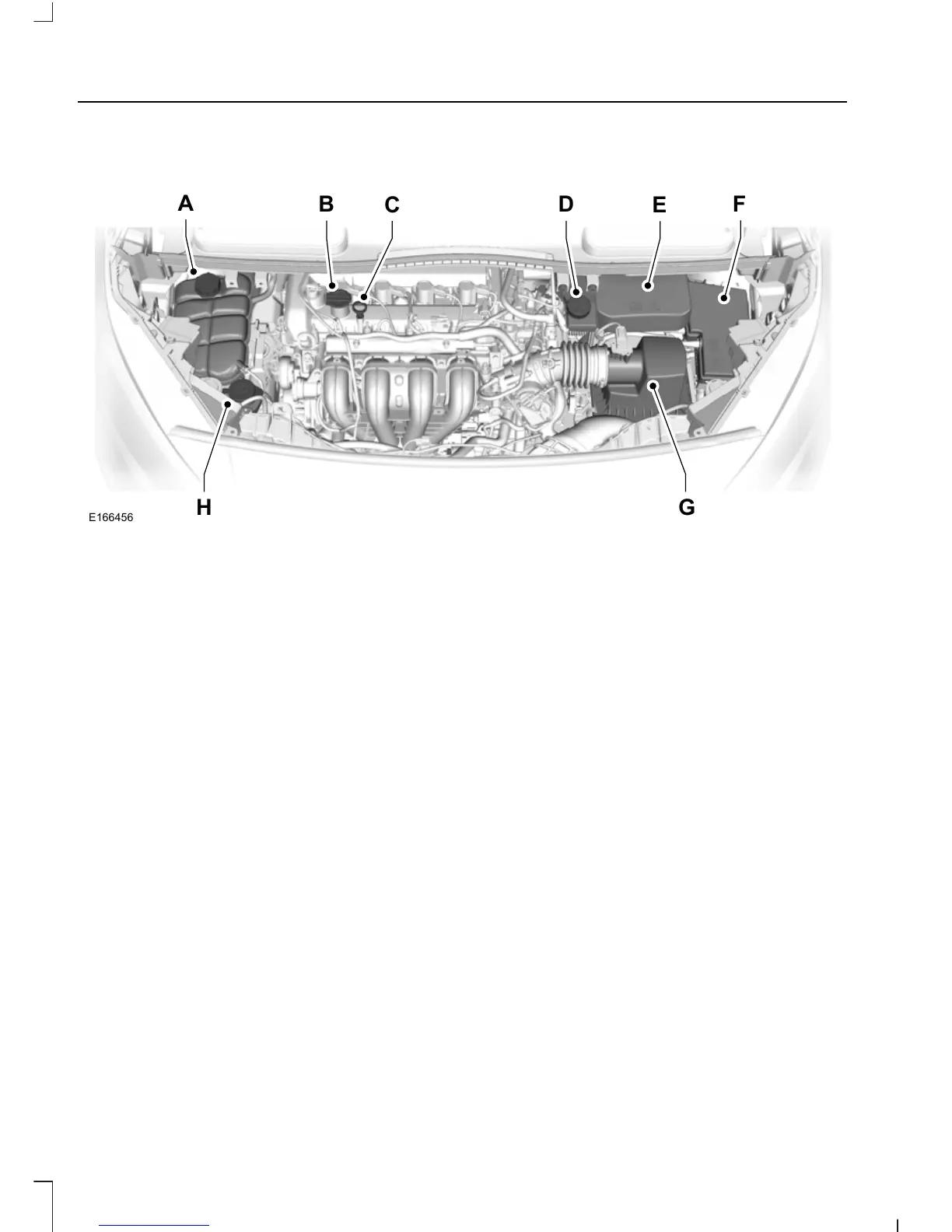

UNDER HOOD OVERVIEW - 2.5L
B
C
A
H G
D
E
F
E166456
Engine coolant reservoir
*
: See Engine Coolant Check (page 190).A
Engine oil filler cap
*
: See Engine Oil Check (page 189).B
Engine oil dipstick
*
: See Engine Oil Check (page 189).C
Brake and clutch fluid reservoir
*
: See Brake Fluid Check (page 192).D
Battery: See Changing the 12V Battery (page 193).E
Engine compartment fuse box: See Fuses (page 174).F
Air cleaner: See Changing the Engine Air Filter (page 204).G
Windshield and rear window washer fluid reservoir: See Washer Fluid Check
(page 192).
H
*
The filler caps and the engine oil dipstick are colored for easy identification.
188
Transit Connect (CHC) Canada/United States of America, enUSA, First Printing
Maintenance
