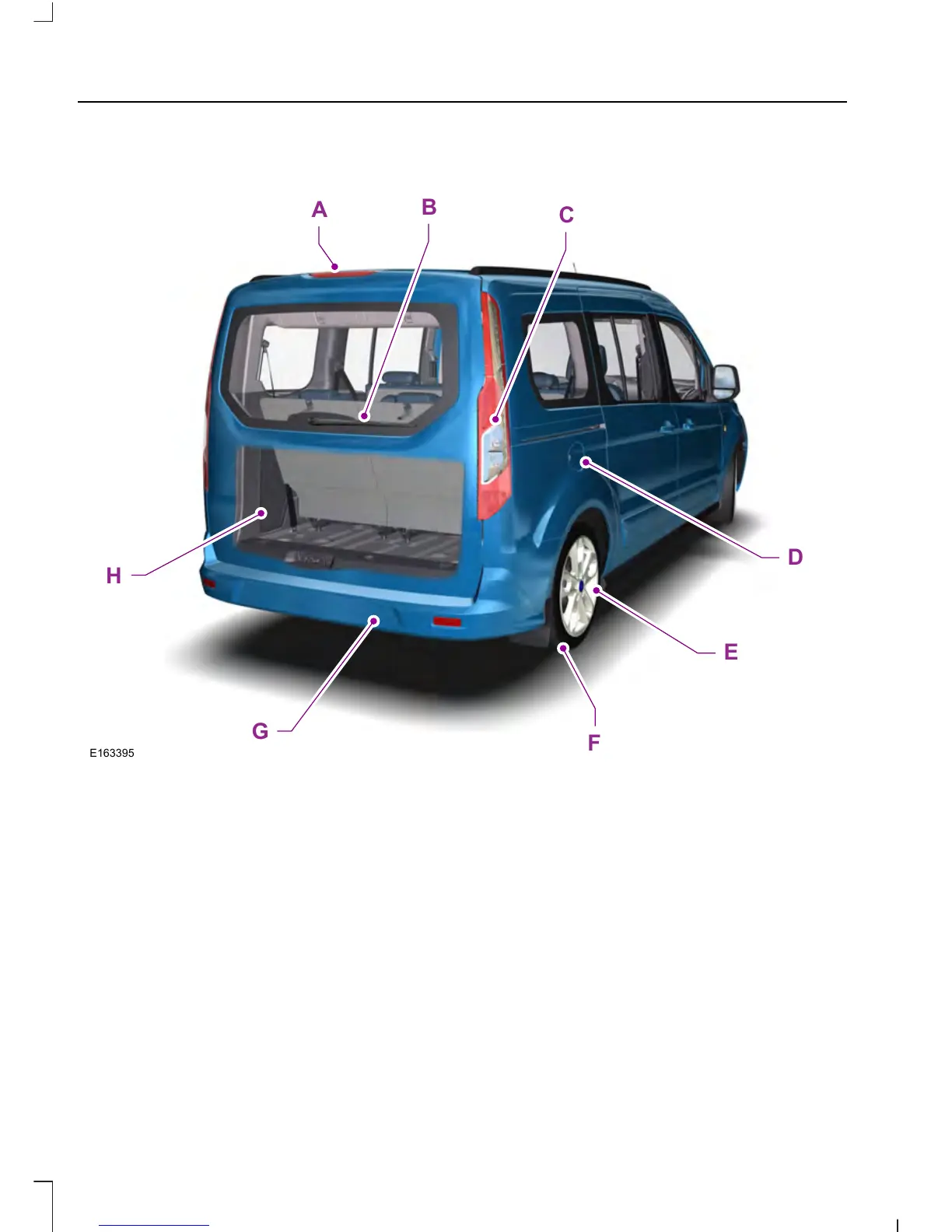

REAR EXTERIOR OVERVIEW

E163395

See Changing a Bulb (page 197).A

See Changing the Wiper Blades (page 194).B

See Changing a Bulb (page 197).C

See Refueling (page 121).D

See Changing a Road Wheel (page 239).E

Tire pressures. See Technical Specifications (page 244).F

See Towing Points (page 157).G

Spare wheel, jack and wheel brace. See Changing a Road Wheel (page 239).

Towing eye. See Towing Points (page 157).
