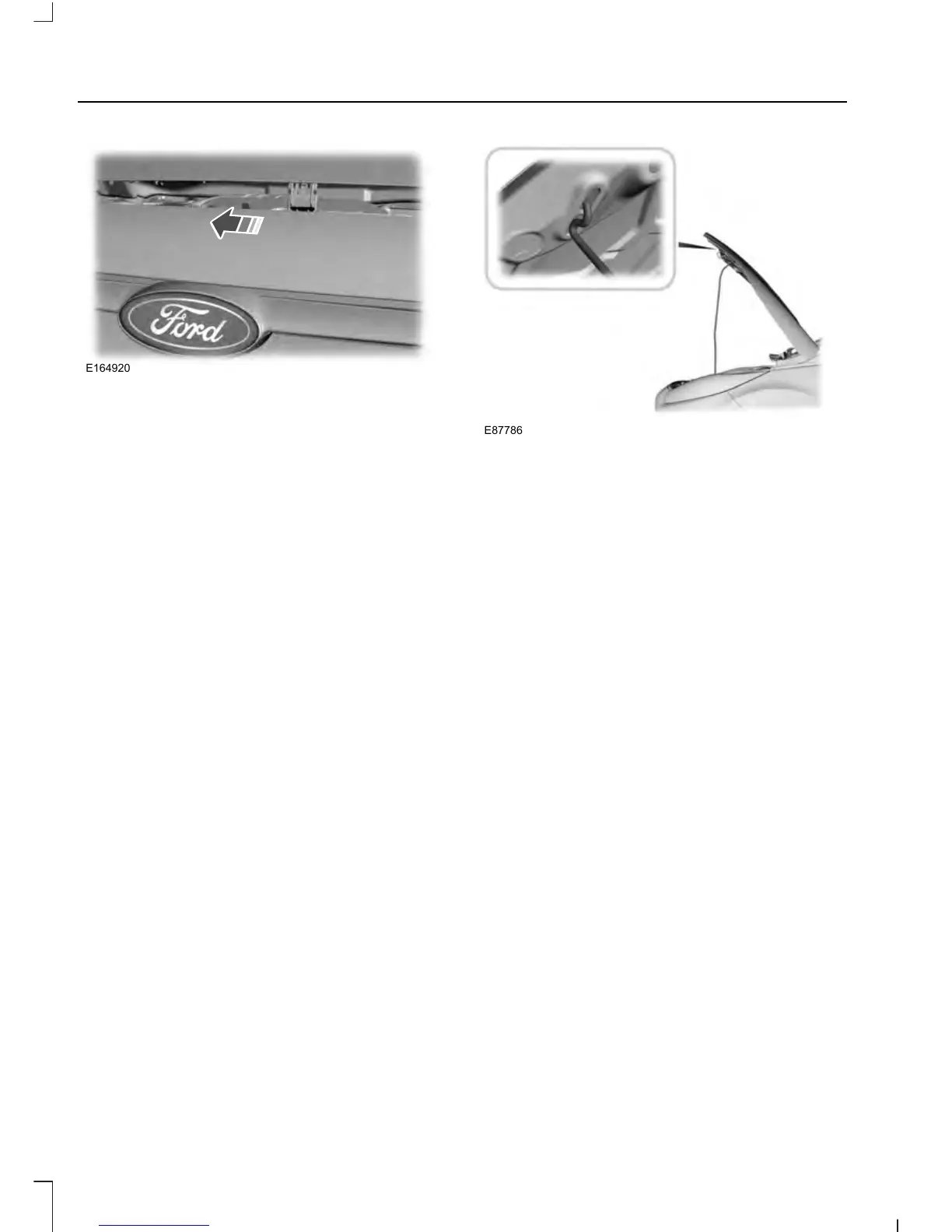

E164920

3. Move the catch to the left.

E87786

4. Open the hood and support it with the

support rod.

Closing the Hood

1. Remove the support rod from the catch

and secure correctly.

2. Lower the hood and allow it to drop

under its own weight for the last 8

inches to 12 inches (20 centimeters

to 30 centimeters).

Note: Make sure the hood is fully closed.

186
