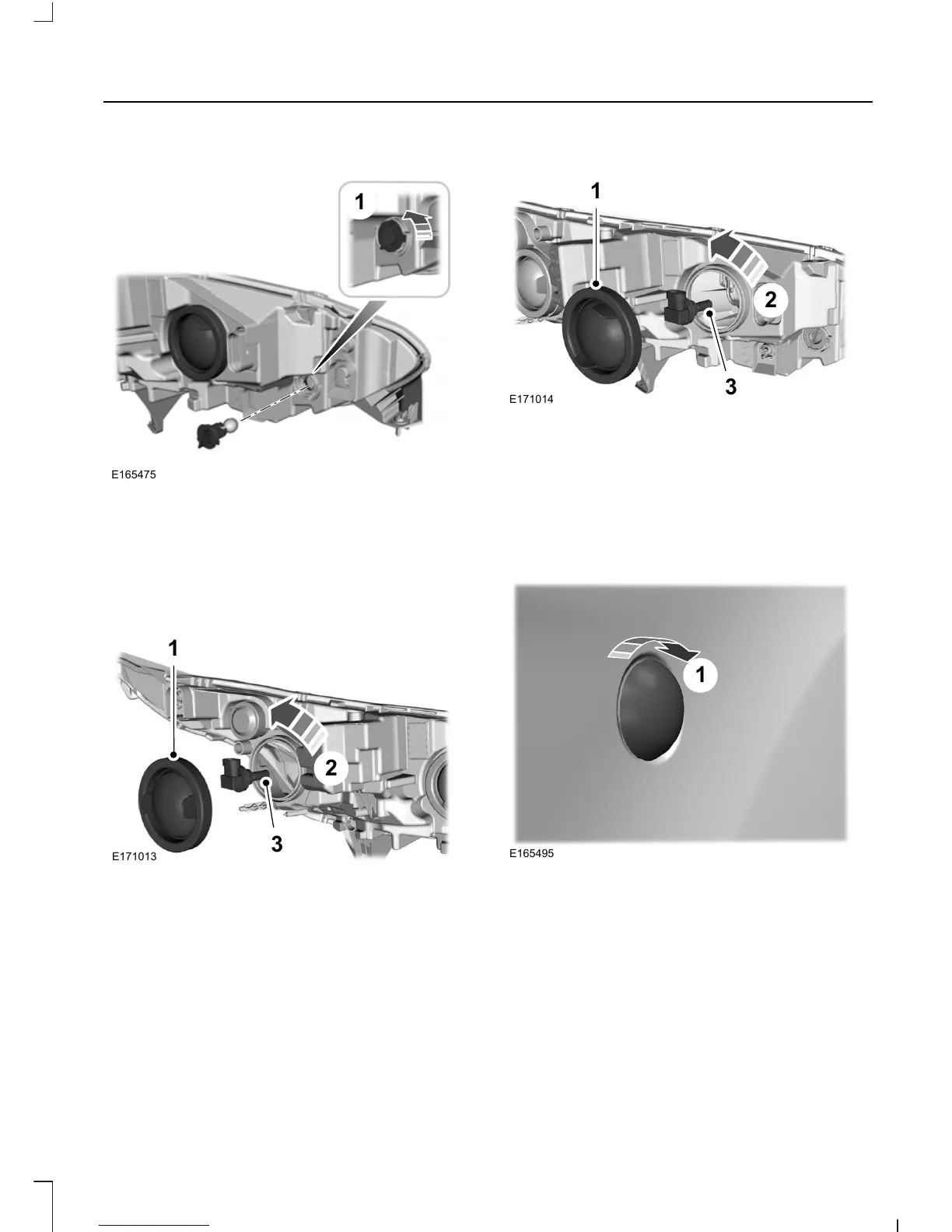

Direction Indicator

E165475

1. Turn the bulb holder counterclockwise

and remove it.

Note: You cannot separate the bulb from

the bulb holder.

Headlamp Low Beam

E171013

1. Remove the cover.

2. Turn the bulb holder counterclockwise

and remove it.

3. Remove the bulb by pulling it straight

out.

Note: Do not touch the glass of the bulb.

Headlamp High Beam

E171014

1. Remove the cover.

2. Turn the bulb holder counterclockwise

and remove it.

Note: Do not touch the glass of the bulb.

Side Direction Indicator

E165495

1. Turn the lamp clockwise and remove

it.

199
