WARNINGS
Bulbs become hot when in use. Let
them cool down before you remove
them.
Use the correct specification bulb. See
Bulb Specification Chart (page 230).
The following instructions describe how to
remove the bulbs. Install in the reverse
order unless otherwise stated.
Note: LED lamps are not serviceable. See
an authorized dealer.

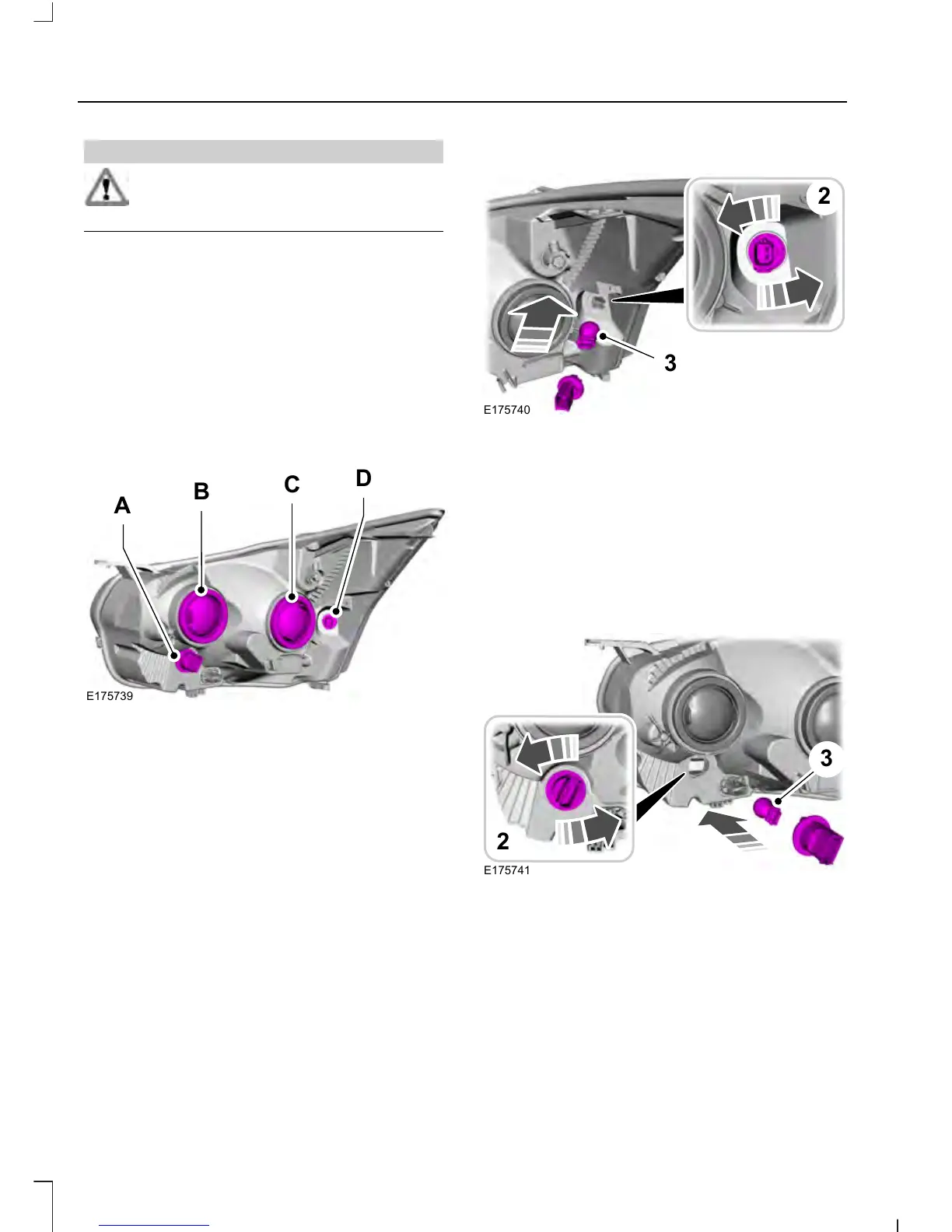

Headlamp
E175739
B
C
D
A
Parking lamp and direction
indicator lamp.
A
Headlamp high beam.B
Headlamp low beam and
daytime running lamp.
C
Side marker lamp.D
Note: You may have to remove a cover to
gain access to the bulb.
Side Marker Lamp
3
E175740
2
1. Remove the headlamp. See
Removing a Headlamp (page 225).
2. Turn the bulb holder counterclockwise
and remove it.
3. Remove the bulb by pulling it straight
out.
Parking Lamp and Direction Indicator
Lamp
3
E175741
2
1. Remove the headlamp. See
Removing a Headlamp (page 225).
2. Turn the bulb holder counterclockwise
and remove it.
3. Remove the bulb by pulling it straight
out.
226
Transit (TTH) Canada/United States of America, enUSA, First Printing
Maintenance
