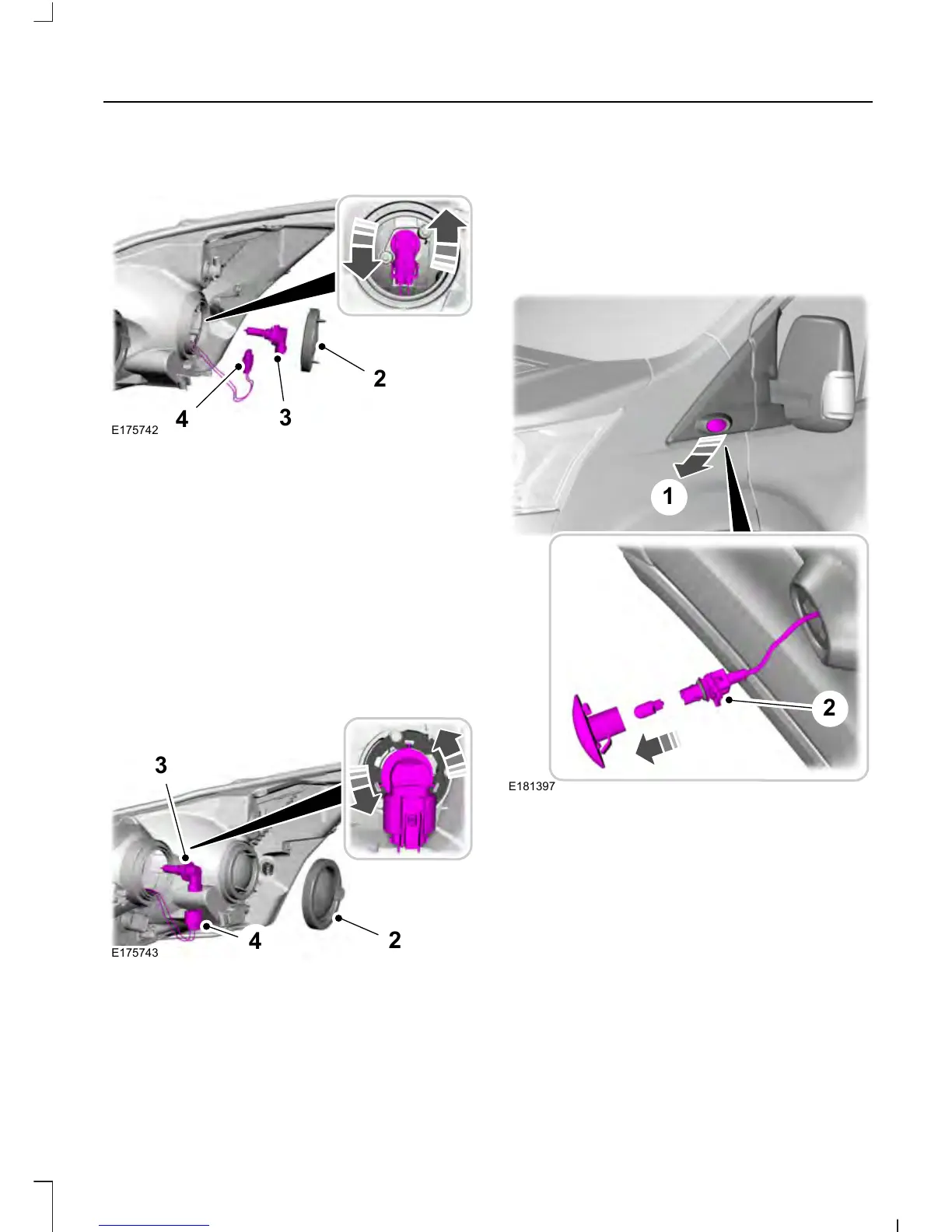

Headlamp Low Beam and Daytime
Running Lamp
1. Remove the headlamp. See
Removing a Headlamp (page 225).
2. Remove the cover.
3. Turn the bulb counterclockwise and
remove it.
4. Disconnect the electrical connector.
Note: Do not touch the bulb glass.
Note: You cannot separate the bulb from
the bulb holder.
Headlamp High Beam
1. Remove the headlamp. See
Removing a Headlamp (page 225).
2. Remove the cover.
3. Turn the bulb counterclockwise and
remove it.
4. Disconnect the electrical connector.
Note: Do not touch the bulb glass.
Note: You cannot separate the bulb from
the bulb holder.
Front Clearance Lamp (If Equipped)
1. Carefully remove the lamp.
2. Turn the bulb holder counterclockwise
and remove it.
3. Remove the bulb by pulling it straight
out.
227
Transit (TTH) Canada/United States of America, enUSA, First Printing
Maintenance
