FUSE SPECIFICATION CHART

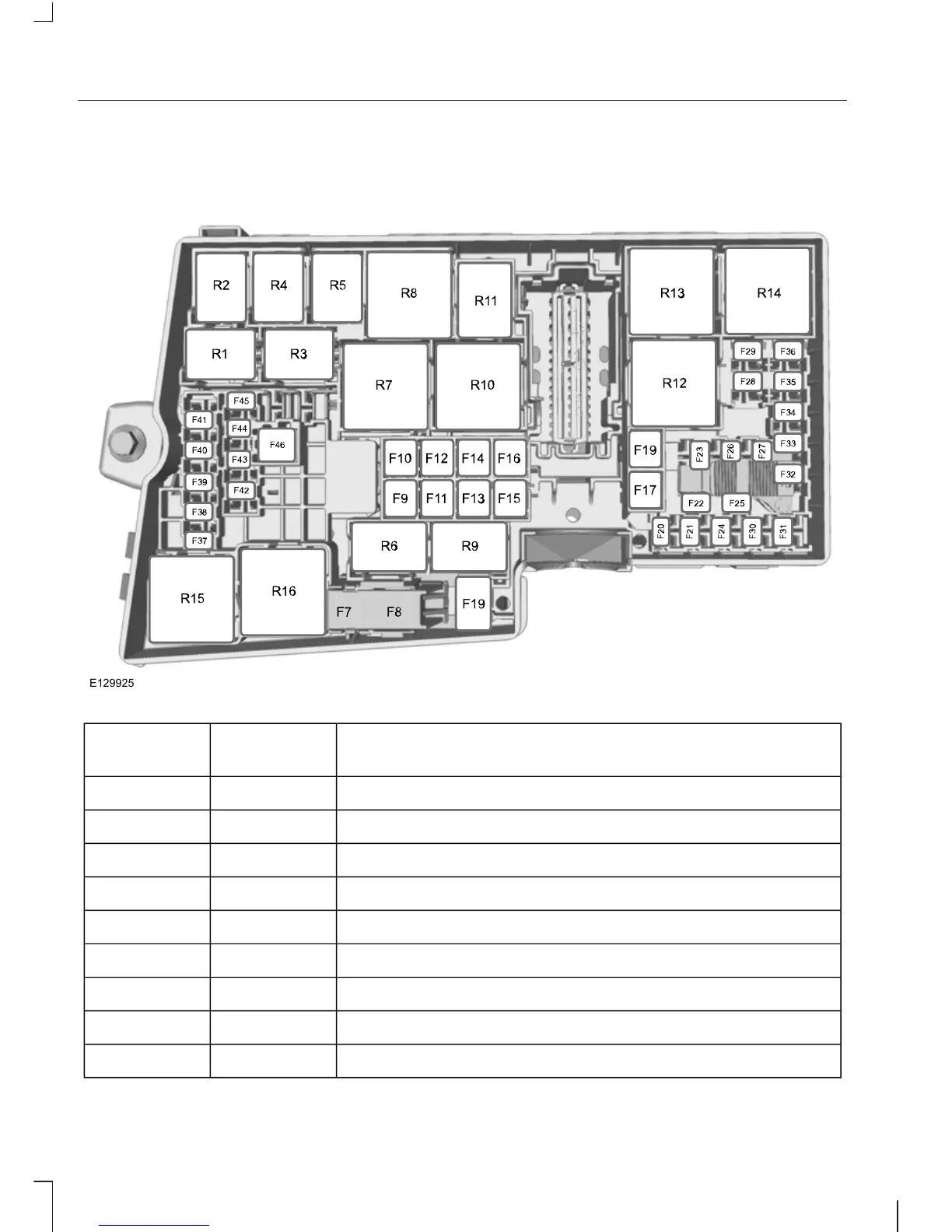

Engine compartment fuse box

E129925

Circuits protected

Ampere

rating

Fuse

ABS pump407

ABS valve308

Headlamp washer209

Heater blower4010

Not used-11

Engine Control Relay3012

Starter relay3013

Heated windscreen (right-hand side)4014

Not used-15

174
