Controls and Features
77
*
[CF25930(ALL)12/95] Floor Mats
[CF25940(ALL)02/96]
Positive retention floor mat (If equipped) (Standard in
Canada)
[CF25950(ALL)04/96]
Position the floor mat in the footwell. Place the mat eyelet over
the pointed end of the retention post from the rear and rotate
forward to install. Adjust the floor mat position to allow proper
operation of accelerator pedal, brake pedal and clutch pedal.
[CF26200(ALL)01/96]
17-1/2 pica
art:0001344-A

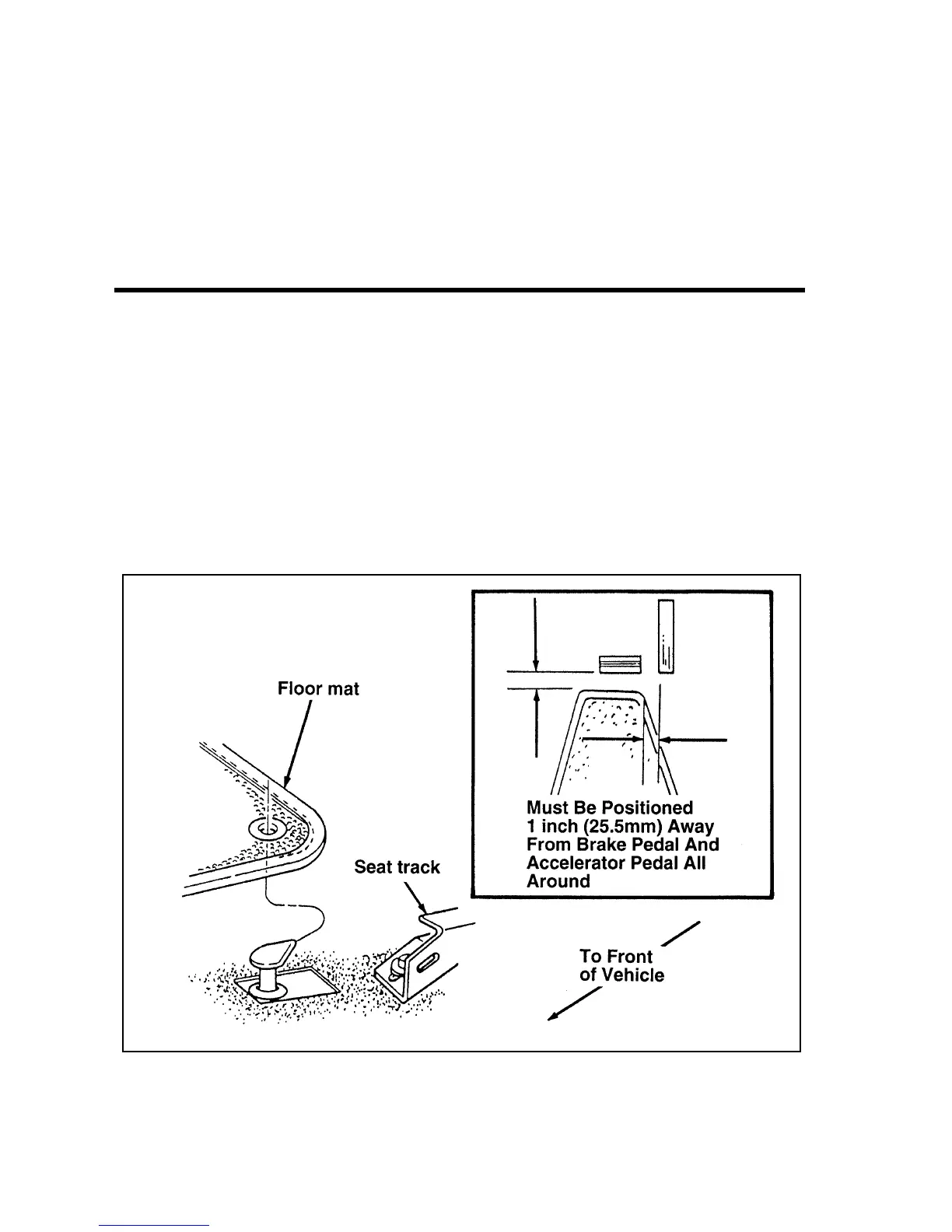

The positive retention floor mat
[CF26300(ALL)01/96]
To remove, lift the floor mat just forward of the retention post
and rotate it rearward to disengage it from the retention post.
File:05cdcfz.ex
Update:Fri May 31 14:31:06 1996
