Ford Pro 48A - Page 17

US Type Charger 48A Installation Manual Rev0.1
Ford Pro contact info: chargingsupport@fordpro.com and 1-800-34-FLEET
16

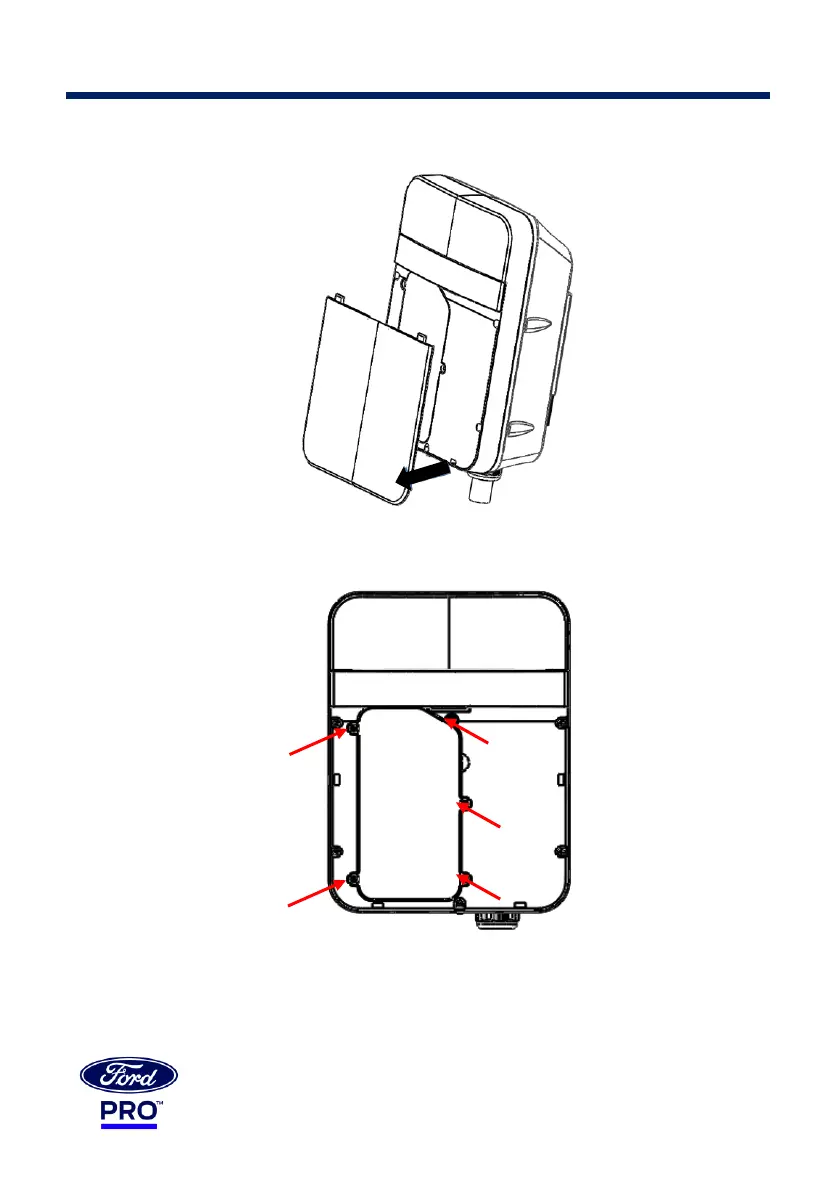

Figure 3-1 Loosen 1 pc M4 screw.
Figure 3-2 Use flat tip screwdriver to push snap then open front cover.
Figure 3-3 Loosen 5 pcs M4 screw then open install cover.
