US Type Charger 48A Installation Manual Rev0.1
Ford Pro contact info: chargingsupport@fordpro.com and 1-800-34-FLEET
3.3.2 Secure the main body mounting bracket to
the wall with appropriate screw.
Follow applicable accessibility requirements for the mounting position.
The unit shall be stored or located at a sufficient height. For indoor site,
it should not be lower than 18 inches (450 mm) and not higher than 4 feet
(1.2m). For outdoor site, it should not be lower than 24 inches (600 mm)
and not higher than 4 feet (1.2m). Refer to Article 625, NEC.
The mounting bracket has ten screw holes. If only two screws be used to
fasten the mounting bracket, the screws should pass through the middle
two screw holes of the mounting bracket. The other screw holes are
reserved for the user.

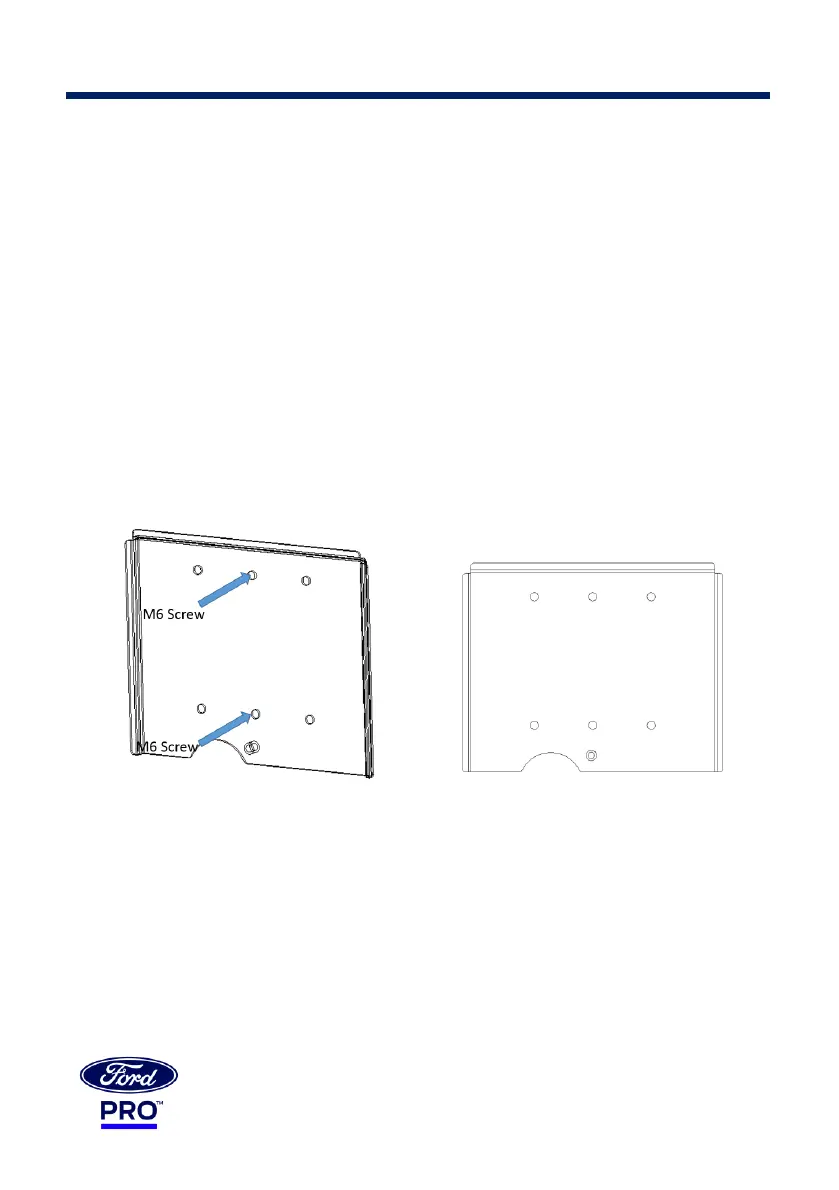

Figure 3-4 Fasten mounting bracket Figure 3-5 Screw holes of mounting
bracket
Screw sizing suggestion:
A. For masonry walls, use M6 mechanical screws. (Commercially
Available)
B. For finished walls supported by wood studs, use #12 tapping screws.
(Model Accessories)
C. Please refer to the following torque. The actual torque is according to
the wall material.
