US Type Charger 48A Installation Manual Rev0.1
Ford Pro contact info: chargingsupport@fordpro.com and 1-800-34-FLEET
2. Electrical wiring to the charge point.
2-1. Fold the wire end to pass through the conduit and insert them into
the input hole (choose input direction 1 or 2 and open cap). Please fasten
charge point onto mounting bracket if rear (2) conduit hole is used for
install.
.

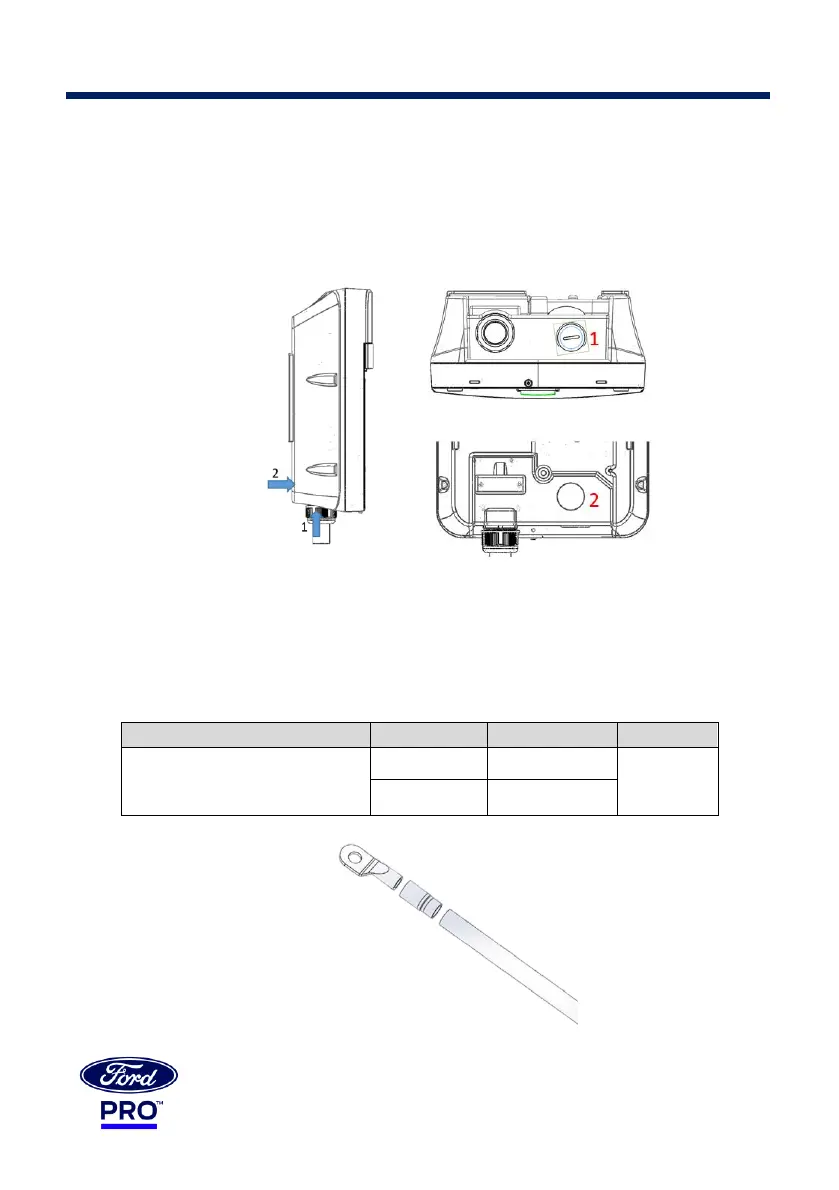

Figure 3-9 Cable input position
2-2 Crimp copper ring lug to connect copper wire. The crimp point should
be covered by heat shrink tube for protection.
Refer to local AHJ wiring requirements. (Typically, THHN, THWN-2, or
XHHW-2)
To Next Page
