US Type Charger 48A Installation Manual Rev0.1
Ford Pro contact info: chargingsupport@fordpro.com and 1-800-34-FLEET
Figure 3-10 Copper terminal, heat shrink tube and copper wire
2-3. Fasten the copper wire on the corresponding terminal block. The
wiring instruction is printed in front of the terminal block (L1/L2/G).

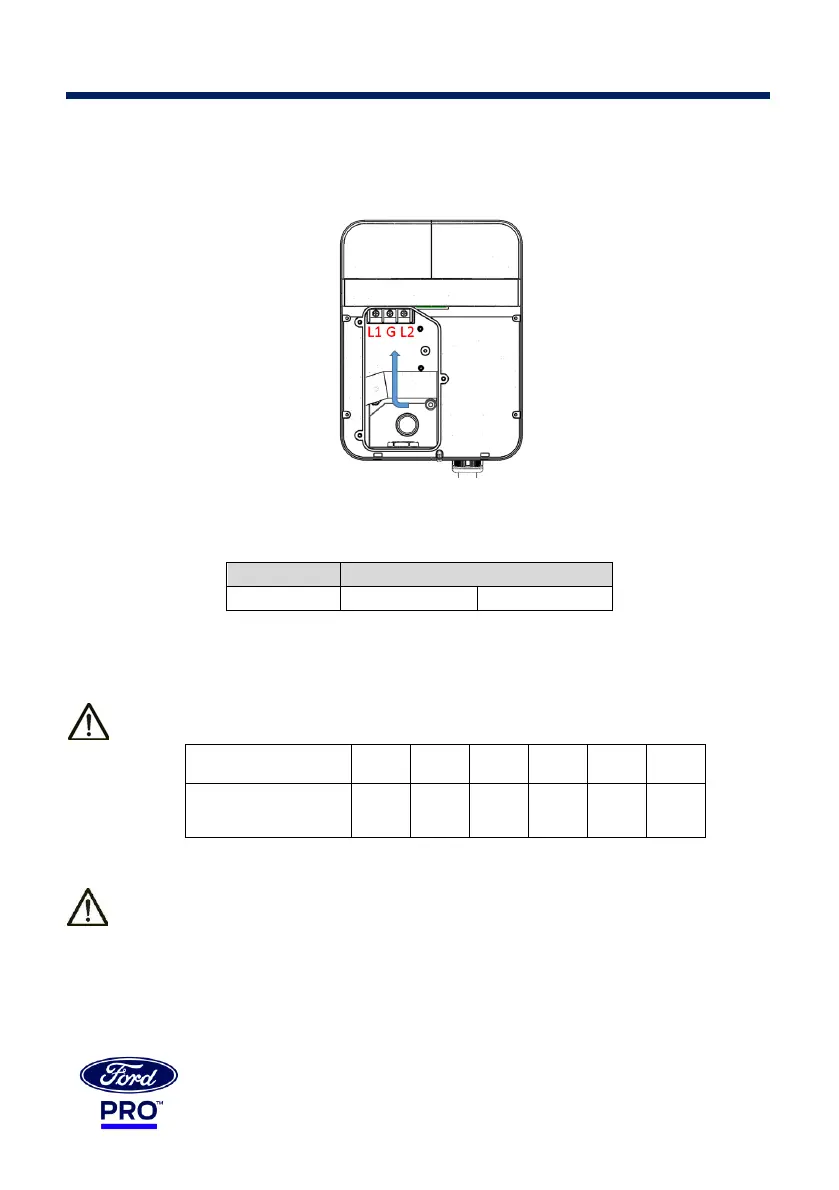

Figure 3-11 Input wiring position
2-4. Use the following torque to connect the wire terminal to the terminal
block.
2-5. Lock the conduit on the enclosure. Please refer to the following
torque.
CAUTION: To reduce the risk of fire, connect only to a circuit
provided with the required branch circuit overcurrent protection in
accordance with the National Electrical Code, ANSI/NFPA 70, and the
Canadian Electrical Code, Part I, C22.2.
Maximum Charger
Current Setpoint*
Recommended
(Typical) Circuit
Breaker Rating
See Section 3.5 for details on charger derate settings.
CAUTION: If this unit is installed outdoors, the outlet must be rated
for outdoor installation. The outlet must be installed properly to
maintain the proper NEMA rating of the enclosure.
