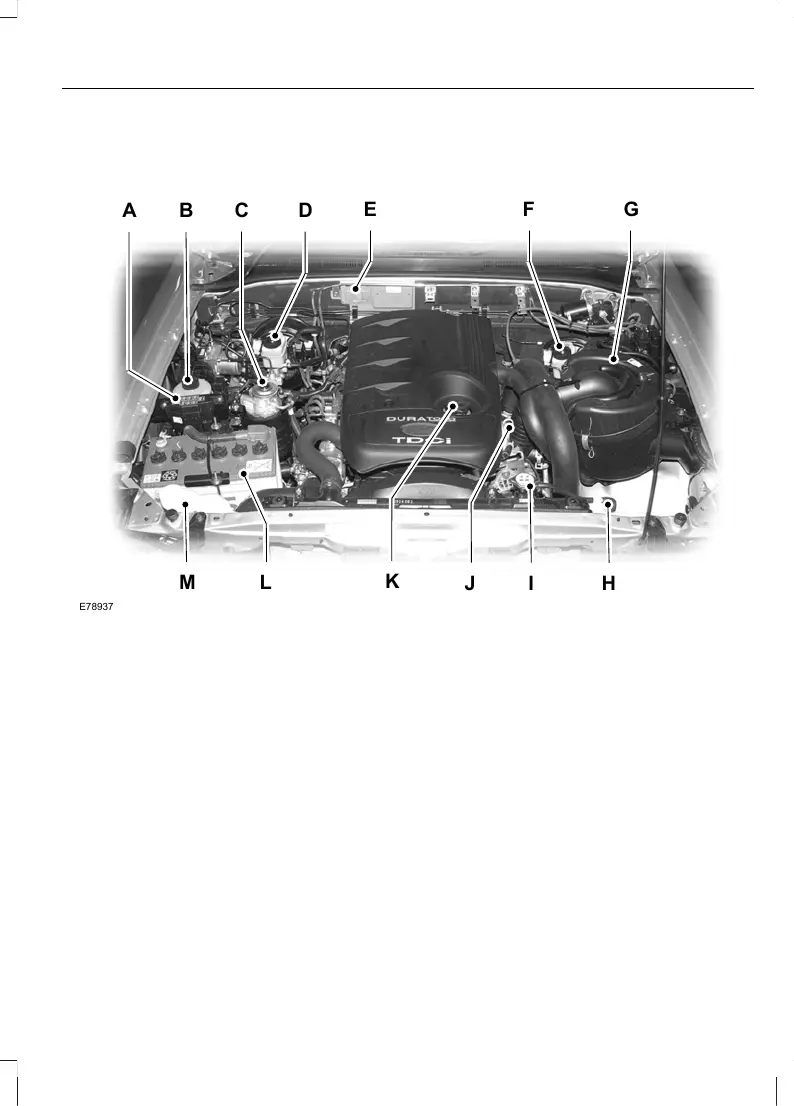

ENGINE COMPARTMENT OVERVIEW - 2.5L DURATORQ-
TDCI (WL) DIESEL/3.0L DURATORQ-TDCI (WL) DIESEL
E78937
A B
C
D
J
L
K
M
I
H
E F G
Auxiliary fuse box. See Changing a fuse (page 86).
A
Power steering fluid reservoir. See Power steering fluid check (page
97).
B
Fuel filter. See Draining the fuel filter water trap (page 98).
C
Brake and clutch fluid reservoir (right-hand drive). See Brake and clutch
fluid check (page 98).
D
Vehicle identification plate. See Vehicle identification plate (page 112).
E
Brake and clutch fluid reservoir (left-hand drive). See Brake and clutch
fluid check (page 98).
F
Air cleaner.G
Engine coolant reservoir. See Engine coolant check (page 97).
H
Coolant system cap. See Engine coolant check (page 97).
I
Engine oil dipstick. See Engine oil check (page 96).
J
Engine oil filler cap. See Engine oil check (page 96).
K
95
