Ford TAURUS 2013 - Passenger Compartment Fuse Panel

Passenger Compartment Fuse Panel

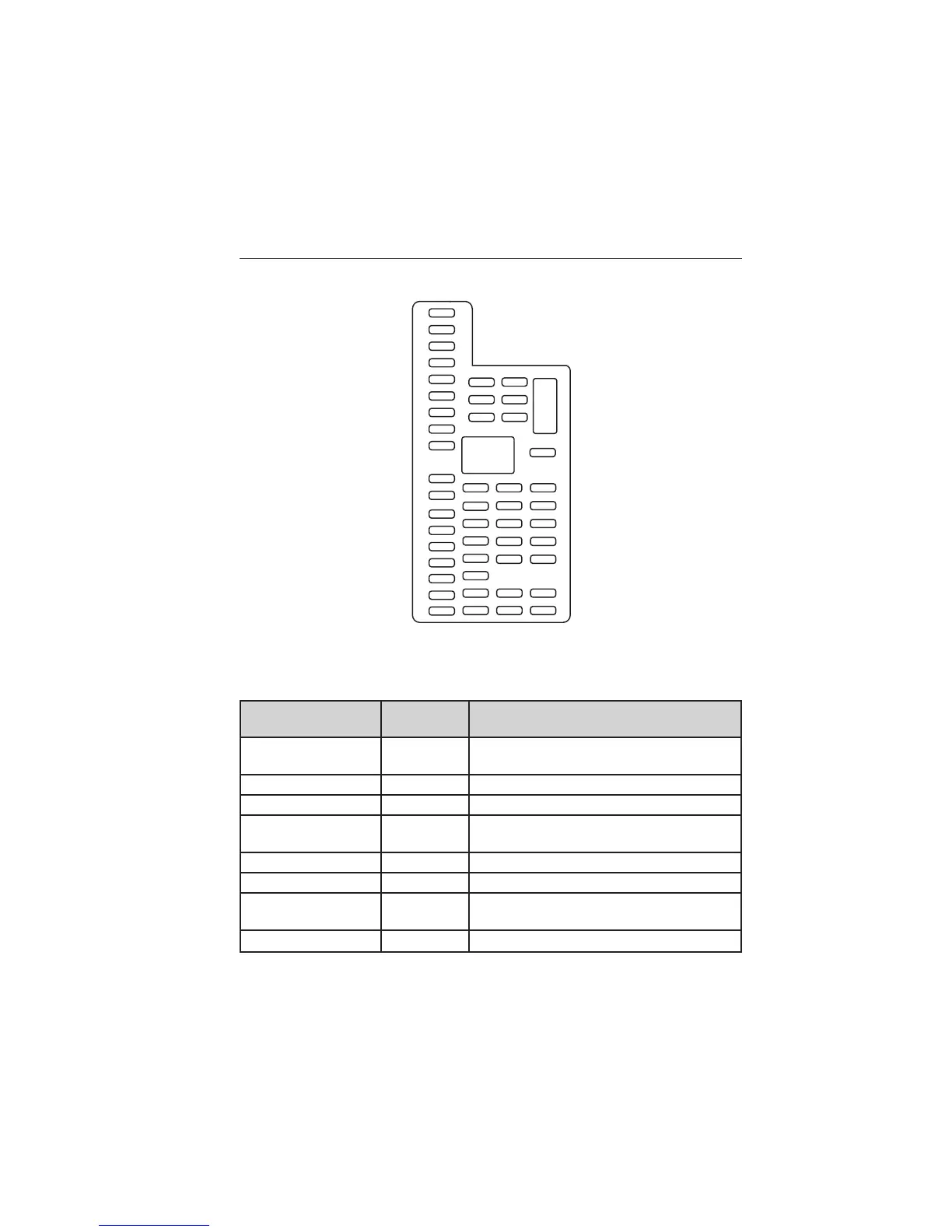

The fuse panel is located under the instrument panel to the left of the
steering wheel. You may need to remove a trim panel to access it.
The fuses are coded as follows.
Fuse or relay
number
Fuse amp
rating
Protected components
1 30A Left front and right rear smart
window motors
2 15A Driver seat switch power
3 30A Right front smart window motor
4 10A Demand lamps battery saver relay
and coil
5 20A Audio amplifiers
6 5A Not used (spare)
7 7.5A Driver seat module logic, Left front
door zone module, Keypad
8 10A Not used (spare)
